1. Introduction to Pull-Up Blast Hole Spacers

In the diverse toolkit of modern blasting engineering, the pull-up blast hole spacer (also known as a lift-type spacer, pull-cord activated spacer, hoistable air deck device, or traction-activated blast bag) represents a distinct category of air decking technology characterized by its unique activation mechanism: rather than relying on push-button valves, chemical inflation, or free-fall impact, the pull-up spacer is activated by an upward pulling motion on a dedicated cord or rope after the device has been positioned at the target depth.

This seemingly simple operational difference—pulling upward to activate rather than pushing downward or relying on automatic inflation—delivers profound practical benefits in specific blasting scenarios. The pull-up mechanism provides operators with precise control over the timing of spacer activation, eliminates the risk of premature inflation during descent, and enables rapid deployment in deep boreholes where other activation methods may prove unreliable or cumbersome.

The pull-up spacer has evolved from early manual air decking techniques where operators used ropes to hoist wooden plugs or sandbags into position, through intermediate generations of pull-cord inflatable devices, to modern precision-engineered systems that combine mechanical reliability with ergonomic efficiency. Today, pull-up spacers are standard equipment in operations ranging from Australian open-pit iron ore mines to Chinese underground coal operations, from South African gold mines to Chilean copper porphyry deposits.

This comprehensive guide provides mining engineers, blast supervisors, and field operators with an in-depth understanding of pull-up spacer technology. From the mechanical principles of lift-activation to detailed specifications, application matrices, and economic justification, this resource serves as both an educational reference and a practical implementation manual for optimizing blasting operations through intelligent air decking.

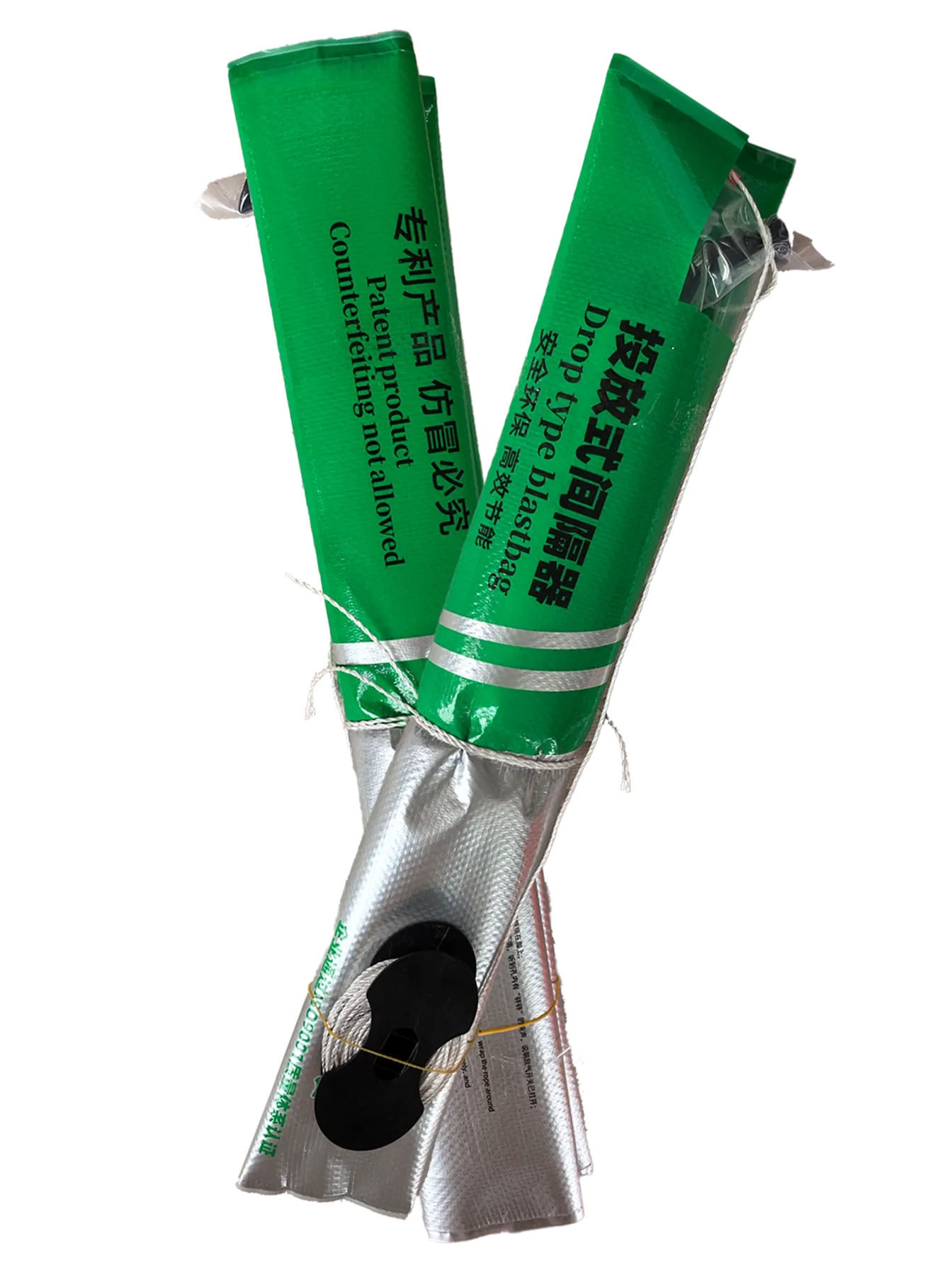

2. What Is a Pull-Up Blast Hole Spacer?

2.1 Core Definition and Functional Overview

A pull-up blast hole spacer is a specialized blast hole accessory designed to create a controlled air deck within a borehole, activated by an upward pulling force applied to a dedicated cord or traction rope after the device has been lowered to the target depth. The defining characteristic that distinguishes pull-up spacers from other categories (push-type, drop-type, and purely inflatable) is the direction of activation force: the spacer remains in a passive, collapsed, or unactivated state during descent and is triggered into its active, expanded, or locked state by deliberate upward traction.

The functional architecture of a typical pull-up spacer includes:

•Main Body Assembly: A collapsible or foldable structure that can be lowered through the borehole in a compact form and then expanded or locked into position upon activation. Body materials range from reinforced polymer fabrics and elastomeric bladders to mechanical spring-steel frameworks and folding polymer segments.

•Activation Cord / Pull Rope: A dedicated cord attached to the spacer’s internal mechanism that, when pulled upward, triggers the transition from inactive to active state. This cord is distinct from the main traction rope used for lowering and positioning.

•Traction Rope / Lowering Line: The primary rope used to lower the spacer to depth and maintain position during activation. This rope is typically marked with depth graduations and has sufficient tensile strength to support the spacer and any overlying explosive load.

•Locking / Expansion Mechanism: The internal mechanical system that converts the upward pull into radial expansion, axial locking, or bladder inflation. Common mechanisms include:

–Pull-cord valve release: A sealed valve that opens when the cord is pulled, releasing gas into an inflatable bladder

–Mechanical cam expansion: A cam or lever system that expands radially when traction is applied

–Spring-release folding: Pre-tensioned springs that deploy folding arms or segments when released by the pull cord

–Balloon-cord tension: A cord that, when pulled, stretches an elastic balloon into an expanded shape that grips the borehole wall

•Scuff Protection Layer: An outer sleeve or coating that protects the spacer body from borehole wall abrasion during lowering and activation.

2.2 Historical Development and Evolution

The pull-up spacer concept traces its origins to the earliest days of systematic air decking in blasting. Before the development of purpose-built spacers, operators created air decks by: - Lowering sandbags or gravel-filled sacks to the target depth using ropes - Hoisting wooden discs or metal plates into position with wire lines - Using simple pull-cords to release compressed air from primitive inflatable bladders

These improvised methods were labor-intensive, inconsistent, and often unreliable, but they established the fundamental principle that upward traction could be used to both position and activate a borehole barrier.

The first generation of manufactured pull-up spacers appeared in the 1980s, primarily in the form of pull-cord activated inflatable bags. These early devices used a simple mechanical valve: a sealed gas canister was connected to an inflatable bladder through a valve held closed by a pin or latch. A cord attached to the pin ran to the surface. When the operator pulled the cord, the pin retracted, the valve opened, and gas flowed into the bladder. While functional, these early designs suffered from: - Valve reliability issues (sticking, premature release, or failure to open) - Limited gas capacity (small canisters provided insufficient inflation for large holes) - Fragile pull cords (prone to breakage during lowering or activation) - Inconsistent expansion (dependent on ambient temperature and gas pressure)

The second generation, emerging in the 1990s and 2000s, incorporated: - Dual-cord systems (one for lowering, one for activation) to prevent accidental triggering - Stronger valve mechanisms with redundant seals - Larger gas canisters or chemical reaction systems for more reliable inflation - Reinforced pull cords with higher breaking strengths

The modern third-generation pull-up spacer, developed from the 2010s onward, represents a convergence of advanced materials science and precision engineering: - Integrated pull-cord actuators with ergonomic grip features and force-limiting mechanisms - Multi-chamber inflatable bladders with independent gas-tight seals - High-visibility traction ropes with embedded depth markings and wear indicators - Chemical-resistant materials compatible with diverse borehole environments - Modular designs allowing field replacement of activation components

2.3 Terminology and Related Concepts

Term Definition

Pull-Up Spacer A blast hole spacer activated by upward traction on a dedicated cord after positioning at depth

Activation Cord The dedicated cord that triggers the spacer’s transition from inactive to active state

Traction Rope The primary lowering and positioning line, distinct from the activation cord

Pull Force The upward force required to activate the spacer, typically measured in Newtons or kilograms-force

Activation Distance The length of cord pull required to fully trigger the mechanism, typically 100–500 mm

Locking Force The radial force exerted by the activated spacer against the borehole wall

Pre-Activation State The compact, inactive configuration of the spacer during lowering

Post-Activation State The expanded, locked, or inflated configuration after pull-cord activation

False Activation Accidental triggering of the spacer before reaching target depth

Activation Window The time or depth range during which the spacer can be successfully activated

Cord Tension The force maintained on the traction rope during lowering and activation

Depth Marking Graduated markings on the traction rope indicating depth in meters or feet

Air Deck The air gap created between explosive charge segments by the spacer

Charge Column The vertical assembly of explosive material within the borehole

Stemming Inert material placed above the explosive column to confine detonation gases

3. How Pull-Up Spacers Work: The Lift-Activated Mechanism

3.1 The Physics of Pull-Activation

The operational principle of the pull-up spacer relies on converting linear upward traction into radial expansion or axial locking. This conversion is achieved through several distinct mechanical approaches, each optimized for specific borehole conditions and operational requirements.

Mechanism Type 1: Pull-Cord Valve Release (Inflatable Bladder)

The most common modern pull-up spacer design uses an inflatable bladder activated by a pull-cord valve mechanism:

1.Pre-activation State: The spacer is collapsed around a central gas canister or chemical reaction chamber. The inflation valve is held closed by a mechanical latch or pin connected to the pull cord. The bladder is folded or rolled tightly around the core, presenting a minimal diameter for easy passage through the borehole.

2.Lowering Phase: The operator lowers the spacer by the traction rope to the target depth. The pull cord hangs loosely alongside the traction rope or is secured in a non-tensioned state to prevent premature activation.

3.Activation Phase: Once the spacer is at the correct depth, the operator pulls the activation cord upward. This traction disengages the latch or withdraws the pin, opening the inflation valve.

4.Inflation Phase: Gas (from a compressed canister, chemical reaction, or external source) flows into the bladder, causing it to expand radially. The expansion continues until the bladder contacts the borehole wall and establishes a seal.

5.Locking Phase: As inflation continues, the internal pressure increases, pressing the bladder firmly against the wall and creating a friction lock that resists downward or upward movement.

Mechanism Type 2: Mechanical Cam Expansion

Some pull-up spacers use a purely mechanical expansion system without inflation:

1.Pre-activation State: The spacer consists of a central body with collapsible arms or segments held in a retracted position by the pull cord.

2.Lowering Phase: The compact spacer is lowered to depth with minimal resistance.

3.Activation Phase: Upward pull on the cord releases a catch or trigger, allowing pre-tensioned springs to extend the arms radially.

4.Locking Phase: The extended arms press against the borehole wall with sufficient force to create a mechanical lock. Additional upward pull may wedge the arms more tightly.

Mechanism Type 3: Elastic Balloon Tension

A specialized variant uses an elastic balloon that is stretched into an expanded shape:

1.Pre-activation State: An elastic balloon is compressed or folded around a core, with a cord running through or around it.

2.Lowering Phase: The compact assembly is lowered to depth.

3.Activation Phase: Pulling the cord stretches the balloon into an oblate or spherical shape that is larger than the borehole diameter.

4.Locking Phase: The stretched balloon presses against the wall with elastic force, creating a seal and friction lock.

3.2 Pull Force and Activation Dynamics

The pull-up activation requires careful management of force and distance:

Parameter Typical Range Notes

Required pull force 20–100 N (2–10 kgf) Must be achievable by a single operator without excessive effort

Activation distance 100–500 mm The length of cord that must be pulled to fully trigger the mechanism

Pull speed 0.1–1.0 m/s Moderate speed ensures reliable mechanism engagement

Force after activation 0 N (cord released) Once triggered, the cord typically goes slack

Traction rope tension during activation 50–200 N Maintains spacer position while activation occurs

The pull force must be carefully calibrated: - Too low: Risk of false activation from incidental contact or vibration during lowering - Too high: Operator fatigue, risk of cord breakage, or inability to activate in deep holes where rope friction adds resistance - Variable with depth: In deep holes (>20 m), rope weight and friction may add 10–30 N to the effective pull force; mechanisms should account for this

3.3 Advantages of the Pull-Up Activation Paradigm

The pull-up mechanism offers several distinct operational advantages:

1. Precise Timing Control Unlike push-type spacers (where the operator must push a button or valve at the hole collar) or Drop-type spacers (which activate automatically upon impact), the pull-up spacer allows the operator to choose the exact moment of activation. This is critical when: - The spacer must be positioned and held at depth before activation - Multiple spacers are used in sequence and must not activate prematurely - The operator needs to verify depth and stability before committing to activation

2. Elimination of Premature Activation Risk Because the activation mechanism requires deliberate upward traction, the spacer cannot accidentally inflate or expand during descent. This is particularly valuable in: - Rough or irregular boreholes where contact with the wall might trigger push-type mechanisms - Deep holes where the weight of the lowering rope might inadvertently activate push-button valves - Operations with multiple spacers on the same rope where sequential activation is required

3. Deep Hole Compatibility The pull-up mechanism is inherently compatible with deep boreholes because: - The activation force is applied at the surface, not at depth - No complex downhole electronics or mechanisms are required - The pull cord can be any length, limited only by rope management - Gravity assists the lowering; only the activation requires operator effort

4. Tactile Feedback The operator receives immediate tactile confirmation of successful activation: - The sudden release of tension when the valve opens - The vibration or shock as mechanical arms deploy - The change in rope tension as the spacer locks against the wall

5. Simplicity and Reliability With no batteries, electronics, or complex downhole mechanisms, pull-up spacers offer: - High reliability in harsh environments - Minimal maintenance requirements - Easy field inspection and verification - Compatibility with all types of borehole conditions

4. Key Advantages of Pull-Up Spacers Over Push-Type and Inflatable Systems

4.1 Operational Control and Precision

The defining advantage of the pull-up spacer is the level of operational control it provides. By separating the lowering function (traction rope) from the activation function (pull cord), the design gives operators two independent control channels:

Control Aspect Pull-Up Spacer Push-Type Spacer Drop-Type Spacer

Activation timing Operator-controlled, any time after positioning Operator-controlled at collar Automatic at impact

Depth verification before activation Yes—can hold and verify Limited—must activate at collar No—activates on contact

Sequence control (multiple spacers) Excellent—activate in any order Moderate Poor—activate in drop order

False activation risk during lowering Very low Moderate (button contact) Low (but no control over timing)

Activation feedback to operator Tactile (cord release/tension change) Visual/audible (gas sound) None (occurs at depth)

4.2 Enhanced Safety During Lowering

Safety is paramount in blasting operations, and the pull-up mechanism contributes to safer loading procedures:

•No accidental inflation: The spacer cannot activate unless the specific activation cord is pulled, eliminating the risk of premature expansion that could jam the spacer in the hole or create a hazardous partial seal

•Controlled descent: Because the spacer remains compact until deliberately activated, it descends smoothly without the drag or buoyancy issues that can affect pre-inflated or partially inflated devices

•Retrievability before activation: If the spacer is at the wrong depth or in the wrong hole, it can be pulled back out before activation, unlike drop-type spacers that may activate on retrieval attempts

4.3 Superior Performance in Deep Holes

In deep boreholes (15–30+ meters), the pull-up spacer demonstrates clear advantages:

Deep Hole Challenge Pull-Up Spacer Solution Push-Type Limitation Drop-Type Limitation

Rope weight and friction Activation force applied at surface; no downhole force required Pushing force must overcome rope friction + valve resistance Impact force may be insufficient at depth

Depth verification Traction rope markings + independent measurement; activation only after verification Relies on rope markings alone; activation at collar No verification possible before activation

Multiple spacers per hole Each spacer has independent activation cord; can be positioned and activated sequentially Multiple push buttons at collar create confusion Sequential drop order only; no flexibility

Wall contact during lowering Compact profile minimizes contact; no activation risk Button or valve may contact wall and activate N/A

4.4 Compatibility with Multiple Spacer Installations

Some advanced blast designs require two or more spacers in a single borehole to create multiple air decks. The pull-up mechanism is ideally suited for this:

1.Lower the first spacer to the lowest target depth using the traction rope

2.Pull the first activation cord to lock the spacer in place

3.Lower the second spacer to the next target depth

4.Pull the second activation cord

5.Continue for additional spacers as required

This sequential, operator-controlled process is difficult or impossible with drop-type spacers (which would all activate on the first impact) and cumbersome with multiple push-type spacers (which require multiple buttons or valves at the collar).

4.5 Rapid Deployment Cycle

While push-type spacers may seem faster (single button press), the pull-up spacer often achieves faster total cycle times in practice because:

•No pre-inflation delay: The spacer is ready to activate instantly; no waiting for gas flow or chemical reaction

•No depth re-measurement after activation: Because activation occurs after depth verification, no post-activation adjustment is needed

•Immediate loading: Once the pull cord is released and the spacer is confirmed stable, explosive loading can commence without delay

•Reduced failure rate: The reliability of pull-activation means fewer failed installations requiring replacement and re-loading

Field data from Australian iron ore operations showed that pull-up spacers achieved 15% faster total loading cycle times compared to push-type spacers in 20-meter deep holes, primarily due to reduced failure rates and elimination of post-activation adjustment time.

4.6 Cost Efficiency and Inventory Simplification

The pull-up spacer’s mechanical simplicity translates to economic benefits:

•Lower unit cost: Fewer complex components (no buttons, external valves, or elaborate sealing mechanisms) reduce manufacturing cost

•Reduced inventory: One pull-up spacer design can serve multiple hole depths and conditions, whereas push-type spacers may require different valve configurations for different depths

•Lower failure rate: Mechanical reliability reduces the cost of replacement spacers and lost loading time

•Minimal training: The intuitive pull-to-activate concept requires less training than multi-button or multi-speed systems

5. Comparison: Pull-Up vs. Push-Type vs. Drop-Type vs. Inflatable Spacers

5.1 Comprehensive Performance Comparison Matrix

Performance Parameter Pull-Up Spacer Push-Type Spacer Drop-Type Spacer Pure Inflatable (Non-Mechanical)

Activation method Upward pull on dedicated cord Push button/valve at collar Free-fall impact External pump or gas source

Activation timing control Excellent—any time after positioning Good—at collar None—automatic at impact Good—when pump connected

False activation risk Very low Moderate Low Low

Deep hole suitability Excellent Moderate Moderate Good (requires gas supply)

Multiple spacers per hole Excellent Moderate Poor Good

Depth verification before activation Yes Limited No Yes

Retrievability before activation Yes Yes No Yes

Tactile feedback Excellent Moderate None Moderate

Mechanical complexity Low Moderate Low Moderate to high

Unit cost Low to moderate Moderate Low Moderate to high

Reliability High Moderate to high Moderate Moderate

Inflation speed Fast (1–3 sec after pull) Fast (1–3 sec) Instant on impact Slow (30–300 sec)

Seal quality Good to excellent Good to excellent Moderate Excellent

Operator training required Low Moderate Low Moderate

Equipment required None (integrated gas source) None (integrated gas source) None External pump or gas cylinder

Best application Deep holes, multiple spacers, precision control Shallow to medium holes, single spacer Shallow holes, rapid deployment Variable holes, precise pressure control

5.2 Application-Specific Selection Guide

Application Scenario Recommended Spacer Type Rationale

Deep production holes (>20 m) Pull-up Activation force independent of depth; precise control

Multiple air decks per hole Pull-up Sequential, independent activation

Precision controlled blasting Pull-up Depth verification before activation

Shallow holes (<10 m), high volume Drop-type Fastest deployment; minimal steps

Shallow to medium holes, single deck Push-type Simple one-button operation

Variable diameter, irregular walls Pure inflatable Adjustable pressure; best conformity

Wet holes with water inflow Pull-up or push-type with sealed valve Controlled activation prevents water ingress

Underground gassy mines Pull-up (non-sparking) Simple mechanism; minimal ignition risk

Training and new crews Pull-up Intuitive operation; forgiving learning curve

Remote sites, limited inventory Pull-up One design serves multiple applications

5.3 Comparative Cost Analysis per Hole

Cost Component Pull-Up Spacer Push-Type Spacer Drop-Type Spacer Pure Inflatable

Spacer unit cost $8–$20 $10–$25 $6–$15 $15–$40

Loading labor $3–$8 $4–$10 $3–$7 $8–$15

Failure/replacement rate 2–5% 5–10% 8–15% 5–10%

Explosive savings 15–30% 15–30% 10–25% 15–30%

Secondary breakage reduction 20–40% 20–40% 15–30% 20–40%

Net cost per hole -$10 to -$30 -$8 to -$25 -$5 to -$20 -$5 to -$20

Note: Negative values indicate net savings after accounting for spacer cost.

6. Technical Specifications and Sizing Chart

6.1 Standard Product Dimensions

Pull-up blast hole spacers are manufactured in a range of sizes to accommodate common borehole diameters. The following specifications represent industry-standard product lines:

Specification Parameter Standard Range Typical Values Notes

Borehole diameter compatibility 70 mm – 380 mm 90, 115, 150, 165, 200, 250, 310 mm Custom sizes available

Collapsed spacer outer diameter 35 mm – 80 mm 45, 55, 65 mm Must pass through borehole without hanging

Collapsed spacer length 400 mm – 700 mm 500, 600 mm Standard for transport and handling

Expanded diameter (activated) 80 mm – 420 mm Matches borehole diameter + 10–20 mm Oversized for wall contact and seal

Effective air gap length 1.0 m – 3.0 m 1.5, 2.0 m Adjustable via rope positioning

Unit weight (collapsed) 0.2 kg – 0.8 kg 0.3, 0.4, 0.5 kg Lightweight for easy manual handling

Bladder material (inflatable types) Synthetic elastomer EPDM, nitrile, polymer blend Gas-tight, abrasion-resistant

Scuff bag material Woven polymer fabric HDPE, PP, nylon blend High-visibility, tear-resistant

Traction rope length 15 m – 30 m 20, 25 m Marked with depth graduations every 0.5 m

Traction rope breaking strength 200 kg – 500 kg 300 kg Safety factor >10× spacer weight

Activation cord length 1.5 m – 3.0 m 2.0 m Extends from spacer body to surface

Activation cord breaking strength 50 kg – 150 kg 80 kg Must withstand pull force + safety margin

Operating temperature range -20°C to +60°C Standard grade High/low temperature variants available

Maximum inflation pressure 0.3 – 0.8 bar 0.5 bar Pressure relief prevents over-inflation

Pull force required for activation 20 – 100 N 50 N Calibrated for single-operator use

Activation distance (cord pull) 100 – 500 mm 200 mm Distance from initial pull to full activation

Gas source capacity 1 – 5 liters (expanded) 2–3 liters Sufficient for full expansion + safety margin

6.2 Activation Performance Specifications

Parameter Typical Value Notes

Time from pull to full expansion 1–5 seconds Fastest among mechanical activation types

Time from pull to seal establishment 2–10 seconds Depends on hole diameter and spacer size

Pull force consistency ±10% across temperature range Ensures reliable activation in all conditions

Activation cord elasticity <5% stretch at rated pull force Prevents excessive pull distance

False activation resistance >200 N side load without activation Spacer won’t activate from wall contact

Re-activation capability Single-use only Mechanism designed for one activation cycle

6.3 Material Specifications

Component Material Properties

Inner bladder (inflatable types) Multi-layer elastomeric film Gas-tight, flexible, puncture-resistant

Outer scuff bag Woven HDPE or PP Abrasion-resistant, UV-stable, high-visibility

Activation cord Braided polyester or Kevlar Low stretch, high strength, UV-resistant

Traction rope Braided polyester or nylon High tensile strength, low stretch, rot-resistant

Mechanical frame (non-inflatable types) Spring steel or polymer composite Fatigue-resistant, corrosion-resistant

Valve mechanism Engineering polymer or brass Precision-machined, gas-tight seal

Gas source (aerosol) Steel/aluminum canister with non-flammable gas Non-toxic, non-flammable, transport-safe

6.4 Sizing Selection Guide by Borehole Diameter

Borehole Diameter (mm) Borehole Diameter (in) Recommended Spacer Model Expanded Diameter Range (mm) Typical Application

76–90 3.0–3.5 PU-90 90–110 Small diameter, underground development

90–115 3.5–4.5 PU-115 115–140 Medium diameter, production drilling

115–150 4.5–5.9 PU-150 150–190 Standard production, quarry blasting

150–165 5.9–6.5 PU-165 165–200 Medium-large production holes

165–200 6.5–7.9 PU-200 200–240 Large diameter, open-pit production

200–250 7.9–9.8 PU-250 250–300 Large production, cast blasting

250–310 9.8–12.2 PU-310 310–370 Very large diameter, bulk explosive loading

310–380 12.2–15.0 PU-380 380–420 Specialized large-hole applications

7. Applications Across Mining, Quarrying, and Civil Engineering

7.1 Open-Pit Metal and Coal Mining

In open-pit operations, pull-up spacers excel in:

Deep Production Blasting (15–30 meter benches) - Pull-up activation is independent of hole depth, making these spacers ideal for deep holes where push-button forces would be difficult to transmit - Multiple spacers can create tiered air decks in deep holes for optimized energy distribution - Fast activation (1–3 seconds after pull) minimizes loading cycle time

Controlled Perimeter Blasting - Pre-splitting and trim blasting require precise deck placement to protect final wall integrity - The ability to verify depth before activation ensures the spacer is at the exact designed elevation - Slow, controlled pull activation allows fine adjustment if needed

Cast Blasting - In overburden removal operations, pull-up spacers help control throw direction and distance - Multiple spacers in deep cast holes enable complex energy distribution patterns

7.2 Underground Hard Rock and Coal Mining

The pull-up spacer is particularly valuable in underground environments:

Development Face Blasting (Solid Blasting) - In confined face areas, the simple pull-cord mechanism is easier to operate than push-button systems that require precise orientation - Single-detonator compliance is maintained (no multiple detonators or detonating cords needed) - Improved pull per blast and reduced socket formation compared to continuous charging - The non-metallic, antistatic construction of modern pull-up spacers complies with gassy mine regulations

Production Stoping and Ring Blasting - In sublevel stoping, pull-up spacers can be deployed in upward-angled holes where gravity complicates other activation methods - Ring blasting patterns benefit from the ability to activate spacers in any sequence - Reduced ground vibration protects underground infrastructure and support systems

Raise Development - Upward holes in raise boring benefit from pull-up activation because the operator can maintain tension on the traction rope while activating - The spacer cannot fall back down before activation, unlike drop-type spacers

7.3 Quarry Operations

Quarries benefit from pull-up spacers through:

Year-Round Consistency - Simple mechanical activation is unaffected by temperature, humidity, or dust - Minimal maintenance requirements suit quarry operations with limited technical support

Crusher Feed Optimization - Consistent air decking produces uniform fragment sizes - Reduced fines generation decreases screen blinding

Environmental Compliance Blasting - Precise deck placement maximizes vibration reduction - Documented 30–75% vibration reduction supports regulatory compliance

7.4 Civil Engineering and Construction Blasting

Tunneling and Underground Construction - Drill-and-blast tunneling in variable ground conditions benefits from the pull-up spacer’s reliability - Cross-passage excavation requires precise energy control

Dam and Hydropower Construction - Foundation excavation benefits from multiple air decks for complex energy distribution - Pull-up spacers work reliably in wet conditions common in riverbed projects

Marine and Coastal Engineering - Submerged blasting operations benefit from the pull-up mechanism’s independence from hydrostatic pressure - The activation force is applied at the surface, not affected by water depth

8. Step-by-Step Installation and Operating Procedures

8.1 Pre-Installation Preparation

1. Borehole Inspection - Measure and record depth, diameter, and inclination - Check for water, obstructions, or wall instability - Identify any collapsed sections that could prevent spacer passage

2. Spacer Selection and Verification - Select spacer size matching borehole diameter - Inspect for damage: bladder integrity, cord attachment, valve mechanism - Verify activation cord moves freely and returns to neutral position - Check traction rope depth markings for legibility - Confirm gas source is intact (for inflatable types)

3. Blast Design Review - Confirm target deck height for each hole - Identify holes requiring multiple spacers - Verify deck height is within explosive air gap sensitivity limits

4. Crew Briefing - Assign roles: hole loader, traction rope operator, activation cord operator - Establish communication signals - Review emergency procedures

8.2 Standard Installation Procedure

Step 1: Load Bottom Explosive Charge - Lower bottom explosive deck to designed depth - Ensure proper priming with detonator - Verify depth with independent measurement

Step 2: Prepare the Pull-Up Spacer - Remove from packaging - Verify activation cord is free and untangled - Confirm traction rope is securely attached - Check that activation mechanism is in the unactivated (safe) position

Step 3: Lower the Spacer to Target Depth - Grasp traction rope and lower spacer slowly into borehole - Allow gravity-assisted descent; guide to prevent twisting - Monitor depth markings as spacer descends - When approaching target depth, slow descent for precise positioning - Verify depth with independent measurement if required

Step 4: Secure the Traction Rope - Once at correct depth, secure traction rope to prevent movement - Methods: wrap around rock/timber across collar, tie to stake, or have crew member maintain tension - Ensure sufficient tension to hold position but not so tight as to restrict activation

Step 5: Activate the Spacer - Grasp the activation cord firmly - Apply smooth, steady upward pull - Continue pulling through the full activation distance (typically 100–500 mm) - Feel for the tactile feedback: sudden release of resistance, mechanical click, or vibration - For inflatable types: listen for gas flow into bladder - Maintain traction rope tension during activation to prevent spacer movement

Step 6: Verify Activation and Stability - Visually confirm expansion (if visible at collar) - Gently tug traction rope to verify spacer has locked against wall - For inflatable types: wait 10–30 seconds for full pressure buildup - Confirm no slippage or movement under tension - If activation fails or spacer slips, retrieve and replace with new unit

Step 7: Load Upper Explosive Charge - Once spacer is confirmed stable, load upper explosive deck - Lower cartridges carefully to avoid damaging spacer - For bulk explosives, ensure loading hose does not contact spacer

Step 8: Apply Stemming - Fill remaining borehole with stemming material - Compact adequately for confinement - Stemming length: 0.5–1.3 times burden distance

Step 9: Connect Initiation System - Connect detonator to surface initiation network - Verify connections and sequencing - Conduct final pattern inspection

8.3 Special Procedures for Multiple Spacers

When installing multiple pull-up spacers in a single hole:

1.Lower and activate the lowest spacer first

2.Verify its stability before proceeding

3.Lower the second spacer to the next target depth

4.Activate the second spacer

5.Continue for additional spacers

6.Ensure each deck height is within explosive air gap sensitivity

8.4 Special Procedures for Inclined and Upward Holes

Inclined Holes - Account for gravity component along the hole axis - Maintain higher traction rope tension to prevent sliding - Pull activation cord in the direction of the hole axis, not vertically

Upward Holes (Upholes) - Use spacers with enhanced wall grip or locking features - Maintain continuous tension on traction rope throughout process - Activate promptly after positioning to minimize drift - Verify stability by attempting to pull spacer downward (it should not move)

8.5 Quality Control Checklist

Check Item Verification Method Acceptance Criteria

Spacer size matches hole diameter Visual comparison, gauge Expanded diameter > hole diameter

Spacer undamaged Visual inspection No punctures, tears, or mechanism defects

Activation cord free Manual pull test Moves smoothly, no binding

Traction rope secure Tug test Supports 10× spacer weight

Depth marking legible Visual inspection Clear at 0.5 m intervals

Spacer at correct depth Rope marking + independent measure ±10 cm of design elevation

Activation successful Tactile feedback + visual Mechanism engaged, bladder expanded

Spacer stable under load Tug test + wait period No displacement after 2 minutes

Upper charge loaded correctly Depth measurement Charge top at design elevation

Stemming adequate Visual + depth measure Per blast design

9. Safety Protocols and Regulatory Compliance

9.1 Handling and Storage Safety

•Store in original packaging in cool, dry, well-ventilated magazine

•Keep away from direct sunlight, heat sources, open flames

•Separate from detonators and initiation devices

•Inspect quarterly for packaging integrity and expiration

•Do not drop, crush, or puncture

•Maintain inventory records with lot numbers

9.2 Field Safety During Loading

•Only trained, certified personnel should handle spacers

•Wear appropriate PPE: hard hat, safety glasses, hearing protection, high-visibility clothing, steel-toe boots

•Maintain clear communication between crew members

•Never force spacer into obstructed hole

•If activation fails, do not attempt field repair; replace with new unit

•Keep work area clear of unnecessary personnel during activation

9.3 Regulatory Compliance

Underground Gassy Mines - Spacer materials must be non-metallic, non-sparking, antistatic - Compliance with MSHA (USA), ATEX (EU), or equivalent standards - Inflation gas must be non-flammable and non-toxic - Documented risk assessments for ignition sources

Surface Mines and Quarries - Compliance with local blasting codes and environmental regulations - Vibration monitoring may be required for new techniques - Air overpressure and flyrock control plans

Transportation - Spacers with aerosol canisters may be classified as dangerous goods - Follow UN classification, ADR, DOT regulations - Proper labeling, packaging, and documentation

9.4 Risk Assessment Matrix

Hazard Risk Description Mitigation Strategy

Premature activation Accidental pull during lowering Keep activation cord separate from traction rope; secure cord to prevent snagging

Failed activation Mechanism jam or cord breakage Pre-inspection; smooth, steady pull; replace if failed

Spacer slippage Insufficient wall grip Verify activation success with tug test; select correct size

Borehole wall collapse Loose ground falls onto spacer Inspect hole stability; use hole liners if needed

Activation cord tangled Cord wraps around traction rope Keep cords separate during lowering; untangle before activation

Traction rope breaks Excessive load or damaged rope Inspect rope before use; use rated breaking strength

False activation from wall contact Mechanism triggers on rough wall Select false-activation-resistant design; lower slowly

Gas release in confined space Inflation gas accumulates Ensure ventilation; use non-toxic gases

Static electricity discharge Static buildup on polymer surfaces Use antistatic materials; ground equipment

10. Economic Analysis: Cost Savings and Return on Investment

10.1 Direct Cost Components per Hole

Cost/Benefit Item Conventional Continuous Charge With Pull-Up Spacer Variance

Explosive quantity 100% baseline 70–85% of baseline -15% to -30%

Explosive cost $X per hole $0.70X – $0.85X -$0.15X to -$0.30X

Spacer unit cost $0 $8–$20 +$8 to +$20

Loading labor Baseline Comparable or reduced Neutral to -15%

Loading labor cost $Y per hole $0.85Y – $1.05Y -$0.15Y to +$0.05Y

Detonator cost Baseline (1 per hole) Same (1 per hole) Neutral

Secondary breakage $Z per hole $0.50Z – $0.70Z -$0.30Z to -$0.50Z

Drilling (sub-drill reduction) Baseline depth -0.3 to -0.5 m -$5 to -$15 per hole

Hauling/loading efficiency Baseline +10–20% productivity Significant indirect benefit

10.2 Annual Operational Savings Model

Assumptions: - 200 blast holes per blast - 3 blasts per week - 150 weeks per year - Average explosive consumption: 50 kg/hole at $2.00/kg - Average hole depth: 15 m - Labor rate: $50/hour; loading time: 10 minutes/hole

Benefit Category Calculation Annual Savings

Explosive reduction (20%) 200 × 3 × 50 × 50 kg × 20% × $2.00 $600,000

Sub-drill reduction (0.4 m) 200 × 3 × 50 × 0.4 m × $50/m $600,000

Secondary breakage reduction (30%) $500/blast × 3 × 50 × 30% $22,500

Loading/hauling efficiency (15%) 5 trucks × 20 hrs × 300 days × $150/hr × 15% $675,000

Total gross annual benefits $1,897,500

Less: Spacer costs 200 × 3 × 50 × $15 -$450,000

Net annual savings $1,447,500

10.3 Return on Investment Timeline

Implementation Phase Timeline Cumulative Investment Cumulative Savings Net Position

Trial phase Months 1–2 $20,000 $0 -$20,000

Initial rollout Months 3–6 $120,000 $300,000 +$180,000

Full implementation Months 7–12 $450,000 $973,750 +$523,750

Year 1 total 12 months $450,000 $1,447,500 +$997,500

Year 2 total 24 months $900,000 $2,895,000 +$1,995,000

11. Troubleshooting and Best Practices

11.1 Common Installation Issues and Solutions

Issue Probable Cause Corrective Action Preventive Measure

Spacer fails to activate Mechanism jam; cord breakage; depleted gas source Replace spacer; do not attempt repair Pre-inspection of mechanism and gas source

Activation cord breaks during pull Excessive force; damaged cord; mechanism seized Retrieve spacer if possible; replace Inspect cord before use; apply smooth, steady pull

Spacer activates at wrong depth Premature pull; depth marking misread Retrieve if possible before full activation; replace Secure activation cord during lowering; verify depth

Spacer inflates but doesn’t seal Undersized for hole; wall too irregular Retrieve if possible; use larger spacer Measure hole diameter; select correct size

Spacer slips after loading Insufficient wall grip; smooth wall Add supplemental anchoring; replace with grip-enhanced model Tug test after activation; select appropriate model

Traction rope breaks Excessive load; damaged rope Use retrieval tool; abandon if irretrievable Pre-inspection; use rated rope

Activation cord tangled with traction rope Poor rope management during lowering Separate cords before activation Keep cords distinct during lowering; use color coding

False activation from wall contact Rough wall triggers mechanism Lower slowly; use protective sleeve Select false-activation-resistant design

11.2 Best Practices for Optimal Performance

Hole Preparation - Clean collar of loose material - Mark collar clearly with hole number and target deck height - Verify hole is free of obstructions before lowering

Spacer Handling - Carry in original packaging to collar - Avoid pre-deployment damage - Keep activation cord separate from traction rope during transport

Lowering Technique - Lower slowly and steadily - Monitor depth markings continuously - Stop immediately if resistance or snagging occurs

Activation Technique - Apply smooth, steady pull—no jerking - Pull through full activation distance - Maintain traction rope tension during activation - Wait for full expansion before loading explosives

Post-Activation Verification - Tug test to confirm stability - Visual confirmation if possible - Wait minimum 30 seconds for inflatable types

12. Frequently Asked Questions (FAQ)

Q1: What is the difference between a pull-up spacer and a push-type spacer?

A: A pull-up spacer is activated by pulling upward on a dedicated cord after the device has been positioned at depth. A push-type spacer is activated by pushing a button or valve at the hole collar, typically before or during lowering. The pull-up mechanism provides better control over activation timing, eliminates premature activation risk during lowering, and is more suitable for deep holes and multiple-spacer installations.

Q2: Can pull-up spacers be used in all borehole diameters?

A: Pull-up spacers are manufactured for borehole diameters from approximately 70 mm to 380 mm. It is essential to select the spacer model whose expanded diameter range matches or slightly exceeds the target borehole diameter. Custom sizes can often be manufactured for specialized applications outside the standard range.

Q3: How much force is required to activate a pull-up spacer?

A: Typical activation forces range from 20 to 100 Newtons (2 to 10 kgf), calibrated for comfortable single-operator use. The force is designed to be achievable by an average operator without excessive effort while being high enough to prevent false activation from incidental contact during lowering.

Q4: What happens if the activation cord breaks during pull?

A: If the cord breaks before full activation, the spacer will likely remain in its inactive state. The operator should attempt to retrieve the spacer using the traction rope. If retrieval is successful, inspect the spacer for damage and replace the activation cord if the design allows, or use a new spacer. Never load explosives onto a partially activated or unverified spacer.

Q5: Can pull-up spacers be used with multiple spacers in one hole?

A: Yes, pull-up spacers are excellent for multiple-spacer installations because each spacer has an independent activation cord. Lower and activate the lowest spacer first, verify its stability, then lower the next spacer to the next target depth, and activate it. This sequential process provides precise control over each deck.

Q6: Are pull-up spacers safe for use in underground gassy coal mines?

A: Yes, provided the spacer is constructed from non-metallic, non-sparking, antistatic materials and uses a non-flammable, non-toxic inflation gas. The simple mechanical mechanism minimizes ignition risk. Always verify compliance with MSHA, ATEX, or equivalent standards and obtain site-specific approval.

Q7: How do pull-up spacers perform in wet or water-filled holes?

A: Standard pull-up spacers can be used in wet holes if the design includes sealed valve mechanisms and water-resistant materials. However, for fully submerged or high-inflow conditions, specialized water hole pull-up spacers with enhanced sealing and ballast may be required. Consult the manufacturer’s specifications for water compatibility.

Q8: What is the typical service life or shelf life of a pull-up spacer?

A: Pull-up spacers are single-use devices consumed during the blast. Un-deployed spacers typically have a shelf life of 1–3 years when stored in original packaging under recommended conditions. Always check expiration dates and rotate inventory.

Q9: Can pull-up spacers be used with bulk explosives like ANFO or emulsion?

A: Pull-up spacers are primarily designed for cartridge explosive applications. For bulk explosives, the spacer functions as a borehole plug separating the bulk charge from the stemming or creating a mid-column air deck. Ensure the spacer is fully activated and stable before bulk loading, and prevent the loading hose from contacting or puncturing the spacer.

Q10: How do pull-up spacers affect blast vibration levels?

A: Air decking with pull-up spacers typically reduces ground vibration by 30–75% compared to continuous charges of equivalent total explosive weight. The air deck moderates initial shock intensity and distributes energy release over a longer effective time.

Q11: What training is required for crews using pull-up spacers?

A: Training should cover: component identification and inspection; lowering techniques; depth verification; activation procedures; post-activation verification; troubleshooting; and safety protocols. Most crews achieve basic competency within one shift and advanced proficiency within one week.

Q12: Can a pull-up spacer be retrieved if placed at the wrong depth?

A: Yes, if the spacer has not been activated, it can be retrieved by pulling the traction rope. Once activated, retrieval is generally not possible or practical. Always verify depth before activation.

13. Conclusion and Industry Outlook

The pull-up blast hole spacer represents a refined, field-proven solution for air decking that prioritizes operator control, mechanical simplicity, and operational reliability. By separating the lowering and activation functions into independent control channels, the pull-up design eliminates many of the failure modes and operational limitations inherent in push-type, drop-type, and purely inflatable systems.

The technology’s strengths—precise activation timing, deep hole compatibility, multiple-spacer capability, and intuitive operation—make it particularly well-suited to: - Deep production blasting in open-pit mines - Complex underground development and stoping operations - Precision controlled blasting for final wall protection - Multiple-deck blast designs requiring sequential activation - Operations where crew training time and equipment reliability are critical concerns

The economic case for pull-up spacer adoption is compelling. Documented explosive savings of 15–30%, combined with reduced secondary breakage, improved loading efficiency, and simplified inventory management, deliver return on investment within the first quarter of implementation. The mechanical simplicity of the pull-up design further reduces total cost of ownership through lower unit costs, reduced failure rates, and minimal maintenance requirements.

Looking forward, the evolution of pull-up spacer technology is likely to incorporate: - Enhanced materials: Lighter, stronger bladder materials with improved abrasion resistance - Integrated depth sensing: Embedded markers or RFID tags for automated depth verification - Ergonomic improvements: Grip-enhanced activation cords and color-coded systems for low-light conditions - Modular designs: Field-replaceable activation mechanisms and interchangeable bladder sizes - Smart integration: Compatibility with automated loading systems and remote monitoring

For blast engineers and mine operators evaluating air decking technologies, the pull-up blast hole spacer offers a compelling combination of proven performance, operational simplicity, and economic efficiency. The ability to control activation with a simple upward pull embodies the kind of practical, field-tested engineering that transforms good blast designs into consistently excellent blasting outcomes.

Related Resources and Further Reading

•Air Decking Fundamentals: Principles of Explosive Energy Distribution in Boreholes

•Blast Fragmentation Optimization Through Controlled Air Gap Design

•Ground Vibration Reduction Techniques in Surface and Underground Blasting

•Comparative Analysis of Blast Hole Spacer Activation Mechanisms

•Powder Factor Optimization and Economic Blasting in Open-Pit Mining

•Safety Standards for Non-Metallic Blast Hole Accessories in Gassy Mines

•Controlled Blasting Methods: Pre-Splitting, Cushion Blasting, and Trim Blasting

•The Role of Deck Height in Rock Fragmentation and Throw Control

•Best Practices for Deep Hole Blasting and Energy Distribution

•Training and Competency Standards for Blast Crews Using Mechanical Spacers

This guide is intended for informational and educational purposes. It does not replace site-specific blast design, safety protocols, or regulatory compliance requirements. Always consult qualified blasting professionals, explosive manufacturers, and regulatory authorities before implementing new blasting technologies or modifying existing practices.
