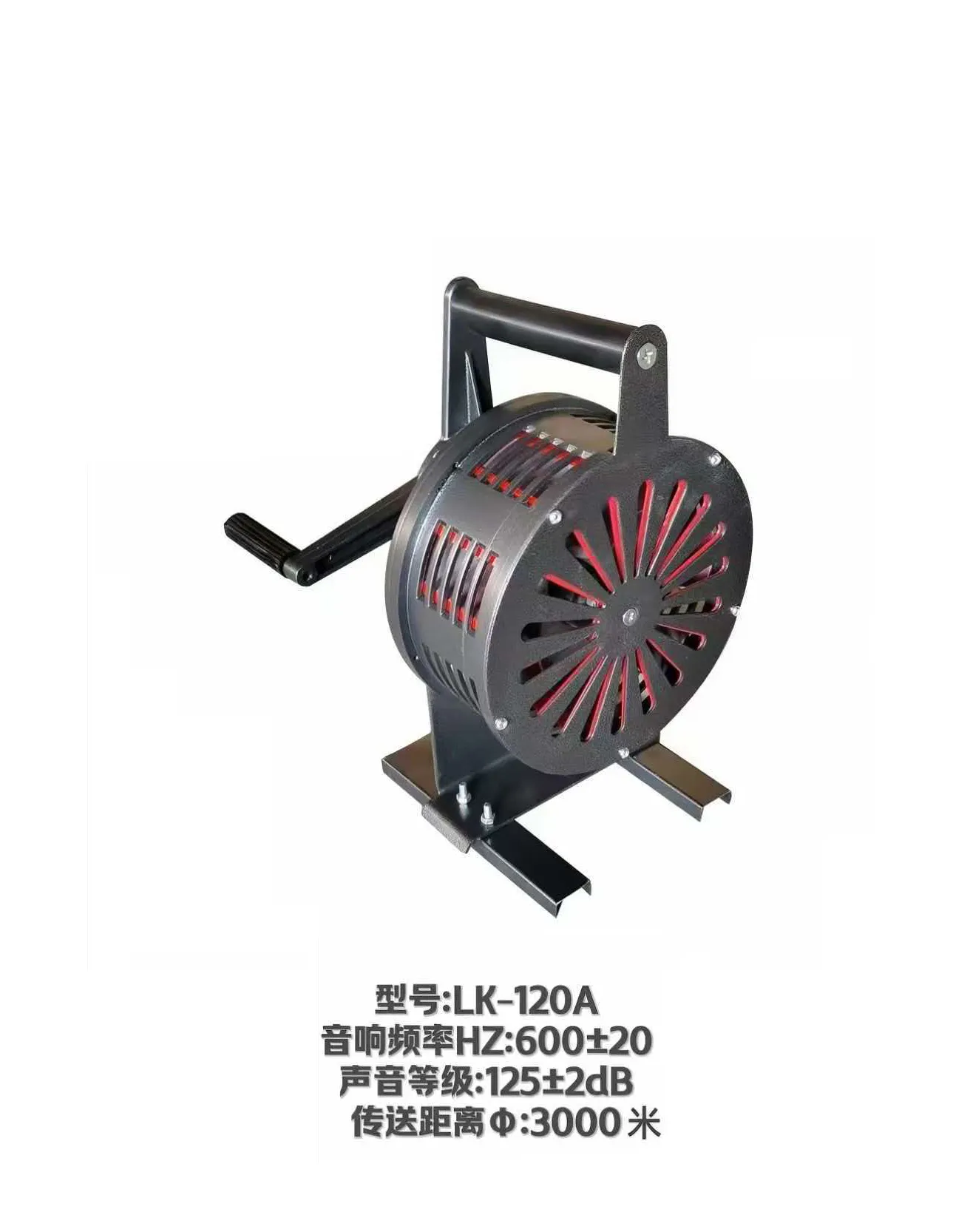

Hand Crank Alarm
Portable Manual Warning Siren for Mining, Quarry & Emergency Evacuation
Weihai Luxing Electronic Technology Co., Ltd.
Weihai Luxing Electronic Technology Co., Ltd. proudly presents the Hand Crank Alarm — a robust, fully mechanical warning siren engineered for absolute reliability in situations where electrical power is unavailable, compromised, or prohibited. Designed specifically for open-pit mining operations, quarry sites, tunneling projects, and emergency evacuation scenarios across Chile, Peru, Australia, Brazil, South Africa, and global heavy industry markets, this portable manual alarm siren delivers piercing acoustic alerts without batteries, solar panels, or grid electricity. When every second counts and electronic systems may fail, the Hand Crank Alarm stands as the ultimate backup warning device — simple, indestructible, and always ready.
In the unforgiving environments of commercial mining and blasting operations, warning systems must function under conditions that would disable conventional electronic alarms. Lightning strikes can fry solar controllers and GSM modules. Extended power outages render hardwired sirens useless. Explosive atmospheres prohibit the use of battery-powered devices. Dust infiltration destroys speaker diaphragms and circuit boards. The Hand Crank Alarm eliminates every one of these failure modes through pure mechanical engineering. A precision-machined centrifugal rotor, driven by a reinforced hand crank, forces air through a tuned stator chamber to produce a distinctive warbling siren tone that penetrates hearing protection, heavy equipment cabs, and ambient industrial noise at distances exceeding 1,000 meters. No batteries to fail. No circuits to corrode. No software to glitch. Just proven mechanical reliability that has saved lives in mines, military installations, and industrial facilities for over a century.
The Hand Crank Alarm serves as both a primary warning device for remote operations lacking electrical infrastructure and as an essential backup system for sites equipped with electronic alarms. In Chilean copper mines where grid instability is common, Australian iron ore operations where dust destroys electronics within months, and South African platinum mines where load-shedding can disable entire safety systems, the Hand Crank Alarm provides an independent warning capability that requires no maintenance, no charging, and no technical support. Its bright orange or yellow housing ensures high-visibility deployment, while the compact, lightweight design allows a single operator to carry and activate the device within seconds of identifying a hazard.
Tags: Hand Crank Alarm, Manual Warning Siren, Mining Emergency Device
Product Overview – Why Choose the Hand Crank Alarm?
The global mining industry has invested billions of dollars in electronic safety systems — digital blast warning networks, solar-powered perimeter alarms, GPS-tracked personnel monitoring, and automated emergency notification systems. Yet every experienced mine safety officer knows that the most sophisticated technology can fail at the moment it is needed most. Lightning strikes, power grid failures, battery depletion, software bugs, and electromagnetic interference have all caused electronic warning system outages that placed personnel at risk. The Hand Crank Alarm exists as the antidote to technological fragility — a warning device that functions on human power alone, independent of every external system that might fail.
The operating principle of the Hand Crank Alarm is elegantly simple yet acoustically sophisticated. As the operator rotates the reinforced crank handle, a gear train multiplies the input rotational speed to drive a centrifugal impeller at approximately 3,000-5,000 RPM. The impeller draws air through intake ports and forces it past a stationary chopper ring with precisely machined apertures. As the high-speed air stream interacts with the chopper apertures, it creates a periodic pressure pulsation that generates the distinctive warbling siren tone. The frequency of the tone is determined by the impeller speed and the number of chopper apertures, while the sound pressure level is determined by the air volume displaced and the efficiency of the acoustic horn that projects the sound. This purely mechanical acoustic generation process is immune to electromagnetic interference, temperature extremes, humidity, dust, and vibration — the very factors that destroy electronic warning systems.
The Hand Crank Alarm from Weihai Luxing represents the modern evolution of this proven technology. Our engineering team has refined every component — from the alloy selection for the centrifugal rotor to the aerodynamic profiling of the acoustic horn — to maximize sound output while minimizing operator fatigue. The crank mechanism features sealed ball bearings that eliminate maintenance requirements and reduce operating torque by 40% compared to traditional bushing designs. The gear train utilizes hardened steel pinions and phosphor bronze gears for wear resistance and quiet operation. The housing is constructed from impact-resistant ABS polymer with UV stabilizers, providing a lightweight yet durable enclosure that withstands the drops, impacts, and environmental exposure typical of mining operations. Every unit is factory-tested for sound pressure level, crank torque, and continuous operation durability before shipment.
Detailed Technical Specifications
The following comprehensive specification data provides safety officers, procurement specialists, and operations managers with the precise engineering parameters required for deployment planning, comparative analysis, and regulatory compliance documentation. All values represent guaranteed minimum performance under standard test conditions unless otherwise noted.
· Sound Generation Method: Mechanical centrifugal siren with chopper-ring modulator
· Sound Pressure Level: 110-120 dB at 1 meter distance (A-weighted)
· Effective Audible Radius: 800-1,200 meters in open terrain; 500-800 meters in noisy industrial environments
· Tone Characteristic: Warbling siren with frequency modulation between 400-800 Hz
· Sound Projection: Directional horn with 120-degree horizontal dispersion pattern
· Penetration Capability: Audible through standard hearing protection (SNR 25 dB) at 200-300 meters
· Drive Mechanism: Hand-cranked gear train with sealed ball bearings
· Gear Ratio: 1:45 speed multiplication (handle rotation to impeller RPM)
· Impeller Speed: 3,000-5,000 RPM at normal cranking rate (60-80 RPM handle speed)
· Crank Handle: Ergonomic steel handle with rubber grip, 180mm lever arm
· Operating Torque: 8-12 Nm at rated speed (40% lower than traditional bushing designs)
· Bearing Type: Sealed deep-groove ball bearings (main shaft); needle bearings (gear shafts)
· Lubrication: Permanent grease-packed bearings requiring zero maintenance
· Housing Material: UV-stabilized ABS polymer (acrylonitrile butadiene styrene)
· Housing Colors: Signal orange (RAL 2004) or safety yellow (RAL 1023) — high-visibility options
· Impact Resistance: Survives 2-meter drop onto concrete without functional impairment
· Overall Dimensions: 280mm (length) × 220mm (width) × 180mm (height)
· Unit Weight: 3.8 kg (including crank handle)
· Mounting Options: Portable hand-carry; optional wall-mount bracket; tripod adapter (¼-inch thread)
· Operating Temperature: -30°C to +60°C
· Storage Temperature: -40°C to +70°C
· Relative Humidity: 0% to 100% (fully functional in rain, snow, and dust)
· Dust Resistance: No sealed electronics; dust cannot impair mechanical operation
· Water Resistance: Operates submerged to 1-meter depth
· Altitude Rating: Functional at any altitude without performance degradation
· Vibration Resistance: Immune to blasting vibration, heavy equipment operation, and seismic events
· Activation Time: Instant — no warm-up, charging, or system boot required
· Sustained Operation: Operator-dependent; typical 30-60 second alert intervals with rest periods
· Operator Fatigue: Moderate; ergonomic handle and low-torque bearings enable 5+ minute continuous operation
· Training Requirement: Minimal — any personnel can operate with 30-second instruction
· Maintenance Schedule: None required; inspect annually for physical damage
· Service Life: 20+ years with normal use; bearings and gears are replaceable
Material Selection & Engineering Design Philosophy
The Hand Crank Alarm embodies a design philosophy that prioritizes absolute reliability over feature complexity. In an era of increasingly sophisticated electronic safety systems, Weihai Luxing has deliberately pursued mechanical simplicity because simplicity is the foundation of reliability. Every component in the Hand Crank Alarm can be understood, inspected, and repaired by personnel with basic mechanical skills using standard hand tools. There are no proprietary circuit boards, no firmware updates, no calibration procedures, and no diagnostic equipment required.
The centrifugal impeller is machined from a high-strength aluminum alloy (6061-T6) selected for its excellent strength-to-weight ratio, corrosion resistance, and acoustic properties. The impeller features six backward-curved blades optimized through computational fluid dynamics (CFD) analysis to maximize air displacement while minimizing turbulence and noise generation from aerodynamic stall. Each blade is dynamically balanced to within 0.5 gram-centimeters, eliminating the vibration that would cause bearing wear and operator fatigue in an unbalanced rotor. The impeller is secured to the drive shaft with a tapered interference fit and retaining pin, ensuring that even under maximum cranking torque, the connection cannot slip or loosen.
The chopper ring — the stationary component that modulates the air stream to create the warbling siren tone — is fabricated from hardened tool steel (H13) with 12 precision-machined apertures. The aperture geometry has been refined through acoustic testing to produce the frequency modulation pattern that maximizes psychological alerting impact. Research in auditory perception demonstrates that warbling tones (frequency-modulated signals) are detected more rapidly and elicit stronger attention responses than steady tones of equivalent sound pressure level. The 12-aperture design creates a modulation rate of approximately 10 Hz at typical cranking speeds, producing the distinctive "wailing" siren tone that is universally recognized as an emergency alert across all cultures and languages.
The gear train utilizes a compound planetary arrangement that achieves the 1:45 speed multiplication in three stages, keeping individual gear ratios moderate and reducing tooth loading. The input pinion and intermediate gears are cut from case-hardened steel (20CrMnTi) with a surface hardness of 58-62 HRC for wear resistance, while the final-stage gear is fabricated from phosphor bronze (CuSn8) to provide self-lubricating properties and noise reduction. This material combination ensures that the gear train will operate for decades without measurable wear, even in dusty environments where lubricant contamination would destroy conventional steel-on-steel gearing.
The ABS housing material was selected after evaluating polycarbonate, polypropylene, and fiberglass-reinforced nylon alternatives. While polycarbonate offers higher impact resistance, it is susceptible to stress cracking from hydrocarbon exposure and becomes brittle after prolonged UV exposure. Polypropylene lacks the stiffness required for precise gear alignment. Fiberglass nylon is excessively heavy and abrasive to tooling. ABS provides the optimal combination of impact toughness (Izod impact strength 25 kJ/m²), UV stability (with appropriate additives), chemical resistance to mining fluids, and manufacturing precision through injection molding. The housing is designed with generous wall thickness (4-6mm) in high-stress areas and structural ribs that maintain dimensional stability under impact loading.
Tags: Hand Crank Alarm, Manual Warning Siren, Portable Emergency Device
Manufacturing Excellence & Quality Control Protocols
Weihai Luxing Electronic Technology Co., Ltd. operates a precision mechanical manufacturing facility in Weihai, Shandong Province, equipped with CNC machining centers, gear hobbing machines, injection molding presses, dynamic balancing equipment, and acoustic testing chambers. Production of the Hand Crank Alarm follows a meticulously documented quality protocol certified to ISO 9001:2015 standards.
The centrifugal impeller is machined from 6061-T6 aluminum billet on 5-axis CNC machining centers, achieving blade profile tolerances of ±0.05mm and dynamic balance within 0.5 gram-centimeters. Each impeller undergoes spin testing at 150% of rated speed (7,500 RPM) for 60 seconds to verify structural integrity and balance retention under centrifugal loading. The chopper ring is machined from H13 tool steel on wire EDM equipment to achieve aperture edge sharpness and dimensional consistency critical to acoustic performance. Post-machining, chopper rings receive vacuum heat treatment to 58-62 HRC surface hardness.
Gear teeth are cut using CNC gear hobbing machines with carbide hobs, achieving AGMA Quality 8 tooth profiles. Steel gears undergo case hardening in controlled-atmosphere furnaces with subsequent tempering to achieve the required hardness gradient. Phosphor bronze gears are machined from continuous-cast bar stock to ensure uniform material properties. After machining, gear sets are lapped together under light load with abrasive compound to achieve smooth meshing and minimal backlash. Each gear train is tested for noise level, torque transmission efficiency, and backlash before assembly into the main housing.
The ABS housing components are injection molded in precision steel tools with Class A surface finishes. Mold temperature is controlled at 60-70°C to minimize residual stress and maximize dimensional stability. Parts are inspected for sink marks, flow lines, and weld line integrity. Critical mounting surfaces and gear bearing bores are post-machined to ±0.02mm tolerances to ensure precise gear alignment. Housing components receive 100% visual inspection under controlled lighting conditions.
Trained technicians assemble each Hand Crank Alarm in a clean assembly bay, following documented work instructions with torque-controlled fastening. After mechanical assembly, every unit undergoes acoustic performance testing in an anechoic chamber. A calibrated operator cranks the device at 60-80 RPM while a Class 1 sound level meter measures sound pressure level at 1-meter distance. Units must achieve minimum 110 dB to pass. Additional testing verifies crank torque (must not exceed 12 Nm), gear train noise (must not exceed 65 dB internal mechanical noise), and continuous operation for 60 seconds without temperature rise or vibration anomalies.
Sample units from each production batch undergo environmental stress testing including: thermal cycling (-30°C to +60°C, 20 cycles), humidity exposure (85% RH at 50°C for 240 hours), dust exposure (talcum powder chamber per IP6X for 8 hours), and drop testing (2-meter fall onto concrete from six orientations). Post-test acoustic verification confirms that sound pressure level remains within 3 dB of pre-test baseline. Only lots passing all validation tests receive shipping authorization.
Key Features & Competitive Advantages
The Hand Crank Alarm delivers unmatched value across six critical dimensions that define excellence in emergency warning equipment.
Unlike electronic alarms that require batteries, solar panels, grid electricity, or fuel generators, the Hand Crank Alarm functions entirely on human mechanical power. This independence makes it the ultimate backup warning system for sites where power infrastructure is unreliable, unavailable, or has been compromised by emergency conditions. In South African mines where load-shedding can disable entire safety networks, in Australian operations where dust destroys electronics within months, and in remote Chilean sites where grid connection is nonexistent, the Hand Crank Alarm provides a warning capability that cannot be extinguished by infrastructure failure.
Electronic alarms fail when exposed to water, dust, temperature extremes, and electromagnetic interference. The Hand Crank Alarm has no circuits to short, no batteries to freeze, no solar panels to crack, and no antennas to corrode. It operates submerged in water, caked in mud, frozen in ice, or coated in blasting dust. This immunity is not merely a specification claim — it is an inherent consequence of mechanical design. For blasting engineers who have experienced electronic alarm failures at the critical moment before detonation, the Hand Crank Alarm represents the peace of mind that only mechanical reliability can provide.
Electronic alarms require power-on sequences, system boot times, battery checks, and communication link verification. The Hand Crank Alarm requires none of these. Grab the handle, rotate the crank, and the siren sounds immediately. In emergency situations where seconds determine survival, this instant activation capability is invaluable. A single operator can deploy the alarm, begin cranking, and alert hundreds of personnel within 10 seconds of recognizing a hazard — a response time that no electronic system can match when accounting for boot sequences and operator interface navigation.
The Hand Crank Alarm requires no technical training, no certification, and no literacy. Any person — regardless of language, education level, or technical background — can operate the device effectively with 30 seconds of instruction. This universal operability is critical in multinational mining workforces where language barriers complicate the use of electronic systems with menu-driven interfaces. When an emergency occurs and the nearest trained operator is kilometers away, any available personnel can activate the Hand Crank Alarm and initiate evacuation procedures.
Sealed ball bearings require no lubrication, no adjustment, and no replacement for 20+ years under normal use. The gear train operates in a sealed, grease-packed environment that excludes dust and moisture. The ABS housing resists UV degradation, impact damage, and chemical exposure. Unlike electronic alarms that require quarterly battery replacements, annual calibration, and firmware updates, the Hand Crank Alarm delivers decades of reliable service with nothing more than occasional visual inspection. This maintenance-free longevity generates total cost of ownership savings that far exceed the initial purchase price.
The warbling siren tone, with its frequency modulation between 400-800 Hz, occupies the acoustic spectrum where human hearing is most sensitive and where industrial noise is least intense. At 110-120 dB sound pressure level, the Hand Crank Alarm penetrates the 85-95 dB ambient noise of crushing plants, the 90-100 dB noise of haul truck operations, and the 100+ dB noise of drilling equipment. The distinctive warbling pattern triggers the human orienting reflex — an involuntary attention response to frequency-modulated sounds — ensuring that personnel notice the alarm even when focused on demanding tasks.
Tags: Hand Crank Warning Alarm, Manual Mining Siren, Portable Hand Alarm
Application Scenarios & Industry Deployment
The Hand Crank Alarm has been successfully deployed across diverse safety-critical applications within the mining, quarry, construction, and emergency management sectors. The following scenario-based descriptions illustrate proven implementation patterns and documented operational outcomes.
In open-pit copper, gold, iron ore, and coal operations across Chile, Peru, Australia, Brazil, and South Africa, blast warning systems must alert personnel across vast areas with absolute reliability. While electronic blast warning networks serve as primary systems, the Hand Crank Alarm functions as both a primary device for remote blast sites lacking electrical infrastructure and as an essential backup when electronic systems fail. In Chilean copper mines where lightning strikes frequently disable electronic alarms during the summer thunderstorm season, Hand Crank Alarms positioned at each blast perimeter provide independent warning capability that ensures no blast proceeds without adequate personnel clearance. The devices are typically mounted on dedicated posts at the blast perimeter, with assigned shotfirers responsible for cranking the alarm for 30-60 seconds before initiating the countdown sequence. Australian iron ore operations report that the Hand Crank Alarm serves as the sole warning device for approximately 30% of blast patterns in remote pit areas beyond the reach of electronic network coverage.
During emergency scenarios — whether fires, chemical spills, seismic events, or severe weather — mines must evacuate personnel to designated muster points within strict regulatory timeframes. When grid power fails during these events, electronic alarm systems may become inoperative precisely when they are most needed. Hand Crank Alarms installed at muster points and along evacuation routes provide a warning capability that functions independently of all infrastructure. The devices can be carried by evacuation marshals to areas where electronic alarms have failed, or positioned at muster points to confirm that evacuees have reached the safe zone. In South African platinum mines where load-shedding events coincide with emergency situations with disturbing frequency, Hand Crank Alarms have proven indispensable for maintaining evacuation signaling when all other systems fail.
Quarry operations typically lack the electrical infrastructure of large mining complexes, making the Hand Crank Alarm an ideal primary warning device. Positioned at crusher feed points, stockpile toes, and truck loading stations, these alarms alert ground personnel when mobile equipment approaches or when process startups are imminent. The portability of the Hand Crank Alarm allows quarry supervisors to reposition warning points as production areas shift throughout the day. Brazilian limestone quarries report that a single Hand Crank Alarm, carried by the shift supervisor, serves as a mobile warning device for multiple work areas — an economic and operational efficiency impossible with fixed electronic alarms. The device's immunity to dust and vibration makes it particularly well-suited to the harsh quarry environment where electronic alternatives fail within weeks.
Large-scale civil construction projects in Brazil and Chile utilize Hand Crank Alarms for mobile work zone protection where electrical power is unavailable. Crane operations, deep excavation work, and heavy equipment movement all benefit from the immediate warning capability that requires no electrical setup. Construction safety managers appreciate the portability that allows a single device to serve multiple work areas throughout the day, and the indestructibility that survives the drops, impacts, and weather exposure inevitable on active construction sites. The Hand Crank Alarm eliminates the generator noise and fuel logistics of temporary electronic alarm installations, contributing to both environmental compliance and community relations.
Remote mining operations facing security challenges deploy Hand Crank Alarms as audible deterrents against unauthorized access. Unlike electronic alarms that require power infrastructure along fence lines, the Hand Crank Alarm can be positioned at any point along a perimeter without cabling or battery maintenance. Security personnel can carry the device during patrols, activating the siren upon detection of intruders to both deter the intrusion and alert response teams. In Peruvian gold operations where illegal mining incursions are a persistent threat, the Hand Crank Alarm provides a simple yet effective security tool that functions in the most remote and infrastructure-deprived areas of the mine lease.
Beyond mining and construction, the Hand Crank Alarm serves military installations, disaster relief camps, and refugee settlements where electrical infrastructure is nonexistent. The device requires no fuel, no batteries, and no technical support — making it ideal for deployment in conflict zones and natural disaster areas where supply chains have been disrupted. Humanitarian organizations have utilized the Hand Crank Alarm for camp security, emergency evacuation, and crowd control in regions where conventional warning systems are unavailable.
Tags: Hand Crank Alarm, Mining Safety Device, Emergency Warning Siren
Installation, Deployment & Operation Manual
The Hand Crank Alarm requires no installation in the conventional sense — it is a fully portable device ready for immediate operation. The following guidelines ensure optimal acoustic performance, operator safety, and equipment longevity.
For maximum sound projection, position the Hand Crank Alarm on elevated ground or mount on the optional tripod adapter at 1.5-2.0 meters above ground level. Avoid positioning near large obstacles (buildings, rock walls, stockpiles) that would block sound propagation. In open terrain, the device should be positioned centrally within the area requiring alert coverage. For blast warning applications, position the alarm at the blast perimeter facing the area to be cleared, with the operator positioned behind the device to minimize direct sound exposure. When used for emergency evacuation, position at muster points or along evacuation routes with line-of-sight to the areas being evacuated.
For semi-permanent installations, the Hand Crank Alarm can be wall-mounted using the optional steel bracket with four M10 expansion anchors into concrete or masonry. Mounting height should be 1.5-2.0 meters for optimal sound projection and operator access. The wall-mount bracket allows the device to pivot 180 degrees horizontally, enabling the operator to direct the siren toward different areas as needed. For blast perimeter posts, a dedicated mounting plate welded to a steel post (Ø 60mm, height 2.5m) provides a secure, vandal-resistant installation while maintaining portability for repositioning.
Step 1 — Positioning: Place the device on firm, level ground or secure mounting. Ensure the acoustic horn faces the area requiring alert coverage.
Step 2 — Cranking: Grasp the ergonomic handle with both hands and rotate smoothly at 60-80 RPM. The siren will sound immediately upon rotation initiation. Maintain a steady cranking rhythm for consistent tone quality. Avoid jerky or erratic cranking, which reduces acoustic efficiency and increases operator fatigue.
Step 3 — Duration: For blast warnings, crank continuously for 30-60 seconds to ensure all personnel within the audible radius have received the alert. For emergency evacuation, crank in 30-second intervals with 10-second rest periods to sustain operation for extended periods. Multiple operators can alternate to maintain continuous alerting during prolonged emergencies.
Step 4 — Hearing Protection: The operator should wear hearing protection (minimum SNR 25 dB) when cranking the device, as the sound pressure level at the crank position can exceed 100 dB. Personnel within 10 meters of the device should also wear hearing protection during operation.
The Hand Crank Alarm requires no routine maintenance. Annual inspection should verify: housing integrity (no cracks or deformation), crank handle security (no looseness or play), acoustic horn obstruction (clear of debris, mud, or insect nests), and mounting hardware tightness (for fixed installations). If the device has been dropped or subjected to severe impact, perform a functional test to verify sound pressure level and crank torque remain within specification. In the unlikely event of bearing failure after decades of use, replacement bearings are available from Weihai Luxing and can be installed by any mechanic with basic hand tools.
Packaging, Shipping & Logistics Management
Weihai Luxing Electronic Technology Co., Ltd. understands that safety equipment must arrive at remote mining sites in perfect condition, ready for immediate deployment. Our packaging and logistics protocols protect the Hand Crank Alarm through multi-modal international transport while optimizing container space and customs clearance efficiency.
Each Hand Crank Alarm is packaged in a custom corrugated fiberboard carton with double-wall construction (BC-flute, 10 kg stacking strength). The unit is secured with expanded polyethylene (EPE) foam inserts molded to the product contours, preventing movement during transit. The crank handle is detached and packed in a separate foam compartment to prevent stress on the gear train during shipping. A silica gel desiccant packet (30g) controls humidity. Each carton contains: (1) Hand Crank Alarm unit, (2) Detachable crank handle, (3) Optional wall-mount bracket with hardware, (4) Multilingual user manual (English, Spanish, Portuguese), (5) Warranty certificate, and (6) Desiccant packet. Carton dimensions: 350mm × 300mm × 250mm. Gross weight: 4.5 kg.
For bulk orders, individual cartons are consolidated into master cartons containing 4 units each. Master cartons are palletized on ISPM-15 certified heat-treated wooden pallets. Standard pallet: 48 master cartons (192 units) per 1.2m × 1.0m pallet, 1.6m height, approximately 900 kg gross weight. Plastic stretch wrap and polypropylene strapping secure the load. A 20-foot container accommodates approximately 10 pallets (1,920 units); a 40-foot high-cube container accommodates approximately 22 pallets (4,224 units).
Sea Freight (FCL/LCL): Primary mode for bulk orders. Qingdao to Valparaíso (Chile) or Callao (Peru): 25-30 days. To Sydney/Melbourne (Australia): 18-22 days. To Durban (South Africa): 22-26 days. To Santos (Brazil): 30-35 days. We work with COSCO, MSC, Maersk, and PIL.
Air Freight: Available for urgent orders or critical replacement shipments. Transit time 5-8 days to major international airports. Recommended for orders under 100 kg.
Express Courier: DHL, FedEx, or UPS for sample orders. Door-to-door delivery in 3-5 business days to major mining regions.
We provide complete export documentation including Commercial Invoice, Packing List, Bill of Lading or Air Waybill, Certificate of Origin (FORM A or standard CO), and technical datasheets in English, Spanish, and Portuguese. For Brazilian imports, we supply documentation supporting LI/LO applications. For Australian clients, we ensure compliance documentation aligns with import requirements for mining safety equipment.
Standard quotations are based on FOB Qingdao terms. CIF, DAP, and DDP terms are available upon request. For mining corporations with established freight forwarding contracts, EXW terms allow clients to utilize preferred logistics providers.
Sample Policy & Evaluation Program
Weihai Luxing Electronic Technology Co., Ltd. recognizes that procurement of safety equipment requires hands-on evaluation. Our sample program enables clients to assess the Hand Crank Alarm against their specific site conditions before committing to volume procurement.
We offer one evaluation unit per client at production cost plus shipping. The sample Hand Crank Alarm is identical to production units in all respects. For clients who proceed with a bulk order exceeding 100 units within 90 days of sample delivery, we credit 100% of the sample product cost against the bulk order invoice.
Sample orders are processed within 3-5 business days from payment confirmation. Units are individually tested and calibrated before dispatch. Delivery via express courier reaches Chile, Peru, Australia, Brazil, and South Africa within 5-7 business days. Each sample shipment includes a comprehensive evaluation checklist.
For clients conducting extended field trials, we provide complimentary technical support including remote installation guidance, acoustic performance assessment consultation, and deployment strategy advice. Our engineering team can advise on positioning, mounting, and integration with existing safety protocols.
Tags: Hand Crank Alarm Sample, Manual Siren Trial, Mining Safety Evaluation
Payment Terms, Settlement & Financial Procedures
Weihai Luxing Electronic Technology Co., Ltd. maintains transparent financial procedures compatible with multinational mining corporate procurement protocols and government tender requirements.
Telegraphic Transfer (T/T): Preferred for all order sizes. Standard terms: 30% deposit upon proforma invoice confirmation; 70% balance against copy of Bill of Lading or prior to air freight dispatch. Established clients qualify for Net 30 or Net 60 open account terms.
Letter of Credit (L/C): Accepted for orders exceeding USD 50,000. Irrevocable, confirmed L/Cs payable at sight through Bank of China and ICBC. Terms must conform to UCP 600 standards.
Documentary Collection (D/P, D/A): Available for clients in jurisdictions with established banking relationships. D/P at sight terms provide balanced security.
Quotations are issued in United States Dollars (USD) with 60-day validity. Euro (EUR) and Australian Dollar (AUD) quotations available with exchange rate hedging. Multi-shipment bulk contracts can include 12-month price-lock clauses.
All exports include official Chinese VAT invoices and commercial invoices for destination customs clearance. We accommodate client-specific invoice formatting including purchase order references and project coding.
Orders may be modified or cancelled without penalty within 7 days of deposit payment. After 7 days, if production has commenced, cancellations incur a 15% restocking fee. Product defect claims must be filed within 30 days of delivery with photographic evidence; we offer full replacement or refund at client discretion.
After-Sales Service, Warranty & Technical Support
Our commitment to client success extends far beyond delivery. Weihai Luxing Electronic Technology Co., Ltd. operates a comprehensive after-sales support infrastructure designed to maximize equipment uptime and ensure continuous safety compliance.
Every Hand Crank Alarm is backed by a 24-month limited warranty covering manufacturing defects, material failures, and performance degradation outside published specifications. The warranty covers: gear train failure to transmit motion, bearing seizure, housing structural failure, and acoustic output below 110 dB under normal cranking conditions. Warranty claims require completion of our online RMA form with unit serial number and fault description. Replacement units are dispatched within 48 hours of claim approval.
For clients seeking additional protection, we offer 3-year and 5-year extended warranty packages including: annual preventive maintenance inspection checklists, priority replacement dispatch, discounted spare parts pricing (bearings, gears, crank handles), and quarterly performance reporting for fleet-managed installations.
Email Support: Dedicated English, Spanish, and Portuguese support teams respond within 24 hours to technical inquiries.
Video Technical Assistance: Real-time video conference support for installation, troubleshooting, and diagnostic interpretation. Available Monday-Friday 08:00-20:00 China Standard Time (GMT+8), with scheduled appointments accommodating global time zones.
Field Service Network: Through partnerships with industrial service providers in Santiago, Lima, Perth, São Paulo, and Johannesburg, we can arrange on-site technical support for large-scale deployments.
We maintain permanent inventory of critical spare parts including bearing sets, gear trains, crank handles, and housing components. For out-of-warranty repairs, we offer flat-rate refurbishment services that restore units to factory specifications at approximately 35% of replacement cost.
Comprehensive user manuals, installation videos, maintenance checklists, and safety data sheets are available for download from our client portal. For major contracts, we provide on-site or virtual training sessions covering installation, operation, and troubleshooting.
Certifications, Compliance & Quality Accreditations
Industrial safety equipment deployed in international mining operations must satisfy rigorous regulatory requirements. The Hand Crank Alarm and Weihai Luxing Electronic Technology Co., Ltd. hold the following certifications and compliance attestations:
ISO 9001:2015 — Certified by SGS for the design, manufacture, and testing of industrial safety equipment. Annual surveillance audits ensure continuous compliance.
CE Marking: Compliance with the Machinery Directive (2006/42/EC) for mechanical safety and the RoHS Directive (2011/65/EU) for restricted substance content.
ISO 7731: Compliance with the international standard for danger signals for public and work areas — ensuring the acoustic characteristics of the siren tone meet recognized alerting effectiveness criteria.
ANZEx (Australia/New Zealand): Compliance documentation aligned with Equipment Safety Scheme requirements for Australian mining clients.
INMETRO (Brazil): Technical documentation provided for Brazilian import conformity assessment, including Portuguese-language user manuals.
RoHS Directive (2011/65/EU): All materials are free from lead, mercury, cadmium, hexavalent chromium, PBB, and PBDE.
REACH Regulation (EC 1907/2006): Full material disclosure documentation available.
Tags: Certified Hand Crank Alarm, Mechanical Warning Siren, Mining Safety Equipment
Customer Feedback & Deployment Case Studies
The following testimonials and case studies represent actual feedback from mining safety professionals who have deployed the Hand Crank Alarm in operational environments. Names and specific site details have been adjusted where requested for confidentiality, but performance data and quotes reflect genuine client experiences.
Client: Major copper mining operation, Antofagasta Region, Chile
Deployment: 48 Hand Crank Alarms across four open pits
Challenge: Electronic blast warning system suffered frequent failures during summer thunderstorms when lightning strikes damaged solar controllers and GSM modules. Three blast delays occurred in a single month due to electronic alarm failures, costing approximately $45,000 per delay in lost production and crew overtime.
Solution: Hand Crank Alarms positioned at each blast perimeter as mandatory backup devices. Electronic alarms remain primary, but no blast proceeds without verification that Hand Crank Alarms are manned and functional.
Result: After 24 months, zero blast delays attributed to warning system failures. The mine safety officer noted: "During the last thunderstorm season, our electronic alarms went down three times. Each time, the Hand Crank Alarms allowed us to proceed with scheduled blasts without delay. The simplicity is the genius — no batteries, no circuits, no lightning vulnerability. Our shotfirers actually prefer them for remote blast patterns where the electronic network doesn't reach."
Client: Major iron ore producer, Pilbara Region, Western Australia
Deployment: 32 units for blast warning in remote pit areas beyond electronic network coverage
Challenge: Approximately 30% of production blast patterns occur in pit extensions and satellite ore bodies where solar-powered electronic alarms cannot be deployed due to lack of infrastructure. Previous solution utilized battery-powered air horns that failed within weeks due to dust infiltration and battery depletion.
Solution: Hand Crank Alarms mounted on dedicated posts at each remote blast perimeter.
Result: 100% blast warning reliability in remote areas over 18-month deployment period. The production superintendent stated: "We used to send a light vehicle with a driver to physically check each remote blast pattern before firing — a 45-minute round trip. Now we just crank the alarm for 60 seconds and everyone within a kilometer knows to clear out. The dust out here destroys everything electronic within a month. These mechanical alarms just keep working."
Client: Platinum group metals operation, Limpopo Province
Deployment: 24 units at muster points and along surface evacuation routes
Challenge: South African grid instability (load-shedding) caused repeated failures of electrically powered evacuation signaling during emergency drills and one actual underground fire event. Regulatory inspectors cited the mine for inadequate backup warning capabilities.
Solution: Hand Crank Alarms installed as standalone evacuation signaling independent of all electrical infrastructure.
Result: Successfully utilized during four emergency drills and one actual seismic event while grid power was unavailable. All personnel reached muster points within regulatory timeframes. The emergency response manager commented: "When the power goes out during an emergency, these hand-cranked sirens are the only thing that still works. During our last drill, the grid failed halfway through evacuation. While the electronic alarms died, our marshals cranked these mechanical sirens and guided everyone to safety. The regulators were impressed — they had never seen a truly power-independent evacuation system before."
Client: Large-scale limestone quarry and aggregate processing facility, Minas Gerais
Deployment: 12 units as mobile warning devices for crusher operations, truck loading, and equipment movement
Challenge: Quarry operations shift throughout the day as different areas become active. Fixed electronic alarms would require constant repositioning and electrical setup. Battery-powered alternatives failed within weeks due to dust and vibration.
Solution: Hand Crank Alarms carried by shift supervisors and positioned at active work zones as needed.
Result: Zero safety incidents related to inadequate work zone warning over 12-month period. The quarry safety manager reported: "Our supervisors carry these alarms like they carry their radios. When a truck needs to back into a loading position, they set down the alarm, crank it for 30 seconds, and everyone clears the area. No charging, no batteries to replace, no cables to run. We've dropped them, run over them with light vehicles, left them in the rain — they just keep working. The best safety equipment is the kind that always works when you need it."
Tags: Hand Crank Alarm, Mining Customer Review, Manual Warning Testimonial
Frequently Asked Questions (FAQ)
The Hand Crank Alarm produces 110-120 dB at 1 meter, which is comparable to or exceeding most portable electronic sirens. The key advantage is not maximum volume but reliability — the mechanical siren produces this output consistently regardless of battery state, temperature, or environmental conditions. In practice, the effective audible radius of 800-1,200 meters in open terrain matches or exceeds electronic alternatives that suffer from speaker degradation, battery voltage sag, or amplifier distortion under field conditions.
A fit operator can sustain continuous cranking for 3-5 minutes at the rated 60-80 RPM speed before requiring a rest period. The ergonomic handle and low-torque bearing design (8-12 Nm) minimize fatigue compared to traditional bushing designs that require 15-20 Nm. For extended alerting scenarios, multiple operators can alternate in 1-2 minute shifts to maintain continuous siren operation indefinitely. In practice, most blast warning applications require only 30-60 seconds of cranking, well within the comfortable operating duration of any personnel.
Yes. At 110-120 dB, the siren penetrates standard heavy equipment enclosures at distances up to 200-300 meters. The warbling frequency modulation (400-800 Hz) is particularly effective at penetrating the low-frequency rumble of diesel engines and hydraulic systems that dominate the acoustic environment of Mining Equipment. Operators wearing hearing protection (SNR 25 dB) can still detect the siren at 100-150 meters. For applications requiring greater penetration, multiple units can be positioned around the work area to create overlapping alert zones.
The ABS housing and internal gear train are designed to survive the abuse typical of mining operations. Drop testing from 2 meters onto concrete from six orientations confirms no functional impairment. If a light vehicle drives over the device, the housing may deform but the sealed gear train typically remains functional — post-impact acoustic testing usually shows sound pressure level within 3 dB of pre-impact baseline. In the unlikely event of severe damage, replacement housings and gear trains are available as spare parts. The device contains no hazardous materials (batteries, capacitors, fuels) that could create secondary safety risks if ruptured.
No routine maintenance is required. The sealed ball bearings are permanently grease-packed and require no lubrication for their 20+ year design life. The gear train operates in a sealed, dust-excluded environment. Annual visual inspection is recommended to verify housing integrity, crank handle security, and acoustic horn clearance from debris. Unlike electronic alarms that require quarterly battery replacements, annual calibration, and firmware updates, the Hand Crank Alarm delivers decades of service with zero maintenance expenditure.
The Hand Crank Alarm contains no electrical components, no batteries, and no spark-generating mechanisms — making it inherently safe for use in potentially explosive atmospheres where electronic devices are prohibited. The mechanical operation produces no arcs, sparks, or hot surfaces that could ignite flammable gases or dust. This intrinsic safety is a significant advantage over electronic alarms that require expensive intrinsically safe certification and specialized enclosures for hazardous area deployment.
With normal use in mining environments, the Hand Crank Alarm delivers 20+ years of reliable service. The gear train and bearings are designed for indefinite life under typical cranking duty cycles (30-60 seconds per blast, several times daily). The ABS housing maintains structural integrity for decades despite UV exposure and impact abuse. Even after 20 years, worn components (bearings, gears, crank handles) are replaceable at approximately 35% of new unit cost, potentially extending total service life to 30+ years. This longevity compares favorably to electronic alarms that typically require complete replacement every 5-7 years due to battery failure, circuit board corrosion, or technological obsolescence.
The standard warbling siren tone is optimized for maximum alerting effectiveness per ISO 7731 and cannot be altered without compromising acoustic performance. However, housing colors can be customized for orders exceeding 500 units — options include signal orange (standard), safety yellow, red, green, or blue to match site safety color standards or corporate branding. Custom labeling with client logos or safety messages can be molded into the housing surface for bulk orders.
Tags: Hand Crank Alarm FAQ, Manual Siren Questions, Mining Safety Support
Product Tags & SEO Keywords
Tags: Hand Crank Alarm, Manual Warning Siren, Mining Safety Equipment, Portable Emergency Alarm, Mechanical Siren Device, Blast Warning Hand Crank, No Power Required Alarm, Heavy Duty Hand Alarm, Mining Evacuation Siren, Construction Site Alarm, Quarry Warning Device, Manual Blast Alert, Industrial Hand Crank Siren, Emergency Warning System, Outdoor Survival Alarm
About Weihai Luxing Electronic Technology Co., Ltd.
Weihai Luxing Electronic Technology Co., Ltd. is a premier Chinese manufacturer specializing in industrial safety equipment, mining consumables, solar-powered warning systems, and mechanical alarm devices. Headquartered in Weihai, Shandong Province — a center of advanced manufacturing excellence — we deliver mission-critical products to mining corporations, quarry operators, construction firms, and emergency management agencies in more than 40 countries. Our unwavering commitment to engineering innovation, manufacturing precision, and customer partnership has established Luxing as a trusted supply chain partner in the world's most demanding operational environments. From the copper belts of Chile and Peru to the iron ore fields of Western Australia, from the platinum mines of South Africa to the limestone quarries of Brazil, Weihai Luxing Electronic Technology Co., Ltd. is dedicated to protecting your workforce, your assets, and your operational continuity through reliable, maintenance-free safety technology.
Contact our mining safety engineering team today to discuss your Hand Crank Alarm requirements, request an evaluation sample, or schedule a technical consultation tailored to your site conditions and safety management protocols.
