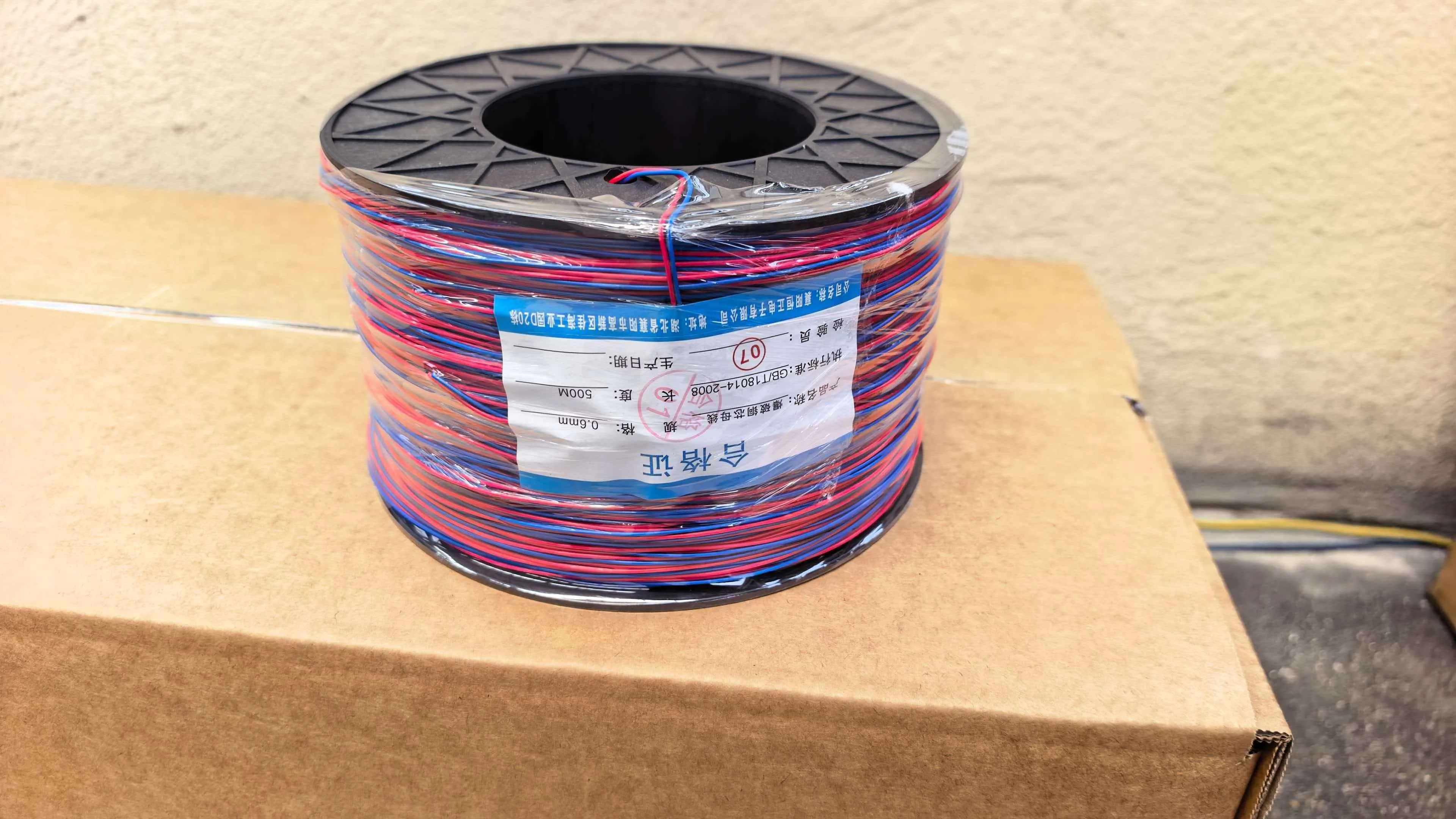

Red Blue Copper Blasting Wire
High-Conductivity Copper Core Blasting Bus Wire for Open-Pit Mining, Quarry & Civil Engineering Detonation
Weihai Luxing Electronic Technology Co., Ltd.
Weihai Luxing Electronic Technology Co., Ltd. presents the Red Blue Copper Blasting Wire — a premium-grade blasting bus wire engineered for the precise, safe, and reliable transmission of electrical initiation energy to detonators in open-pit mining, quarry blasting, tunneling operations, and civil engineering demolition projects across Chile, Peru, Australia, Brazil, South Africa, and global heavy industry markets. Manufactured from high-purity oxygen-free copper conductors and insulated with rugged PVC compounds formulated for extreme outdoor environments, this dual-color red-and-blue blasting lead wire delivers the low electrical resistance, mechanical durability, and visual circuit identification essential for modern controlled detonation practices.
In the high-stakes domain of commercial blasting, the integrity of every component in the firing circuit directly determines blast safety, timing accuracy, and fragmentation efficiency. The blasting bus wire serves as the critical electrical pathway connecting the blasting machine or exploder to the individual detonator leg wires within the blasthole. Any compromise in conductor purity, insulation integrity, or mechanical strength can result in misfires, cutoffs, or dangerous hangfires — outcomes that carry catastrophic safety, economic, and regulatory consequences. The Red Blue Copper Blasting Wire from Weihai Luxing has been meticulously engineered to eliminate these risks, providing blasting engineers and shotfirers with a conductor they can trust under the most demanding field conditions.
The distinctive red-and-blue dual-color configuration serves a critical functional purpose beyond aesthetic differentiation. In complex blast patterns involving hundreds of individual detonators arranged in series, parallel, or series-parallel circuits, color-coded conductors enable rapid visual identification of circuit polarity, series grouping, and connection verification. Red conductors typically designate the positive firing line or primary series path, while blue conductors indicate the negative return or secondary circuit branch. This color-coding system dramatically reduces wiring errors during blast preparation, accelerates circuit continuity testing, and simplifies troubleshooting when resistance measurements deviate from expected values. For multinational blasting crews operating across language barriers in Chilean copper mines, Peruvian gold operations, Australian iron ore pits, and Brazilian limestone quarries, this universal visual language transcends verbal communication limitations.
Tags: Red Blue Copper Blasting Wire, Copper Core Blasting Bus, Mining Detonator Wire
Product Overview – The Critical Role of Blasting Bus Wire in Modern Mining
Commercial blasting represents one of the most technically demanding and safety-critical operations in the mining value chain. Whether fragmenting overburden in Chilean porphyry copper deposits, breaking iron ore in Western Australia's Pilbara, or excavating tunnel headings in Brazilian hydroelectric projects, the controlled use of explosive energy requires precise electrical initiation systems that function with absolute reliability. The blasting bus wire — also known as firing line, lead wire, shotfiring cable, or detonator connecting wire — forms the backbone of these electrical initiation circuits, carrying the firing current from the blasting power source to the detonator network within the blastholes.
The Red Blue Copper Blasting Wire from Weihai Luxing addresses the full spectrum of performance requirements that define excellence in blasting conductors. Electrical performance begins with conductor material selection: we utilize oxygen-free high-conductivity (OFHC) copper with minimum 99.95% purity, achieving electrical conductivity of 100% IACS (International Annealed Copper Standard). This purity level ensures that resistance per unit length remains consistently low, minimizing voltage drop across long firing lines and ensuring that sufficient current reaches every detonator in the circuit — even in large blast patterns where the total conductor length may exceed several kilometers. Lower resistance also means reduced energy waste, allowing smaller, more portable blasting machines to reliably initiate large blast patterns.
Mechanical durability is equally critical because blasting bus wire is subjected to severe handling stresses during field deployment. Crews drag reels across rough terrain, pull conductors through abrasive rock surfaces, tension wires across blasthole collars, and occasionally drive over laid-out firing lines with light vehicles. The Red Blue Copper Blasting Wire features finely stranded copper construction (typically 19/0.25mm or 32/0.20mm stranding depending on gauge specification) that provides exceptional flexibility for coiling and uncoiling while maintaining tensile strength sufficient to withstand the pulling forces encountered during deployment. The PVC insulation compound is formulated with plasticizers that maintain flexibility across the full -20°C to +70°C temperature range, preventing the cracking and brittleness that plague inferior wires in freezing high-altitude Andean mines or scorching Australian summer conditions.
Safety considerations extend beyond electrical and mechanical performance to encompass chemical stability and fire resistance. The PVC insulation used in the Red Blue Copper Blasting Wire is compounded with flame-retardant additives that inhibit propagation of accidental ignition sources along the conductor surface. The insulation material is also resistant to the hydrocarbon-based fuels, lubricants, and hydraulic fluids commonly encountered on Mining Equipment, preventing swelling, softening, or degradation that could compromise dielectric strength. For operations in wet environments — whether from rainfall, groundwater seepage, or processing water — the insulation maintains its electrical isolation properties even when fully submerged, with insulation resistance exceeding 100 MΩ·km under standard test conditions.
Detailed Technical Specifications
The following comprehensive specification data provides blasting engineers, procurement specialists, and safety officers with the precise engineering parameters required for circuit design, comparative vendor analysis, and regulatory compliance documentation. All values represent guaranteed minimum performance under standard test conditions unless otherwise noted.
· Conductor Material: Oxygen-Free High-Conductivity (OFHC) Copper, minimum 99.95% purity
· Conductivity: 100% IACS (International Annealed Copper Standard) minimum
· Conductor Configuration: Dual-core (red + blue) parallel construction
· Stranding: 19 strands of 0.25mm diameter per conductor (19/0.25) or 32 strands of 0.20mm diameter (32/0.20) depending on gauge specification
· Nominal Cross-Sectional Area: 0.75 mm² per conductor (standard); 1.0 mm² and 1.5 mm² available upon request
· DC Resistance at 20°C: ≤ 26.0 Ω/km for 0.75 mm²; ≤ 19.5 Ω/km for 1.0 mm²; ≤ 13.3 Ω/km for 1.5 mm²
· Tensile Strength: ≥ 200 N per conductor (0.75 mm²); ≥ 270 N per conductor (1.0 mm²); ≥ 400 N per conductor (1.5 mm²)
· Elongation at Break: ≥ 25% (annealed copper)
· Insulation Material: Polyvinyl Chloride (PVC) compound with flame-retardant and UV-stabilizing additives
· Insulation Colors: Red (positive/primary circuit) and Blue (negative/secondary circuit) — standard configuration
· Insulation Thickness: 0.6 mm nominal per conductor (0.75 mm² gauge); 0.7 mm nominal (1.0 mm² and 1.5 mm² gauges)
· Insulation Resistance: ≥ 100 MΩ·km at 20°C
· Dielectric Strength: ≥ 2.0 kV AC (1 minute, 50 Hz) between conductors
· Abrasion Resistance: Passes 1,000-cycle sandpaper abrasion test per IEC 60227
· Temperature Rating: -20°C to +70°C continuous operation; +90°C short-term overload
· Flame Propagation: Self-extinguishing within 5 seconds of flame removal per IEC 60332-1
· Overall Construction: Two insulated conductors laid parallel with optional central rip cord for jacket stripping
· Outer Diameter: 3.8 mm × 6.2 mm (flat parallel configuration, 0.75 mm²); 4.2 mm × 7.0 mm (1.0 mm²); 4.8 mm × 8.0 mm (1.5 mm²)
· Overall Weight: Approximately 28 kg/km (0.75 mm²); 38 kg/km (1.0 mm²); 55 kg/km (1.5 mm²)
· Minimum Bend Radius: 6× overall cable diameter (approximately 38 mm for 0.75 mm²)
· Reel Packaging: Wooden or steel reels, 500m or 1,000m standard lengths; custom lengths available
· Maximum Firing Current: 30A per conductor (short-duration pulse, <10 ms)
· Recommended Operating Current: 1.5-3.0A for reliable detonator initiation in series circuits
· Maximum Circuit Resistance: Dependent on total wire length, detonator quantity, and connection quality; consult blast design calculations
· Stray Current Immunity: Insulation withstands induced currents from nearby power lines and radio frequency interference
· Static Electricity Resistance: Insulation surface resistivity prevents dangerous charge accumulation during unwinding and deployment
Material Selection & Engineering Design Philosophy
The Red Blue Copper Blasting Wire represents the culmination of decades of materials science research, field experience from global mining operations, and manufacturing process optimization. Every material selection decision reflects a deliberate balance between electrical performance, mechanical durability, chemical resistance, and economic value.
The choice of oxygen-free high-conductivity copper for the conductor material is fundamental to blasting wire performance. Standard electrolytic tough pitch (ETP) copper contains approximately 200-500 ppm of oxygen in the form of copper oxide inclusions. While perfectly adequate for general electrical applications, these oxide particles create localized resistance variations that can generate hot spots under the high-current pulse conditions characteristic of blasting circuits. OFHC copper, produced through vacuum melting and casting processes that reduce oxygen content below 10 ppm, eliminates these inclusions entirely. The result is a conductor with uniform microstructure, consistent resistance per unit length, and superior fatigue resistance under the mechanical vibration and thermal cycling experienced during blasting operations. For blasting engineers calculating circuit resistance to ensure all detonators receive firing current above their minimum all-fire threshold, this consistency is not merely desirable — it is essential.
The stranding configuration — 19 strands of 0.25mm diameter for the standard 0.75 mm² conductor — represents an optimized compromise between flexibility and manufacturing efficiency. Fine-strand conductors (e.g., 32/0.20mm) offer superior flexibility for applications requiring frequent coiling and uncoiling, but they increase manufacturing complexity and cost. Coarse-strand conductors (e.g., 7/0.37mm) are easier to manufacture but lack the flexibility needed for deployment across irregular terrain. The 19-strand configuration achieves a flexibility rating that allows the wire to be coiled onto 250mm diameter reels without conductor work-hardening or insulation stress cracking, while maintaining production efficiency that keeps the product economically competitive against inferior alternatives.
The PVC insulation compound is specifically formulated for outdoor mining environments rather than general-purpose indoor electrical applications. Standard PVC compounds plasticized with DOP (dioctyl phthalate) become brittle at temperatures below 0°C and soften excessively above 60°C. Our mining-grade compound utilizes a phthalate-free plasticizer system with a broader temperature stability window, maintaining flexibility down to -20°C and structural integrity up to +70°C continuous exposure. UV-stabilizing additives — specifically hindered amine light stabilizers (HALS) and benzotriazole UV absorbers — prevent the photochemical degradation that causes standard PVC to chalk, crack, and lose dielectric strength within 12-18 months of outdoor exposure. Flame-retardant additives based on aluminum trihydrate and antimony trioxide synergists provide self-extinguishing characteristics without the toxic halogenated compounds that create corrosive smoke during accidental ignition.
The red and blue colorants are selected for maximum visibility and permanence. The red masterbatch utilizes cadmium-free organic pigments (DPP-based) that achieve high chroma without the environmental and health concerns associated with heavy metal pigments. The blue masterbatch employs phthalocyanine blue pigments renowned for exceptional lightfastness — maintaining color saturation through years of UV exposure that would fade conventional dyes within months. Both colors are formulated to resist hydrocarbon staining from diesel fuel, hydraulic oil, and grease common on mining equipment, ensuring that circuit identification remains legible throughout the product lifecycle.
Tags: Copper Blasting Wire, Detonator Lead Cable, Mining Firing Line
Manufacturing Excellence & Quality Control Protocols
Weihai Luxing Electronic Technology Co., Ltd. operates a vertically integrated wire and cable manufacturing facility in Weihai, Shandong Province, equipped with continuous annealing furnaces, multi-wire drawing machines, tandem extrusion lines, spark testing equipment, and environmental simulation chambers. Production of the Red Blue Copper Blasting Wire follows a rigorously controlled multi-stage protocol certified to ISO 9001:2015 standards.
Production begins with 8mm diameter oxygen-free copper rod sourced from certified smelters with full chemical composition traceability. The rod is drawn through precision tungsten carbide dies in multiple passes with intermediate annealing in controlled-atmosphere furnaces (nitrogen/hydrogen mixture) to achieve the desired 0.25mm strand diameter while maintaining full annealing for maximum conductivity and ductility. Online eddy current testing continuously monitors for surface defects, inclusions, or diameter variations exceeding ±2% of nominal. Annealing temperature is precisely controlled at 350-400°C to achieve the optimal balance between conductivity and tensile strength — over-annealing reduces tensile strength below safe deployment levels, while under-annealing increases resistance and reduces flexibility.
Nineteen individual 0.25mm strands are assembled into the final conductor configuration using planetary stranding machines that maintain uniform tension across all strands. This uniform tension distribution prevents internal stress concentrations that could cause conductor breakage under field pulling forces. The stranded conductor undergoes DC resistance testing at 20°C to verify compliance with the ≤ 26.0 Ω/km specification. Conductors failing resistance testing are diverted to failure analysis and the entire batch is rejected.
The mining-grade PVC compound is extruded onto each conductor using tandem extrusion lines with computerized diameter control maintaining insulation thickness within ±0.05mm of the 0.6mm nominal specification. The red and blue conductors are extruded on dedicated lines with thorough purging between color changes to prevent cross-contamination. Online spark testing at 3.0 kV AC (50% higher than the specification requirement) detects any pinholes, thin spots, or insulation imperfections. The extruded conductors pass through a temperature-controlled water cooling trough and then through a capacitance monitoring station that verifies dielectric consistency.
The red and blue insulated conductors are paired in a parallel lay configuration with optional central rip cord insertion for easy jacket stripping. The paired cable undergoes comprehensive electrical testing including: conductor resistance measurement at 20°C, insulation resistance testing at 500V DC, dielectric strength testing at 2.0 kV AC for 60 seconds, and conductor continuity verification. Mechanical testing includes tensile strength verification, elongation at break measurement, and abrasion resistance testing per IEC 60227 protocols.
Finished cable is wound onto ISPM-15 certified wooden reels or heavy-duty steel reels depending on order specifications and transport mode. Tension during reeling is maintained at 50-70 N to prevent conductor deformation or insulation compression. Each reel is labeled with conductor gauge, length, batch number, production date, resistance test results, and quality inspector identification. Reels are wrapped in moisture-barrier polyethylene film and secured with steel strapping for ocean freight durability.
Key Features & Competitive Advantages
The Red Blue Copper Blasting Wire delivers measurable competitive advantages across six critical dimensions that directly impact blasting safety, operational efficiency, and total cost of ownership.
With DC resistance of ≤ 26.0 Ω/km for the 0.75 mm² gauge, the Red Blue Copper Blasting Wire minimizes voltage drop across long firing circuits. In large blast patterns where total conductor length may exceed 2-3 kilometers, this low resistance ensures that sufficient firing current reaches every detonator in the circuit — even the most distant units in series-parallel configurations. Lower resistance also permits the use of smaller, more portable blasting machines rather than heavy high-voltage units, improving field mobility and reducing equipment capital expenditure.
The red-and-blue dual-color configuration provides instantaneous visual circuit identification that transcends language barriers. In multinational blasting crews operating across Chile, Peru, Australia, Brazil, and South Africa, color coding eliminates the wiring errors that cause misfires and dangerous hangfires. Red-positive / blue-negative conventions align with international electrical standards, enabling rapid circuit continuity testing and simplifying troubleshooting when resistance measurements indicate potential faults. This color system also facilitates post-blast forensic analysis by allowing investigators to trace circuit paths even after explosive disruption.
The mining-grade PVC insulation maintains flexibility and dielectric integrity across the -20°C to +70°C temperature range encountered in high-altitude Andean mines, scorching Australian outback operations, and humid Brazilian quarries. UV stabilizers prevent the photochemical degradation that destroys standard PVC within 12-18 months of sun exposure. Flame-retardant additives provide self-extinguishing characteristics that prevent accidental fire propagation along the conductor surface. Hydrocarbon resistance ensures that contact with diesel fuel, hydraulic oil, and grease does not soften or degrade the insulation.
The finely stranded 19/0.25mm conductor construction provides exceptional flexibility for coiling, uncoiling, and routing across irregular terrain. Tensile strength of ≥ 200 N per conductor withstands the pulling forces encountered during deployment across blast patterns, while elongation at break of ≥ 25% prevents catastrophic failure under shock loading. The flat parallel configuration with rounded edges resists snagging on rock surfaces and allows smooth passage through cable guides and conduit. Unlike solid-core conductors that work-harden and fracture after repeated bending, the stranded construction maintains integrity through hundreds of deployment cycles.
Every production batch undergoes 100% electrical testing including conductor resistance, insulation resistance, and dielectric strength verification. Statistical sampling for mechanical testing ensures that tensile strength, elongation, and abrasion resistance meet specification. Complete batch traceability from copper rod source through final reel packaging enables rapid root-cause analysis in the unlikely event of field performance issues. This quality discipline ensures that blasting engineers can rely on published resistance values for accurate circuit design calculations, eliminating the safety margins required when using untested or inconsistently manufactured alternatives.
Vertical integration from copper rod processing through final packaging eliminates markup layers and ensures competitive pricing without quality compromise. Large production capacity and raw material inventory enable rapid fulfillment of urgent orders and long-term supply contracts. For mining operations requiring consistent blasting wire specifications across multi-year mine plans, Weihai Luxing provides supply security that protects against market volatility and ensures uninterrupted blasting operations.
Tags: Blasting Bus Wire, Copper Core Detonator Cable, Mine Firing Line
Application Scenarios & Industry Deployment
The Red Blue Copper Blasting Wire has been successfully deployed across diverse blasting applications within the mining, quarry, tunneling, and civil engineering sectors. The following scenario-based descriptions illustrate proven implementation patterns and documented operational outcomes.
In large-scale open-pit copper, gold, iron ore, and coal operations across Chile's Atacama Desert, Peru's Andean highlands, and Western Australia's Pilbara region, production blasting involves firing hundreds of blastholes in precisely timed sequences to achieve optimal rock fragmentation, minimal vibration, and efficient digging conditions. The Red Blue Copper Blasting Wire serves as the primary firing line connecting the portable blasting machine to the blasthole detonator network. In these applications, the wire may be deployed across distances of 1-3 kilometers from the firing point to the nearest blasthole, with additional bus wire routing between blasthole rows. The low resistance of the OFHC copper conductor ensures that even at these distances, sufficient firing current reaches the most remote detonators. The color-coded conductors enable blasting crews to rapidly verify series-parallel circuit configurations during the wiring phase, reducing blast preparation time by 15-20% compared to using monochromatic wire with tape marking. Australian iron ore clients report that the red-blue color system virtually eliminated polarity reversal errors that previously caused 2-3 misfires per month in large blast patterns.
Quarry operations in Brazil, South Africa, and Chile face unique challenges including smaller blast patterns (typically 20-100 blastholes), frequent firing cycles (daily or multiple times per week), and deployment across irregular rock surfaces with sharp edges that abrade conductor insulation. The Red Blue Copper Blasting Wire's abrasion-resistant PVC compound and robust stranded construction withstand the mechanical abuse of daily deployment and retrieval. The flat parallel configuration resists snagging on blasthole collars and rock protrusions. Quarry operators appreciate the 500m and 1,000m reel lengths that eliminate the splice connections required when using shorter wire segments, reducing potential failure points and accelerating blast setup. Brazilian limestone quarries report 30% reduction in firing line preparation time and 50% reduction in wire-related misfires following adoption of the Red Blue Copper Blasting Wire.
Underground tunneling and mine development blasting presents distinct challenges including confined spaces, high humidity, water ingress, and the need for rapid advance cycles. The Red Blue Copper Blasting Wire's PVC insulation maintains dielectric integrity even in wet headings where groundwater seepage or drilling water creates damp conditions. The flexibility of the stranded conductor allows tight routing around ventilation ducts, services lines, and temporary ground support without kinking or insulation damage. In South African platinum and gold mines, where development headings advance 3-5 meters per blast, the wire's durability through repeated coiling and uncoiling from portable reels proves critical to maintaining advance rates. The color-coded conductors simplify circuit verification in poorly lit underground environments where visual inspection is challenging.
Urban demolition, road cut blasting, and foundation excavation in populated areas require precise initiation timing to control vibration, flyrock, and air overpressure. The Red Blue Copper Blasting Wire provides the reliable electrical pathway needed for electronic detonator systems that achieve millisecond-precision delay timing. In these applications, the wire must often be routed through congested construction sites with exposure to heavy equipment traffic, concrete reinforcement, and temporary structures. The wire's mechanical durability and abrasion resistance withstand these hazards, while the flame-retardant insulation provides an additional safety margin in environments where accidental ignition sources may be present.
Presplitting and smooth wall blasting techniques create clean final excavation walls by firing closely spaced blastholes with minimal delay between adjacent charges. These techniques demand precise electrical circuit integrity because any misfire in the presplit line compromises the entire wall stability. The Red Blue Copper Blasting Wire's consistent resistance and reliable insulation ensure that every presplit hole receives identical firing energy, producing the clean fracture planes that define successful presplitting. In Chilean copper mines where final wall angles of 65-70 degrees are required for geotechnical stability, presplitting reliability directly impacts slope safety and operational economics.
Tags: Red Blue Blasting Wire, Copper Core Mining Cable, Detonator Firing Line
Installation, Deployment & Best Practices
Proper deployment of blasting bus wire is essential for blast safety, circuit reliability, and operational efficiency. The following guidelines reflect industry best practices and regulatory requirements applicable to mining and construction blasting operations worldwide.
Before each deployment, inspect the wire reel for physical damage including crushed flanges, bent axles, or loose strapping. Unwind approximately 2 meters of wire and visually inspect for insulation damage, conductor exposure, or color fading that might indicate UV degradation or chemical exposure. Perform a continuity test with a multimeter to verify that both red and blue conductors show expected resistance values (approximately 26 Ω per kilometer for 0.75 mm² gauge at 20°C). Any wire exhibiting insulation cracks, conductor corrosion, or resistance values deviating more than 5% from calculated expectations must be rejected and replaced.
Route the firing line from the blasting machine location to the blast pattern boundary, maintaining minimum 50-meter separation from charged blastholes during the wiring phase. Use wooden stakes, sandbags, or cable guides to elevate the wire above ground level where vehicle traffic or foot traffic might cause damage. Avoid routing across sharp rock edges; if unavoidable, protect the wire with rubber mats or wooden battens. Maintain gentle bend radii (minimum 6× cable diameter, approximately 38 mm for 0.75 mm² gauge) to prevent conductor work-hardening and insulation stress cracking. When crossing haul roads or access routes, bury the wire in a shallow trench (minimum 150mm depth) or protect with heavy-duty cable ramps rated for mining vehicle loads.
Strip approximately 25mm of insulation from the wire ends using the integrated rip cord or a cable stripping tool. Twist the exposed copper strands tightly to prevent fraying. Connect to detonator leg wires using approved blasting connectors or twisted-splice connections with insulating tape. Ensure polarity consistency: red conductor to positive leg wire (typically the longer leg wire on standard electric detonators) and blue conductor to negative leg wire. In series-parallel circuits, maintain color consistency throughout all series branches to facilitate continuity testing and troubleshooting. After all connections are complete, perform a full circuit resistance measurement and compare against the calculated value. Discrepancies exceeding 10% indicate a potential connection fault, short circuit, or open circuit that must be resolved before firing.
After firing, allow the statutory waiting period (typically 15-30 minutes) before approaching the blast area to retrieve firing lines. Inspect retrieved wire for insulation damage from flyrock, ground movement, or explosive effects. Cut off any damaged sections. Clean mud and debris from the wire surface. Coil the wire onto the reel maintaining even layering to prevent tangling and conductor deformation. Store reels in a dry, covered area away from direct sunlight, chemical storage, and heat sources. Properly maintained blasting wire can provide reliable service through 50-100 deployment cycles depending on handling care and environmental severity.
Packaging, Shipping & Logistics Management
Weihai Luxing Electronic Technology Co., Ltd. understands that blasting supplies must arrive at remote mining sites in perfect condition, on schedule, and with complete regulatory documentation. Our packaging and logistics protocols protect the Red Blue Copper Blasting Wire through multi-modal international transport while optimizing container space and customs clearance efficiency.
Standard packaging utilizes ISPM-15 certified heat-treated wooden reels with steel flanges for structural rigidity. Reel dimensions are optimized for container loading: 500m reels (approximately 14 kg net weight, 320mm flange diameter, 220mm barrel diameter) and 1,000m reels (approximately 28 kg net weight, 400mm flange diameter, 220mm barrel diameter). Each reel is wrapped in moisture-barrier polyethylene film to prevent humidity ingress during ocean transit. Steel strapping secures the film wrap and prevents reel unwinding. Reel flanges are labeled with conductor gauge, length, batch number, production date, resistance test results, quality inspector identification, and handling instructions.
For bulk orders, reels are palletized on standard 1.2m × 1.0m wooden pallets with corner boards and stretch wrap protection. A 20-foot container accommodates approximately 400 reels of 500m length (200,000 meters total) or 200 reels of 1,000m length (200,000 meters total). A 40-foot high-cube container accommodates approximately 900 reels of 500m length or 450 reels of 1,000m length. Container weight limits (typically 21,500 kg for 20-foot, 26,500 kg for 40-foot) are respected to avoid overweight penalties and handling difficulties at destination ports.
Sea Freight (FCL/LCL): Primary mode for bulk orders. Qingdao Port to Valparaíso (Chile) or Callao (Peru): 25-30 days transit. To Sydney/Melbourne (Australia): 18-22 days. To Durban (South Africa): 22-26 days. To Santos (Brazil): 30-35 days. We maintain shipping agreements with COSCO, MSC, Maersk, and PIL.
Air Freight: Available for urgent orders or critical replacement shipments. Transit time 5-8 days to major international airports. Recommended for orders under 200 kg or time-sensitive blasting program requirements.
Express Courier: DHL, FedEx, or UPS for sample orders, technical documentation, and small replacement quantities. Door-to-door delivery in 3-5 business days to major mining regions.
We provide complete export documentation including Commercial Invoice, Packing List, Bill of Lading or Air Waybill, Certificate of Origin (FORM A or standard CO), and technical datasheets in English, Spanish, and Portuguese. For Brazilian imports, we supply documentation supporting LI/LO (Licença de Importação/Licença de Operação) applications. For Australian clients, we ensure compliance documentation aligns with import requirements for mining consumables.
Standard quotations are based on FOB Qingdao terms. CIF, DAP, and DDP terms are available upon request. For mining corporations with established freight forwarding contracts, EXW terms allow clients to utilize preferred logistics providers.
Sample Policy & Evaluation Program
Weihai Luxing Electronic Technology Co., Ltd. recognizes that procurement of blasting consumables requires empirical validation against site-specific requirements. Our sample evaluation program enables blasting engineers to assess conductor performance before committing to volume procurement.
We offer one evaluation reel per client at production cost plus shipping. Sample reels are 500m length, fully production-representative units with identical materials, construction, and testing as volume-manufactured products. For clients who proceed with a bulk order exceeding 10,000 meters within 90 days of sample delivery, we credit 100% of the sample product cost against the bulk order invoice.
Sample orders are processed within 3-5 business days from payment confirmation. Each sample reel undergoes full electrical and mechanical testing before dispatch. Express courier delivery reaches Chile, Peru, Australia, Brazil, and South Africa within 5-7 business days. Sample shipments include a comprehensive evaluation checklist covering resistance verification, insulation integrity assessment, flexibility testing, and deployment handling evaluation.
For clients conducting field evaluations, we provide complimentary technical support including circuit design consultation, resistance calculation assistance, and blast pattern wiring optimization guidance. Our blasting engineering team can advise on conductor gauge selection, circuit configuration, and compatibility with specific detonator types and blasting machines.
Tags: Blasting Wire Sample, Copper Core Cable Trial, Mining Detonator Wire
Payment Terms, Settlement & Financial Procedures
Weihai Luxing Electronic Technology Co., Ltd. maintains transparent financial procedures compatible with multinational mining corporate procurement protocols and government tender requirements.
Telegraphic Transfer (T/T): Preferred for all order sizes. Standard terms: 30% deposit upon proforma invoice confirmation; 70% balance against copy of Bill of Lading or prior to air freight dispatch. Established clients with satisfactory trade history qualify for Net 30 or Net 60 open account terms.
Letter of Credit (L/C): Accepted for orders exceeding USD 50,000. Irrevocable, confirmed L/Cs payable at sight through Bank of China and ICBC. Terms must conform to UCP 600 standards.
Documentary Collection (D/P, D/A): Available for clients in jurisdictions with established banking relationships. D/P at sight terms provide balanced security.
Quotations are issued in United States Dollars (USD) with 60-day validity. Euro (EUR) and Australian Dollar (AUD) quotations available with exchange rate hedging. Multi-shipment bulk contracts can include 12-month price-lock clauses protecting against copper and PVC resin volatility.
All exports include official Chinese VAT invoices and commercial invoices for destination customs clearance. We accommodate client-specific invoice formatting including purchase order references and project coding.
Orders may be modified or cancelled without penalty within 7 days of deposit receipt. After 7 days, if production has commenced, cancellations incur a 15% material allocation fee. Product defect claims must be filed within 30 days of delivery with photographic evidence; we offer full replacement or refund at client discretion.
After-Sales Service, Warranty & Technical Support
Our client partnership extends across the entire product lifecycle. Weihai Luxing Electronic Technology Co., Ltd. operates a comprehensive after-sales infrastructure designed to maximize product value, minimize operational disruptions, and ensure continuous blasting safety compliance.
Every reel of Red Blue Copper Blasting Wire carries a 12-month limited warranty from date of delivery. Covered items include: conductor resistance exceeding published specifications; insulation resistance below 100 MΩ·km; dielectric strength failure below 2.0 kV AC; and mechanical defects including broken strands, insulation cracks, or manufacturing imperfections visible upon delivery. Warranty claims require completion of an online RMA form with reel batch number, fault description, and supporting photographs. Replacement reels are dispatched within 48 hours of claim approval for verified in-warranty failures.
Email Support: Dedicated multilingual support teams (English, Spanish, Portuguese) respond within 24 hours to technical inquiries, circuit design questions, and deployment guidance requests.
Video Technical Assistance: Real-time video conference support for circuit troubleshooting, resistance measurement interpretation, and blast pattern wiring optimization. Available Monday-Friday 08:00-20:00 China Standard Time (GMT+8), with scheduled appointments accommodating Chile, Peru, Australia, Brazil, and South African time zones.
Field Engineering Network: Partnerships with certified blasting consultants in Santiago, Lima, Perth, São Paulo, and Johannesburg enable on-site technical support for large-scale deployments, blast crew training, and circuit design review.
Comprehensive digital resources are accessible through our client portal: technical datasheets, circuit design calculators, deployment best practice guides, resistance measurement procedures, and troubleshooting flowcharts. For major contracts, we provide on-site or virtual training sessions covering conductor selection, circuit configuration, and blast safety management system integration.
Certifications, Compliance & Quality Accreditations
Industrial blasting consumables deployed across international mining jurisdictions must satisfy rigorous regulatory frameworks. The Red Blue Copper Blasting Wire and Weihai Luxing Electronic Technology Co., Ltd. maintain the following certifications and compliance attestations:
ISO 9001:2015 — Certified by SGS for the design, manufacture, and testing of industrial wire and cable products. Annual surveillance audits ensure sustained compliance with international quality management standards.
CE Marking: Compliance with the Low Voltage Directive (2014/35/EU) for electrical safety and the RoHS Directive (2011/65/EU) for restricted substance content. CE marking facilitates market access and is recognized by regulatory bodies in Chile, Peru, Brazil, and South Africa.
IEC 60227: Compliance with polyvinyl chloride insulated cables of rated voltages up to and including 450/750V — the international standard governing construction, dimensions, and test requirements for PVC insulated flexible cables.
IEC 60332-1: Flame propagation testing confirming self-extinguishing characteristics within 5 seconds of flame removal.
ANZEx (Australia/New Zealand): Compliance documentation aligned with Equipment Safety Scheme requirements for Australian mining clients.
INMETRO (Brazil): Technical documentation package provided for Brazilian import conformity assessment, including Portuguese-language technical datasheets and safety declarations.
RoHS Directive (2011/65/EU): All conductor and insulation materials are free from lead, mercury, cadmium, hexavalent chromium, PBB, and PBDE restricted substances.
REACH Regulation (EC 1907/2006): Full material composition disclosure available for SVHC verification.
Tags: Certified Blasting Wire, Copper Core Mining Cable, PVC Insulated Detonator Wire
Customer Feedback & Deployment Case Studies
The following case studies represent verified deployments of the Red Blue Copper Blasting Wire across global mining and construction blasting operations. Performance data and quotations reflect actual client experiences; specific site names have been anonymized where requested.
Client: Tier-1 copper mining operation, Antofagasta Region, Chile
Deployment: 150,000 meters annually across four open pits
Challenge: Previous blasting wire supplier delivered inconsistent resistance values (±15% batch-to-batch variation), causing blasting engineers to apply excessive safety margins in circuit design. This resulted in oversized blasting machines, higher energy consumption, and occasional misfires in distant blastholes due to underestimated resistance. Monochromatic wire with tape marking caused frequent polarity reversal errors during wiring, particularly with rotating international blasting crews.
Solution: Transition to Red Blue Copper Blasting Wire with guaranteed ±2% resistance tolerance and permanent color-coded conductors.
Result: After 18 months of deployment, the client reported elimination of polarity-related misfires, 12% reduction in blasting machine energy requirements due to accurate resistance calculations, and 20% reduction in blast preparation wiring time. The chief blasting engineer stated: "The color coding is simple but transformative. Our crews wire blast patterns faster and with zero polarity errors. The resistance consistency lets us use smaller, more portable blasting machines without safety concerns. This wire pays for itself in efficiency gains alone."
Client: Major iron ore producer, Pilbara Region, Western Australia
Deployment: 80,000 meters annually across 14 production benches
Challenge: Extreme temperatures (surface temperatures exceeding 60°C in summer) and intense UV exposure caused rapid degradation of previous PVC blasting wire, with insulation cracking and conductor oxidation visible within 8 months of deployment. Abrasion from iron ore rock surfaces created pinhole insulation defects that caused dangerous stray current paths.
Solution: Red Blue Copper Blasting Wire with UV-stabilized, abrasion-resistant mining-grade PVC insulation and oxygen-free copper conductors.
Result: Wire service life extended from 8 months to 3+ years under identical deployment conditions. Stray current incidents related to insulation defects decreased by 85%. The site blasting superintendent reported: "The previous wire was basically disposable — we replaced it twice a year. This Luxing wire has been in service for three years and the insulation still looks new. The abrasion resistance is remarkable considering the rock surfaces we drag it across daily."
Client: Platinum group metals operation, Limpopo Province
Deployment: 30,000 meters annually across development and stoping operations
Challenge: Underground headings with high humidity and water ingress caused rapid corrosion of standard copper conductors, increasing resistance and causing intermittent circuit failures. Confined spaces and poor lighting made circuit verification difficult with monochromatic wire.
Solution: Red Blue Copper Blasting Wire with corrosion-resistant OFHC copper and color-coded conductors for rapid visual verification.
Result: Circuit failures attributed to conductor corrosion decreased by 90%. Blast crew wiring time reduced by 25% due to color-coded visual identification. The mine captain commented: "In the dark and wet underground environment, being able to see red and blue instantly makes a huge difference. We used to spend 20 minutes with flashlights checking every connection. Now we verify circuits in 5 minutes. And the copper quality is clearly superior — no green corrosion after months underground."
Client: Large-scale limestone quarry and aggregate processing facility, Minas Gerais
Deployment: 45,000 meters annually
Challenge: Frequent small blast patterns (30-80 blastholes) fired 4-5 times per week required rapid wire deployment and retrieval. Previous wire lacked flexibility, kinking during coiling and creating conductor breakage points after 15-20 deployment cycles.
Solution: Red Blue Copper Blasting Wire with 19-strand fine copper construction for maximum flexibility and fatigue resistance.
Result: Wire deployment cycles increased from 15-20 to 80+ before replacement. Annual wire consumption decreased by 60%, generating significant cost savings. The quarry manager noted: "We were basically throwing away wire every month. This stranded copper wire coils and uncoils perfectly every time. We get four times the life from each reel, and the color coding helps our relatively inexperienced crews wire correctly every blast."
Tags: Red Blue Blasting Wire, Mining Customer Review, Copper Core Cable Testimonial
Frequently Asked Questions (FAQ)
Oxygen-Free High-Conductivity (OFHC) copper contains less than 10 ppm oxygen versus 200-500 ppm in standard ETP copper. This eliminates copper oxide inclusions that create localized resistance variations and hot spots under high-current firing pulses. OFHC copper provides more consistent resistance per unit length, better fatigue resistance under mechanical vibration, and superior corrosion resistance in humid or chemically aggressive environments. For blasting engineers, the consistent resistance enables accurate circuit design without excessive safety margins.
Yes. The wire is fully compatible with both electric detonators (requiring firing current) and electronic detonators (requiring low-resistance signal transmission). The low conductor resistance and consistent dielectric properties ensure reliable signal transmission for electronic initiation systems while providing adequate current capacity for electric detonator circuits. The insulation withstands the low-voltage signal levels used by electronic detonator programming equipment without signal attenuation or crosstalk.
In series-parallel blasting circuits, the red conductor typically connects the positive output of the blasting machine to the first detonator leg wire, while the blue conductor completes the circuit return path. In parallel branches, maintaining red-to-red and blue-to-blue consistency at each junction enables rapid visual verification of circuit topology. This color discipline is particularly valuable in large blast patterns with 100+ detonators where manual tracing of monochromatic wire would be impractical and error-prone.
Gauge selection depends on total circuit length, detonator quantity, and blasting machine output capacity. For typical open-pit mining blast patterns with 500m-2,000m total firing line length and 50-200 detonators, the 0.75 mm² gauge (≤ 26.0 Ω/km) provides adequate performance with most standard blasting machines. For very large patterns exceeding 3,000m or applications requiring maximum energy efficiency, the 1.0 mm² (≤ 19.5 Ω/km) or 1.5 mm² (≤ 13.3 Ω/km) gauges reduce voltage drop and permit smaller blasting machine specifications. Our technical team can provide circuit resistance calculations and gauge recommendations based on your specific blast design parameters.
Under normal handling conditions in open-pit mining, the Red Blue Copper Blasting Wire typically delivers 50-100 deployment cycles before insulation or conductor degradation necessitates replacement. Underground applications with less UV exposure and abrasive contact may achieve 100+ cycles. Quarry operations with daily deployment and retrieval typically achieve 80+ cycles due to the wire's flexibility and abrasion resistance. Factors reducing cycle life include: dragging across extremely sharp rock surfaces, driving over laid wire with heavy equipment, exposure to chemical solvents or fuels, and storage in direct sunlight between uses.
Yes. The mining-grade PVC compound is formulated with plasticizer systems selected for hydrocarbon resistance. Exposure to diesel fuel, hydraulic oil, and common mining lubricants does not cause the swelling, softening, or dielectric degradation that affects standard PVC compounds. However, prolonged immersion in hydrocarbons should be avoided, and any wire showing visible swelling or surface tackiness after chemical contact should be inspected and potentially replaced.
Yes. While red-and-blue is our standard dual-color configuration optimized for universal circuit identification, we can produce custom color combinations (e.g., red-black, yellow-blue, green-white) for orders exceeding 50,000 meters. Custom gauges including 0.5 mm², 2.0 mm², and 2.5 mm² are available for specialized applications. Reel lengths can be customized from 250m to 2,000m depending on client handling equipment and deployment preferences.
Standard minimum order quantity is 10,000 meters, typically supplied as twenty 500m reels or ten 1,000m reels. For established clients with annual supply agreements, smaller batch orders can be accommodated. Standard lead time is 15-20 days from deposit confirmation for orders up to 100,000 meters. Larger orders or custom specifications may require 25-35 days depending on raw material availability and production scheduling.
Tags: Blasting Wire FAQ, Copper Core Cable Questions, Mining Detonator Wire Support
Product Tags & SEO Keywords
Tags: Red Blue Copper Blasting Wire, Copper Core Blasting Bus, Mining Detonator Wire, PVC Insulated Blasting Cable, Mine Firing Line, Electric Detonator Wire, Flexible Copper Blasting Wire, Low Resistance Blasting Cable, Open Pit Mining Wire, Quarry Blasting Lead, Tunnel Blasting Cable, OFHC Copper Wire, Abrasion Resistant Blasting Wire, Flame Retardant Mining Cable, High Tensile Blasting Line
About Weihai Luxing Electronic Technology Co., Ltd.
Weihai Luxing Electronic Technology Co., Ltd. is a premier Chinese manufacturer specializing in industrial safety equipment, mining consumables, solar-powered warning systems, and blasting accessories. Headquartered in Weihai, Shandong Province — a center of advanced manufacturing excellence — we deliver mission-critical products to mining corporations, quarry operators, construction firms, and blasting contractors in more than 40 countries. Our unwavering commitment to materials engineering, manufacturing precision, and customer partnership has established Luxing as a trusted supply chain partner in the world's most demanding operational environments. From the copper belts of Chile and Peru to the iron ore fields of Western Australia, from the platinum mines of South Africa to the limestone quarries of Brazil, Weihai Luxing Electronic Technology Co., Ltd. is dedicated to supporting your blasting operations with reliable, high-performance consumables that maximize safety, efficiency, and operational continuity.
Contact our blasting engineering team today to discuss your Red Blue Copper Blasting Wire requirements, request an evaluation sample, or schedule a technical consultation tailored to your blast design parameters and circuit specifications.
