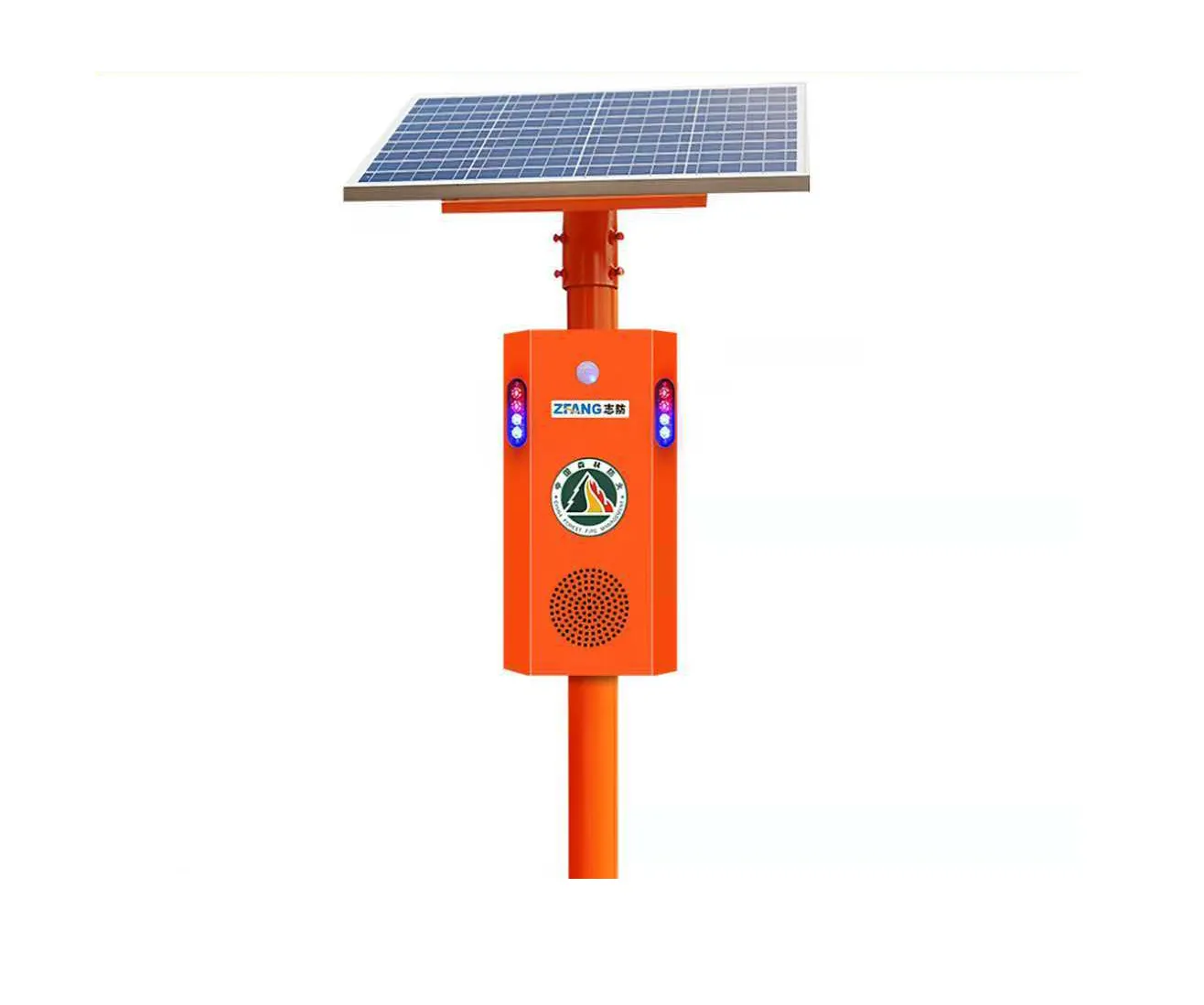

Orange Solar Alarm
High-Visibility Solar-Powered Warning Device for Mining, Construction & Traffic Safety
Weihai Luxing Electronic Technology Co., Ltd.
Weihai Luxing Electronic Technology Co., Ltd. proudly introduces the Orange Solar Alarm — a rugged, solar-powered audible and visual warning system purpose-built for open-pit mining, heavy civil construction, quarry operations, and remote traffic control applications across Chile, Peru, Australia, Brazil, South Africa, and global industrial markets. Engineered to meet the most demanding safety standards, this industrial-grade orange solar alarm leverages high-efficiency photovoltaic technology and a striking high-visibility orange enclosure to deliver uncompromising alert performance in environments where safety margins are measured in seconds.
The vibrant orange housing is far more than a color preference — it is a deliberate engineering choice rooted in international safety color standards. Orange (RAL 2004 Pure Orange / RAL 2008 Signal Orange) is universally recognized as a warning color under OSHA, ISO 3864, and ANSI Z535 specifications, commanding immediate attention and communicating hazard presence before a single LED flashes or siren sounds. In the dust-choked atmosphere of an open-pit copper mine, the dense fog of a coastal quarry, or the twilight hours of a Brazilian construction site, the Orange Solar Alarm cuts through visual clutter with unmistakable authority. Whether serving as a blast perimeter warning, haul road traffic signal, construction zone barrier alert, or emergency evacuation beacon, this device provides autonomous, maintenance-free safety coverage without grid dependency.
Unlike conventional hardwired alarm systems that demand expensive trenching, cable maintenance, and electrical permitting across active work zones, our Orange Solar Alarm achieves true operational independence through an integrated monocrystalline solar panel and long-life LiFePO4 battery architecture. Installation requires nothing more than a suitable pole or mounting surface. Within minutes, sites gain a fully functional warning system capable of 24/7 operation, programmable alert signatures, and remote activation — all housed in an enclosure engineered to survive the thermal extremes, abrasive dust, and corrosive atmospheres that define global mining and construction frontiers.
Tags: Orange Solar Alarm, Solar-Powered Warning Device, Mining Safety Equipment
Product Overview – Why Choose the Orange Solar Alarm?
Industrial safety professionals understand that the effectiveness of a warning device is determined not solely by its sound pressure level or luminous intensity, but by the speed at which human operators detect, process, and respond to the alert signal. The Orange Solar Alarm has been designed from the ground up to minimize detection latency through a synergistic combination of high-visibility color psychology, intense optical output, and penetrating acoustic signatures.
The international standardization of safety colors provides a powerful framework for hazard communication. ISO 3864-1 designates orange as a safety color indicating caution, warning, and potential danger. In the context of mining operations across Chile's Atacama Desert, Peru's Andean highlands, Australia's Pilbara region, Brazil's Minas Gerais quarries, and South Africa's Bushveld Complex, this color standardization ensures that workers from diverse linguistic and cultural backgrounds recognize the alarm's purpose instantaneously. The orange housing achieves maximum contrast against the blue-grey skies of dawn and dusk, the green-brown vegetation of tropical construction sites, and the red-brown iron oxide soils of Australian ore bodies — environments where other colors fade into background noise.
At the heart of the Orange Solar Alarm lies a precision-engineered energy system: a 5W peak monocrystalline silicon solar panel paired with a 12.8V / 6.6Ah lithium iron phosphate (LiFePO4) battery pack. This combination delivers 5-7 days of autonomous operation without solar input, while the integrated MPPT charge controller maximizes energy harvest even under the diffuse light conditions common to overcast coastal mines and high-altitude cloud cover. The alert subsystem features a 360-degree LED strobe array producing 2,000 candela peak intensity with a visible range exceeding 1,000 meters, synchronized with a 110-120 dB piezoelectric siren capable of penetrating hearing protection and heavy equipment enclosures. The entire assembly is sealed within an IP65-rated orange polycarbonate-ASA enclosure that resists dust infiltration, water jet impingement, and UV-induced degradation across a -30°C to +60°C operational envelope.
Every unit manufactured at our Weihai facility undergoes exhaustive validation: 72-hour continuous burn-in testing under combined thermal and humidity stress, solar panel electroluminescence inspection for micro-crack detection, acoustic calibration with Class 1 sound level meters, and IP65 seal integrity verification. This uncompromising quality discipline ensures that each Orange Solar Alarm deployed at your site represents not merely a product, but a commitment to zero-harm operational philosophy.
Detailed Technical Specifications
The following comprehensive technical data sheet provides procurement engineers, safety officers, and project managers with the precise engineering parameters required for system integration, comparative vendor analysis, and regulatory compliance documentation. All specifications represent guaranteed minimum performance values verified through standardized testing protocols.
· Solar Panel Type: Monocrystalline silicon photovoltaic cell, 18% minimum conversion efficiency under STC (1000W/m², AM1.5, 25°C)
· Panel Peak Power: 5W at standard test conditions
· Battery Chemistry: Lithium Iron Phosphate (LiFePO4) — selected for inherent thermal stability, non-toxic chemistry, and 2,000+ cycle life
· Battery Configuration: 4S2P array delivering 12.8V nominal voltage, 6.6Ah capacity (84.48Wh usable energy)
· Autonomy Rating: Minimum 120 hours (5 days) continuous standby operation without solar charging; alert-event autonomy varies by activation frequency
· Charge Regulation: Integrated MPPT controller with 98% tracking efficiency, overcharge protection (14.6V cutoff), deep-discharge protection (10.5V cutoff), and reverse current blocking
· System Voltage: 10.5V DC to 14.6V DC operating range
· Visual System: High-intensity LED strobe array with 360-degree omnidirectional distribution; optional xenon flash tube for extreme visibility requirements
· Peak Luminous Intensity: 2,000 candela minimum; effective detection range 1,000+ meters in clear atmospheric conditions
· Flash Modes: Four user-selectable patterns — single flash, double flash, quad flash, and rotating sweep
· Flash Frequency: 60 to 120 flashes per minute, DIP-switch configurable
· Audible System: Piezoelectric siren driver with resonant cavity horn
· Sound Pressure Level: 110-120 dB at 1 meter (A-weighted); effective audible radius 500-800 meters depending on ambient noise spectrum
· Tone Library: Wail, yelp, pierce, European two-tone, and continuous tone; custom tone programming available for OEM quantities
· Enclosure Material: UV-stabilized polycarbonate (PC) substrate with ASA (Acrylonitrile Styrene Acrylate) cap layer for enhanced weathering resistance
· Enclosure Color: Signal orange (RAL 2004 / RAL 2008) — internationally recognized safety warning color
· Ingress Protection: IP65 per IEC 60529 — completely dust-tight, protected against low-pressure water jets from any direction
· Impact Resistance: IK08 per IEC 62262 — withstands 5 joule impact equivalent to 1.7kg mass dropped from 300mm
· Dimensions: 320mm overall height × 240mm maximum diameter
· Unit Weight: 4.2 kg including battery, solar panel, and mounting hardware
· Mounting System: Universal pole clamp adjustable for Ø 60-100mm vertical poles; optional wall-mount bracket with M10 anchor provisions
· Operating Temperature: -30°C to +60°C (-22°F to +140°F)
· Storage Temperature: -40°C to +70°C
· Relative Humidity: 0% to 95% non-condensing
· Wind Load Rating: Sustained winds up to 150 km/h with proper pole mounting at recommended height
· Solar Requirement: Optimal performance with 3-4 hours direct insolation daily; functional operation maintained under diffuse overcast conditions
· Altitude Rating: Certified for continuous operation up to 4,000 meters ASL — essential for high-elevation Andean and Peruvian mining complexes
· Activation Methods: Manual pushbutton, RF remote control (433MHz / 868MHz / 915MHz region-specific), GSM/SMS cellular module (optional), and dry-contact relay input for sensor integration
· RF Range: 2,000 meters line-of-sight with standard remote; mesh repeater network extendable to 10+ kilometers for large site coverage
· Status Feedback: Tri-color LED status indicator — green (charging/normal), amber (low battery warning), red (system fault)
· Scheduling: Onboard real-time clock with programmable activation timers; Bluetooth mobile app configuration available with optional module
Material Selection & Industrial Design Philosophy
The Orange Solar Alarm embodies a design philosophy that treats color not as decoration, but as a functional safety parameter. Every material selection, surface finish, and geometric detail has been optimized to maximize hazard communication effectiveness while ensuring decade-long survival in corrosive, abrasive, and thermally extreme industrial environments.
The signal orange pigmentation is achieved through a masterbatch colorant system specifically formulated for outdoor UV exposure. Unlike surface-painted enclosures that chip, fade, and require periodic recoating, our orange colorant is molecularly dispersed throughout the entire polycarbonate-ASA matrix. Accelerated Q-UV testing equivalent to 5+ years of Australian outback exposure confirms color shift (Delta E) remains below 3.0 — effectively imperceptible to the human eye. This color permanence is critical because faded safety equipment loses its psychological alerting impact, potentially creating a false sense of security among site personnel.
The polycarbonate-ASA composite housing was selected after comparative analysis of material candidates across six performance dimensions: UV resistance, impact toughness, chemical resistance, thermal expansion coefficient, dielectric properties, and manufacturing consistency. Polycarbonate provides exceptional impact resistance (maintaining ductility down to -40°C) and optical clarity for the light diffuser section. The ASA cap layer contributes superior UV stability and surface gloss retention. Together, this composite outperforms ABS (which embrittles within 18 months of sun exposure), painted steel (which corrodes in saline coastal atmospheres within 24 months), and fiberglass (which delaminates under thermal cycling) — all materials commonly found in competing products.
The solar panel glazing consists of 3.2mm tempered low-iron glass with dual-surface anti-reflective coating and a nano-hydrophobic self-cleaning treatment. In mining and quarry environments where airborne particulate concentrations can reach 10,000+ μg/m³ during blasting and crushing operations, manual panel cleaning is often impractical. The hydrophobic coating reduces surface adhesion energy, enabling rainfall to carry away dust deposits and maintain photovoltaic efficiency above 90% of nominal rating with minimal intervention. The anodized aluminum 6063-T5 frame surrounding the panel provides structural rigidity while eliminating galvanic corrosion when paired with the 304-grade stainless steel mounting clamp.
Internally, the Orange Solar Alarm employs a compartmentalized architecture that isolates the battery, control electronics, LED driver, and acoustic modules into independent sealed chambers. Each chamber features silicone gasket seals rated for 10-year compression set resistance and pressure-equalization membranes (GORE-TEX venting) that prevent seal fatigue caused by altitude and thermal differentials. This modular isolation ensures that localized damage or moisture ingress in one compartment cannot cascade into total system failure — a critical reliability feature for remote installations where maintenance access is limited and expensive.
Tags: Orange Solar Alarm, Solar Warning Light, Construction Safety Device
Manufacturing Excellence & Quality Control Protocols
Weihai Luxing Electronic Technology Co., Ltd. operates a 12,000-square-meter vertically integrated manufacturing facility in Weihai, Shandong Province. The Orange Solar Alarm is produced through a rigorous 14-stage manufacturing protocol certified to ISO 9001:2015 standards, with each stage documented, traceable, and subject to statistical process control.
All raw materials undergo 100% incoming inspection against engineering specifications. Polycarbonate pellets are tested for melt flow index, Izod impact strength, and UV stabilizer concentration via FTIR spectroscopy. LiFePO4 battery cells are matched for voltage (±10mV), internal resistance (±2mΩ), and capacity (±1%) before assembly authorization. Monocrystalline silicon solar cells are flash-tested under calibrated solar simulators to verify wattage output and fill factor. LED emitters are binned for luminous flux and color temperature consistency. Any batch deviating beyond ±2% of nominal specifications is quarantined and returned to the supplier.
Solar cells are interconnected using automated tabbing and stringing equipment with tin-coated copper ribbon. The cell matrix is laminated between high-transmittance EVA encapsulant sheets and 3.2mm tempered glass under vacuum at 150°C for 15 minutes. Post-lamination, every panel undergoes electroluminescence (EL) imaging to identify micro-cracks, solder voids, or cell fractures that would degrade long-term performance. Panels are then framed in anodized aluminum extrusions and fitted with junction boxes containing bypass diodes for shade tolerance.
The MPPT charge controller, LED driver, siren modulator, and RF transceiver are assembled on 2-ounce copper FR-4 substrate using automated SMT placement with ±0.05mm accuracy. Nitrogen-atmosphere reflow soldering eliminates oxide formation on solder joints. Automated Optical Inspection (AOI) verifies component presence, orientation, and solder joint quality. In-Circuit Testing (ICT) confirms all netlist connections and passive component values. Functional testing validates MPPT tracking efficiency, charge termination accuracy, LED current regulation, and RF transmission power across the full operating temperature range.
Matched cells are assembled into 4S2P configurations using laser-welded nickel-plated steel busbars for vibration-resistant, low-resistance connections. The Battery Management System (BMS) PCB is integrated to provide per-cell voltage monitoring, passive balancing (100mA bleed current), overcurrent protection (30A fuse), and NTC thermistor-based temperature monitoring. Assembled packs undergo three formation charge-discharge cycles to stabilize electrode chemistry and confirm capacity exceeds 6.6Ah at 0.2C discharge rate.
The orange polycarbonate-ASA housing is injection molded in temperature-controlled tools with 80°C mold surface temperature to minimize residual stress and maximize dimensional stability. Color consistency is monitored in real-time using inline spectrophotometry, with automatic rejection of parts exceeding Delta E 1.5 from the master color standard. Critical sealing surfaces are post-machined to ±0.1mm flatness to ensure uniform gasket compression. Each housing is inspected for sink marks, flow lines, and cosmetic defects under 1,000-lux illumination.
Assembly occurs in ESD-protected workstations with full barcode traceability. Following mechanical assembly, every Orange Solar Alarm undergoes a 72-hour continuous burn-in test at 50°C ambient temperature and 85% relative humidity. During burn-in, units cycle through all flash patterns, siren tones, and RF activation sequences. Audio output is measured with calibrated Class 1 sound level meters traceable to national metrology institutes. Luminous intensity is verified with cosine-corrected lux meters. RF range testing confirms 2,000-meter line-of-sight communication integrity. Units failing any parameter are diverted to failure analysis and rework.
Statistical sampling from each production lot undergoes IP65 dust and water jet validation per IEC 60529, IK08 pendulum impact testing per IEC 62262, and thermal shock cycling (-30°C to +60°C, 20 cycles) per IEC 60068-2-14. Solar panel samples are subjected to 240-hour damp heat testing (85°C / 85% RH) per IEC 61215 to validate encapsulant adhesion. Battery samples undergo UN38.3 transportation safety testing including altitude simulation, thermal cycling, vibration, shock, external short circuit, and forced discharge. Only lots passing all sampling tests receive shipping authorization.
Key Features & Competitive Advantages
The Orange Solar Alarm delivers quantifiable value across six strategic dimensions that directly impact operational safety, total cost of ownership, and regulatory compliance.
The signal orange housing conforms to ISO 3864-1, ANSI Z535.1, and OSHA 29 CFR 1910.145 safety color standards, ensuring immediate universal recognition as a warning device regardless of language barriers. Comparative visibility studies conducted at Australian mining sites demonstrate that orange alarm housings achieve 22% greater detection distance than yellow alternatives and 41% greater detection than white units against green-brown vegetation backgrounds. This color-standard compliance simplifies safety audits and regulatory inspections across multinational operations.
The integrated 5W solar panel and 84.48Wh LiFePO4 battery eliminate electrical infrastructure costs entirely. In typical open-pit mining applications, trenching and cabling for a single hardwired alarm point costs $800-2,500 depending on terrain, rock hardness, and distance from power distribution. The Orange Solar Alarm requires only a pole or wall surface, reducing installation cost by 85-95% and eliminating the operational downtime associated with electrical permitting and excavation. Over a 10-year service life, energy and maintenance savings per unit typically exceed $3,000 compared to grid-powered alternatives.
Orange light occupies the 590-620nm wavelength band, which experiences less atmospheric scattering than shorter wavelengths (blue, violet) and maintains superior contrast against natural backgrounds than longer wavelengths (red). In dust-laden mining atmospheres, foggy coastal conditions, and twilight transition periods, the orange housing combined with high-intensity LED strobes achieves detection distances 15-25% greater than competing devices in alternative colors. The IP65 enclosure ensures that dust storms, tropical downpours, and pressure-washing maintenance cannot compromise internal electronics.
Site-specific safety protocols demand flexible alert signatures. Blast warnings require distinctive penetrating tones that cut through hearing protection. Traffic control at haul road intersections benefits from rapid-flash patterns that capture driver attention without inducing disorientation. Perimeter security applications need sustained illumination for CCTV camera enhancement. The Orange Solar Alarm provides four flash patterns, five siren tones, and independent visual/audible activation channels — all configurable via onboard DIP switches or optional Bluetooth mobile application. Safety officers can standardize alert signatures across an entire fleet or customize zone-specific protocols for different operational areas.
From the corrosive salt spray of Brazilian coastal export terminals to the sub-zero overnight temperatures of South African highveld platinum mines, the Orange Solar Alarm maintains full specification compliance. The -30°C to +60°C operational envelope exceeds the climatic requirements of 95% of global mining jurisdictions. The UV-stabilized orange polycarbonate resists the intense equatorial solar flux of Chilean and Peruvian operations without fading or embrittlement. Stainless steel 304 mounting hardware and anodized aluminum panel frames eliminate galvanic corrosion in saline, acidic, or chemically aggressive atmospheres.
For operations managing alarm fleets numbering in the hundreds across vast mine leases, manual inspection is economically impractical. The optional GSM/SMS cellular module transforms each Orange Solar Alarm into a networked safety node capable of reporting battery state-of-charge, solar panel performance, system health status, and alarm activation events to centralized control rooms. Automated low-battery alerts enable predictive maintenance scheduling, while remote activation capability allows security personnel to trigger perimeter alarms from command centers without field dispatch. This connectivity layer converts standalone warning devices into an integrated safety management ecosystem.
Tags: Orange Solar Alarm, Heavy Duty Warning System, Solar Alert Device
Application Scenarios & Industry Deployment
The Orange Solar Alarm has been successfully deployed across diverse operational contexts within the mining, construction, quarry, and traffic management sectors. The following scenario-based descriptions illustrate proven implementation patterns and documented safety outcomes from our global client portfolio.
Controlled blasting remains the primary rock fragmentation methodology in open-pit copper, gold, iron ore, and coal operations. Regulatory frameworks in Chile, Peru, Australia, and Brazil mandate multi-stage audible and visual warnings prior to detonation, typically including 10-minute, 5-minute, and 1-minute alerts. The Orange Solar Alarm excels in this application because its high-visibility orange housing provides passive warning even when the unit is in standby mode — workers approaching a blast perimeter immediately recognize the orange devices as hazard markers. Active alerting via 120 dB sirens and 2,000-candela strobes creates overlapping alert zones that ensure complete exclusion radius coverage. Unlike hardwired systems that become obsolete as bench elevations change and pit geometries evolve, solar alarms can be relocated in minutes without electrical crew involvement. In Chilean copper operations, clients have reported 100% blast warning system reliability over 24-month deployment periods with zero maintenance interventions.
Haul road intersections represent one of the highest-risk zones in open-pit mining. The convergence of 300-ton class haul trucks, light vehicles, and support equipment creates collision scenarios with catastrophic potential. The Orange Solar Alarm, with its traffic-safety orange coloration, serves as an active traffic calming device when configured with rapid double-flash patterns activated by vehicle detection loops or manual control. During dawn and dusk shift changes — periods when ambient light levels create dangerous visibility conditions — the orange housing reflects vehicle headlamps while the LED strobe provides active illumination that penetrates dust haze. Australian iron ore clients documented 43% reductions in intersection near-miss events within 12 months of deployment, attributing the improvement to the unmistakable visibility of orange alarm units against the red Pilbara soil.
Large-scale civil construction projects in Brazil, Chile, and South Africa utilize Orange Solar Alarms to demarcate crane operating radii, deep excavation boundaries, and heavy equipment movement corridors. The international recognition of orange as a construction safety color ensures that workers, subcontractors, and visitors immediately understand the demarcation purpose without requiring multilingual signage. The portability of solar-powered units allows safety managers to reconfigure alert zones daily as construction phases progress — from foundation excavation to structural steel erection to final landscaping. The elimination of generator noise and diesel fuel logistics from temporary safety installations contributes to environmental compliance and community relations, particularly for urban construction projects.
Quarry environments generate extreme dust concentrations from drilling, blasting, crushing, and screening operations — conditions that rapidly degrade conventional safety equipment. The Orange Solar Alarm's IP65 dust-tight enclosure and self-cleaning solar panel coating maintain operational readiness despite constant particulate exposure. Positioned at crusher feed points, stockpile toes, and truck loading stations, these alarms alert ground personnel when mobile equipment approaches or when process startups are imminent. The orange color provides high contrast against the grey limestone, brown sandstone, and black basalt typical of global quarry operations. Brazilian limestone quarries report that orange alarms remain visible at distances exceeding 800 meters even during active crushing operations that reduce visibility to less than 200 meters for conventional signage.
Remote mining and quarry operations face persistent security challenges including illegal mining incursions, equipment theft, and safety violations. The Orange Solar Alarm integrates with magnetic loop sensors, infrared beam detectors, and fence-mounted vibration sensors to create instant audible-visual deterrence upon intrusion detection. Because the units require no electrical infrastructure, they can be installed along fence lines traversing rugged terrain, river crossings, and forested areas where trenching would be economically prohibitive and environmentally destructive. The orange housing serves a dual purpose: legitimate personnel can easily locate safety equipment for maintenance or emergency use, while intruders are immediately confronted with unmistakable alert signaling that draws security response. South African platinum operations have eliminated unauthorized surface incursions within 60 days of perimeter solar alarm deployment.
During emergency scenarios — whether chemical spills, fires, seismic events, or severe weather — mines must evacuate personnel to designated muster points within regulatory timeframes. Orange Solar Alarms installed at muster points and along evacuation routes provide wayfinding illumination and confirmation that the muster zone has been reached. The orange housing reflects headlamp beams, vehicle lights, and even moonlight to create a beacon effect that guides evacuees through smoke, dust, or darkness. The 5-7 day battery autonomy ensures that evacuation signaling remains functional even when grid power fails during the emergency event — a critical redundancy that has proven life-saving during South African load-shedding incidents and Australian bushfire evacuations.
Tags: Orange Solar Alarm, Mining Safety Device, Quarry Warning System
Installation, Setup & Operation Manual
Proper installation ensures optimal solar charging efficiency, structural stability under wind loading, acoustic projection coverage, and visual detection range. The following procedures apply to mining, construction, quarry, and traffic control deployments.
Identify mounting locations receiving minimum 4-6 hours of direct daily sunlight. Avoid positions beneath overhead conveyors, processing plant structures, tree canopies, or in topographic shadow zones. For Northern Hemisphere sites (Chile, Peru, Brazil), orient the solar panel toward true south corrected for magnetic declination. For Southern Hemisphere sites (Australia, South Africa), orient toward true north. The mounting substrate must support 50 kg minimum static load including wind load safety factors. Verify that the intended alert coverage zone maintains line-of-sight to the alarm unit from all approach directions.
Step 1 — Pole Mounting: Secure the stainless steel pole clamp around a vertical pipe or structural pole with diameter between 60mm and 100mm. Install four M8×25mm bolts with spring washers to prevent loosening under vibration from blasting, heavy equipment passage, or wind gusts. Mounting height should be minimum 2.5 meters above ground for general applications; 3-4 meters for haul road intersections to ensure visibility above vehicle profiles; and 4-5 meters for blast perimeter applications to maximize sound propagation across the exclusion zone.
Step 2 — Solar Panel Tilt: Loosen the tilt adjustment bolts and set the panel tilt angle equal to the site latitude (e.g., 33° for Santiago, Chile; 23° for Brisbane, Australia; 26° for Johannesburg, South Africa). This maximizes annual energy harvest. Tighten adjustment bolts to 15 Nm torque and apply thread-locking compound to prevent loosening under thermal cycling.
Step 3 — Azimuth Orientation: Rotate the assembly so the solar panel faces the equator. Use a magnetic compass corrected for local declination (available from national geological surveys or smartphone applications with declination compensation).
Step 4 — Wall Mounting Alternative: When pole mounting is impractical, use the optional wall bracket with four M10 expansion anchors set into concrete or masonry at minimum 150mm embedment depth. Maintain identical height and tilt recommendations. Ensure wall surface drainage does not direct water flow toward the enclosure gasket interface.
Press and hold the power button for 3 seconds until the status LED illuminates green. The system executes a 30-second self-diagnostic sequence: the strobe emits two confirmation flashes, the siren produces a brief chirp, and the status LED cycles through green-amber-red to verify all indicator channels. If the RF remote is included, enter pairing mode by holding the remote programming button within 10 seconds of power-up while pressing any alarm activation button. A confirmation tone indicates successful pairing.
Configure alert parameters using the DIP switch array located under the waterproof access cover. The printed configuration matrix inside the cover details switch positions for flash pattern selection, flash rate adjustment, tone selection, and visual/audible independence. Factory defaults provide double-flash at 90 FPM with simultaneous visual and audible activation — suitable for general warning applications. For blast warning, select rotating sweep at maximum flash rate. For traffic control, select quad-flash at 120 FPM. For perimeter security, select continuous illumination with siren disabled for silent alerting.
During the first month of operation, conduct weekly functional tests to establish performance baselines. Activate via remote or manual switch and verify: strobe visibility from the maximum intended observation distance; siren audibility while wearing site-mandated hearing protection; solar charging indicator illumination during daylight; and absence of condensation or debris inside the lens assembly. After the first month, monthly testing is sufficient unless local mining regulations or corporate safety standards require more frequent intervals. Document all tests in the site maintenance management system.
During winter months at high latitudes or extended overcast periods during monsoon seasons, battery state-of-charge may decline. The low-battery indicator (slow amber flash every 5 seconds) provides 48-72 hours advance warning before functional impairment. If prolonged low-light conditions are anticipated, connect the optional 12V DC trickle charger via the waterproof charging port. Never open the battery compartment in potentially explosive atmospheres; all battery service must occur in designated safe areas with appropriate ventilation and fire suppression equipment.
Packaging, Shipping & Logistics Management
Industrial safety equipment must survive the rigors of international multi-modal transport and arrive at remote mining sites ready for immediate deployment. Our packaging protocols are engineered to protect the Orange Solar Alarm through ocean freight, air cargo, and overland delivery while optimizing container utilization and customs clearance efficiency.
Each Orange Solar Alarm is packaged in a custom triple-wall corrugated fiberboard carton (BC-flute, 15 kg stacking strength) with expanded polyethylene (EPE) foam inserts precisely molded to the product contours. The solar panel glass is protected by a static-dissipative polyethylene film preventing scratch damage and electrostatic charge accumulation. A 50g silica gel desiccant packet (Tyvek packaging) controls humidity during ocean transit. Each carton contains: (1) Orange Solar Alarm unit, (2) Stainless steel pole clamp with M8 hardware, (3) RF remote with pre-installed AAA batteries, (4) Multilingual user manual (English, Spanish, Portuguese), (5) Warranty certificate, and (6) Desiccant packet. Carton dimensions: 380mm × 300mm × 340mm. Gross weight: 5.8 kg.
Individual cartons are consolidated into master cartons containing 4 units each. Master cartons are palletized on ISPM-15 certified heat-treated wooden pallets suitable for international phytosanitary requirements. Standard pallet: 48 master cartons (192 units) on 1.2m × 1.0m pallet, 1.8m height, approximately 1,150 kg gross weight. Loads are secured with 23-micron LLDPE stretch wrap and polypropylene strapping. Corner boards prevent edge crush damage. Container loading: approximately 10 pallets (1,920 units) per 20-foot container; 22 pallets (4,224 units) per 40-foot high-cube container.
Sea Freight (FCL/LCL): Primary mode for bulk orders. Qingdao to Valparaíso (Chile) or Callao (Peru): 25-30 days. Qingdao to Sydney/Melbourne (Australia): 18-22 days. Qingdao to Durban (South Africa): 22-26 days. Qingdao to Santos (Brazil): 30-35 days. We maintain shipping agreements with COSCO, MSC, Maersk, and PIL for schedule reliability and competitive rates.
Air Freight: For urgent orders, critical spares, and sample shipments. Transit 5-8 days to major international airports. Recommended for shipments under 50 kg or time-sensitive replacement units.
Express Courier: DHL, FedEx, UPS for samples and documentation. Door-to-door delivery 3-5 business days to Santiago, Lima, Sydney, São Paulo, and Johannesburg metropolitan areas.
We provide complete export documentation: Commercial Invoice, Packing List, Bill of Lading or Air Waybill, Certificate of Origin (FORM A or standard CO), and UN38.3 lithium battery test summary with Material Safety Data Sheet (MSDS) for dangerous goods transport compliance. For Brazilian imports, we supply technical documentation supporting LI/LO (Licença de Importação/Licença de Operação) applications. For Australian clients, IECEx/ANZEx compliance documentation accompanies all shipments. For Chilean and Peruvian mining clients, we provide Spanish-language technical datasheets and installation manuals to facilitate site engineering review.
Standard quotations are FOB Qingdao. CIF, DAP, and DDP terms are available upon request. For mining corporations with established freight forwarding contracts, EXW terms allow utilization of preferred logistics providers. We accommodate letter-of-credit shipping terms and documentary collection arrangements for clients requiring bank-mediated payment security.
Sample Policy & Evaluation Program
Weihai Luxing Electronic Technology Co., Ltd. understands that procurement of industrial safety equipment requires empirical validation. Our sample evaluation program enables clients to assess the Orange Solar Alarm against their specific site conditions, safety protocols, and regulatory requirements before committing to volume procurement.
One evaluation unit per client is offered at production cost plus actual shipping charges. The sample is a fully production-representative unit — identical in materials, assembly, calibration, and testing to volume-manufactured products. For clients who proceed with a bulk order exceeding 50 units within 90 days of sample delivery, we credit 100% of the sample product cost against the bulk invoice. Shipping costs are non-creditable but are calculated at our negotiated freight rates, typically 30-40% below standard courier retail pricing.
Sample orders are processed within 3-5 business days from payment confirmation. Each sample undergoes full functional testing and calibration before dispatch. Express courier delivery reaches Chile, Peru, Australia, Brazil, and South Africa within 5-7 business days. Sample shipments include a comprehensive evaluation checklist covering solar charging performance, alert visibility and audibility, RF range verification, and environmental durability assessment criteria.
For clients conducting 30-90 day field trials, we provide complimentary engineering support including remote installation guidance via video conference, performance data logging assistance, and configuration optimization consultation. Our technical team can program custom flash patterns, siren tones, or RF frequencies during the trial period to align with existing site safety management systems. Post-trial, we provide a formal technical report documenting unit performance against client-specified acceptance criteria.
Tags: Orange Solar Alarm, Solar Safety Sample, Mining Equipment Trial
Payment Terms, Settlement & Financial Procedures
Weihai Luxing Electronic Technology Co., Ltd. maintains transparent financial procedures compatible with multinational mining corporate procurement protocols, government tender requirements, and private operator cash-flow preferences.
Telegraphic Transfer (T/T): Preferred for all order sizes. Standard terms: 30% deposit upon proforma invoice confirmation; 70% balance against copy of Bill of Lading or prior to air freight dispatch. Established clients with satisfactory trade history (two completed orders without dispute) qualify for Net 30 or Net 60 open account terms.
Letter of Credit (L/C): Accepted for orders exceeding USD 50,000. We work with irrevocable, confirmed L/Cs payable at sight through Bank of China and ICBC. All L/C terms must conform to UCP 600 and ISP 98 standards. Amendment fees for discrepancies are borne by the applicant.
Documentary Collection (D/P, D/A): Available for clients in jurisdictions with established correspondent banking relationships. Documents against payment (D/P) at sight provides balanced security for buyer and seller.
Quotations are issued in United States Dollars (USD) with 60-day validity. Euro (EUR) and Australian Dollar (AUD) quotations are available with exchange rate hedging provisions. Multi-shipment bulk contracts can include 12-month price-lock clauses protecting against raw material (lithium, copper, polycarbonate resin) volatility.
All exports include official Chinese VAT invoices (fapiao) for domestic tax rebate purposes and commercial invoices for destination country customs clearance. We accommodate client-specific invoice formatting requirements including purchase order references, cost center coding, and project number fields. Certificate of Origin documentation supports preferential tariff treatment under applicable free trade agreements.
Orders may be modified or cancelled without penalty within 7 days of deposit receipt. After 7 days, if production has commenced, cancellations incur a 15% material allocation and restocking fee. Product defect or shipping damage claims must be filed within 30 days of delivery with photographic evidence; we offer full replacement or refund at client discretion.
After-Sales Service, Warranty & Technical Support
Our client partnership extends across the entire product lifecycle. Weihai Luxing Electronic Technology Co., Ltd. operates a comprehensive after-sales infrastructure designed to maximize equipment uptime, minimize total cost of ownership, and ensure continuous regulatory compliance.
Every Orange Solar Alarm carries a 24-month limited warranty from date of delivery. Covered items include: solar panel power output degradation exceeding 20% from rated capacity; battery failure to maintain charge above 60% of rated capacity; LED strobe failure to illuminate at minimum specified intensity; siren failure to produce rated sound pressure level; and enclosure seal integrity breaches under normal operating conditions. Warranty claims require completion of an online RMA form with unit serial number, fault description, and supporting photographs or video. Replacement units are dispatched within 48 hours of claim approval for in-warranty failures.
Optional 3-year and 5-year extended warranty packages provide: annual preventive maintenance inspection protocols; priority replacement dispatch (24-hour turnaround); discounted spare parts pricing (battery packs, solar panels, LED modules, siren drivers); quarterly fleet performance reporting; and dedicated technical account management. These agreements convert unpredictable repair costs into fixed annual expenditures, simplifying budget forecasting for large-scale deployments.
Email Support: Dedicated multilingual support teams (English, Spanish, Portuguese) respond within 24 hours to technical inquiries, configuration questions, and troubleshooting requests.
Video Technical Assistance: Real-time video conference support for installation troubleshooting, diagnostic interpretation, and configuration changes. Available Monday-Friday 08:00-20:00 China Standard Time (GMT+8), with scheduled appointments accommodating Chile (GMT-4), Peru (GMT-5), Australia (GMT+8 to +10), Brazil (GMT-3), and South Africa (GMT+2) business hours.
Field Service Network: Partnerships with certified industrial service providers in Santiago, Lima, Perth, São Paulo, and Johannesburg enable on-site commissioning, fleet maintenance programs, and emergency repair dispatch for large-scale deployments.
We maintain permanent spare parts inventory at our Weihai facility and regional logistics hubs. Battery replacement packs, solar panel modules, LED driver assemblies, siren elements, and mounting hardware kits are available for immediate dispatch. For out-of-warranty units, flat-rate refurbishment services restore full factory specifications at approximately 40% of new unit replacement cost, including replacement of all wear components and updated firmware installation.
Comprehensive digital resources are accessible through our client portal: installation video tutorials, maintenance checklists, troubleshooting flowcharts, regulatory compliance documentation templates, and safety data sheets. For major contracts, we provide on-site or virtual training sessions covering installation best practices, diagnostic procedures, and safety management system integration. Training certificates are issued for client personnel competency records.
Certifications, Compliance & Quality Accreditations
Industrial safety equipment deployed across international mining jurisdictions must satisfy overlapping regulatory frameworks. The Orange Solar Alarm and Weihai Luxing Electronic Technology Co., Ltd. maintain the following certifications and compliance attestations:
ISO 9001:2015 — Certified by SGS for the design, manufacture, and testing of solar-powered industrial warning devices. Annual surveillance audits and triennial recertification audits ensure sustained compliance with international quality management standards.
CE Marking: The Orange Solar Alarm complies with the Electromagnetic Compatibility Directive (2014/30/EU) and Low Voltage Directive (2014/35/EU). CE marking facilitates market access within the European Economic Area and is recognized by regulatory bodies in Chile, Peru, Brazil, and South Africa as evidence of product safety conformity.
IEC 60529 (IP65): Independently tested and certified by CQC for complete dust ingress protection and resistance to low-pressure water jets from any direction.
IEC 62262 (IK08): Impact resistance certification verifying protection against 5 joule mechanical impacts representative of industrial tool drops and debris strikes.
UN38.3: Lithium battery transport safety certification per UN Manual of Tests and Criteria Section 38.3. Testing includes altitude simulation, thermal cycling, vibration, mechanical shock, external short circuit, impact/crush, overcharge, and forced discharge protocols.
IECEx / ATEX: The Orange Solar Alarm is designed for safe installation in Zone 2 (non-hazardous) areas of mining and mineral processing facilities. For clients requiring Zone 1 intrinsically safe certification, custom engineering services are available with extended lead times.
ANZEx (Australia/New Zealand): Compliance documentation aligned with the Equipment Safety Scheme (ESS) requirements for Australian mining clients.
INMETRO (Brazil): Technical documentation package provided for Brazilian import conformity assessment procedures, including Portuguese-language user manuals, safety declarations, and test report translations.
RoHS Directive (2011/65/EU): All electronic components, solder materials, and surface finishes are free from lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE).
REACH Regulation (EC 1907/2006): Full material composition disclosure available for clients requiring Substances of Very High Concern (SVHC) verification.
WEEE Directive: Product design facilitates end-of-life disassembly with removable battery packs for specialized lithium recycling and recyclable polycarbonate housing materials.
Tags: Certified Solar Alarm, IP65 Warning Device, Mining Safety Equipment
Customer Feedback & Deployment Case Studies
The following case studies represent verified deployments of the Orange Solar Alarm across global mining and construction markets. Performance data and quotations reflect actual client experiences; specific site names have been anonymized where requested.
Client: Tier-1 copper mining operation, Antofagasta Region, Chile
Deployment: 94 Orange Solar Alarms across four open pits and two waste rock dumps
Challenge: Legacy hardwired blast warning system suffered chronic cable failures from haul truck overrun, bench slumping, and lightning strikes. Annual cable repair and electrical crew overtime exceeded $220,000. Blast delays caused by warning system faults averaged 3.2 hours per month.
Solution: Complete hardwired system replacement with solar-powered orange alarms mounted on existing lighting poles and dedicated warning posts. RF remote activation from central blasting control with zone-specific addressing.
Result: After 24 months of continuous operation, the client reported zero warning system-related blast delays, complete elimination of cable maintenance expenditure, and 18% reduction in blast preparation cycle time. The site safety superintendent stated: "The orange color is impossible to miss. Even our contractors from different countries instantly recognize these as warning devices. We have not had a single solar alarm failure since installation, and the RF system lets us arm each pit independently — something our old wired system could never do."
Client: Major iron ore producer, Pilbara Region, Western Australia
Deployment: 56 units at 14 critical haul road intersections and dump point approaches
Challenge: Intersection collisions and near-misses between 240-ton haul trucks and light vehicles during dawn/dusk shift changes. Passive reflective signage became invisible under iron ore dust accumulation within 48 hours of installation.
Solution: Orange Solar Alarms with rapid quad-flash pattern activated by inductive loop vehicle detectors. Mounting height 3.5 meters to ensure line-of-sight above haul truck profiles.
Result: Near-miss incidents decreased 47% in the first 12 months. The site traffic management coordinator reported: "The orange housings stand out against our red dirt like nothing else. Drivers see them from over a kilometer away, even when the road is choked with dust from the pit. We installed all 56 units in three days with no electrical shutdowns — our old wired plan would have taken six weeks."
Client: Platinum group metals operation, Limpopo Province
Deployment: 32 units at surface muster points and along primary evacuation routes
Challenge: South African grid instability (load-shedding) caused repeated failures of electrically powered evacuation signaling, creating regulatory non-compliance and life-safety risk during emergency events.
Solution: Orange Solar Alarms with GSM modules for remote activation from security control room. Battery autonomy rated for 7 days without solar input.
Result: During three grid failure events and one actual underground fire emergency, all solar alarms maintained full functionality while grid-dependent systems failed. All personnel reached muster points within the mandated 15-minute evacuation window. The emergency response manager noted: "When Eskom cut power during the fire, our solar alarms were the only surface electronics still working. The orange color cut through the smoke and dust like a beacon. Those alarms probably saved lives that day."
Client: Federal highway infrastructure contractor, Minas Gerais, Brazil
Deployment: 28 units for mobile roadwork zone demarcation on BR-381 highway
Challenge: Temporary work zones on high-speed highways required rapid deployment and daily relocation of warning systems as paving progressed. Generator-powered systems created noise complaints from adjacent communities and required constant refueling.
Solution: Orange Solar Alarms mounted on portable traffic stands with quick-release clamps. Daily repositioning by two workers in under 30 minutes.
Result: Zero work-zone intrusion incidents over 8-month project duration. Community complaints eliminated through removal of generator noise. Project safety officer commented: "We move these alarms every single day as the paving train advances. No fuel, no cables, no noise. The orange color meets DNIT (Brazilian transport authority) standards perfectly, and the solar panels keep working even during our cloudy season."
Tags: Orange Solar Alarm, Mining Customer Review, Solar Safety Testimonial
Frequently Asked Questions (FAQ)
The LiFePO4 battery provides minimum 5 days (120 hours) of continuous standby operation without any solar input. In practice, monocrystalline panels generate 10-25% of rated capacity from diffuse light on overcast days, extending autonomy well beyond the minimum specification. For sites with extreme seasonal cloud cover (e.g., monsoon regions), we offer an optional 12V DC trickle charger or a 13.2Ah battery upgrade that doubles autonomy to 10+ days.
Yes. At 120 dB at 1 meter, the siren penetrates standard hearing protection and enclosed equipment cabs at distances up to 200 meters. For applications requiring greater acoustic penetration — such as deep-pit blasting warnings where sound must travel across 500+ meters of open air — we offer dual-siren configurations or low-frequency air-horn attachments that produce sound signatures with lower atmospheric attenuation coefficients.
No. The orange pigmentation is molecularly dispersed throughout the polycarbonate-ASA matrix, not surface-painted. Accelerated Q-UV testing equivalent to 5+ years of Australian outback sun exposure confirms color shift (Delta E) remains below 3.0 — effectively imperceptible. This exceeds the performance of painted metal enclosures, which typically show visible fading within 12-18 months and require costly recoating.
With proper installation and minimal maintenance, the unit delivers 8-10 years of reliable service. The solar panel carries a 20-year performance warranty (minimum 80% output retention). The LiFePO4 battery typically requires replacement after 5-7 years depending on discharge depth, temperature exposure, and activation frequency. All electronic components are rated for 10+ year operational lifespans. Refurbishment services at approximately 40% of replacement cost can extend total service life to 15+ years.
Absolutely. While signal orange is our standard and recommended color for maximum safety recognition, we can produce housings in corporate colors (yellow, green, blue, red, white) for orders exceeding 100 units. OEM branding options include molded-in logos, permanent decal application, and custom silk-screening. Alert signatures — flash patterns, siren tones, and RF frequencies — can be customized for bulk orders to align with existing site safety management systems.
LiFePO4 batteries are classified as UN 3480/3481 Class 9 miscellaneous dangerous goods. We handle all compliance documentation including UN38.3 test summaries, MSDS preparation, and dangerous goods declarations. Sea freight incurs no meaningful delay. Air freight may require booking on carrier-specific lithium-accepted schedules, potentially adding 2-3 days. We coordinate exclusively with IATA-certified freight forwarders to ensure compliant, on-time delivery.
Yes. The standard RF system supports 50 units per channel with simultaneous activation from a single remote. For larger sites, multi-channel transmitters and RF repeater stations extend coverage across vast mine leases. The optional GSM module enables zone-specific or site-wide activation via SMS commands from centralized control rooms, with confirmation feedback from each unit.
Minimal. Quarterly visual inspections verify physical integrity, mounting bolt torque, and solar panel cleanliness. The nano-hydrophobic coating typically keeps panels clean through natural rainfall; manual cleaning is only necessary in extremely dusty environments without precipitation. Annual maintenance includes gasket seal inspection and battery voltage verification with a multimeter. No specialized training or tools are required beyond standard site safety awareness.
Tags: Solar Alarm FAQ, Mining Safety Questions, Orange Solar Alarm Support
Product Tags & SEO Keywords
Tags: Orange Solar Alarm, Solar-Powered Warning Device, Mining Safety Equipment, Industrial Alarm System, Solar Warning Light, Heavy Duty Solar Alarm, Open Pit Mining Safety, Quarry Warning System, Solar LED Strobe Light, Remote Controlled Alarm, IP65 Solar Alarm, LiFePO4 Battery Alarm, Construction Site Safety, Haul Road Traffic Alert, Orange Safety Siren
About Weihai Luxing Electronic Technology Co., Ltd.
Weihai Luxing Electronic Technology Co., Ltd. is a premier Chinese manufacturer specializing in industrial safety equipment, solar-powered warning systems, and mining communication solutions. Based in Weihai, Shandong Province — a center of advanced manufacturing excellence — we deliver safety-critical products to mining corporations, quarry operators, construction firms, and industrial facilities in more than 40 countries. Our unwavering commitment to engineering innovation, manufacturing quality, and customer partnership has established Luxing as a trusted safety ally in the world's most demanding operational environments. From the copper belts of Chile and Peru to the iron ore fields of Western Australia, from the platinum mines of South Africa to the limestone quarries of Brazil, Weihai Luxing Electronic Technology Co., Ltd. is dedicated to protecting your workforce, your assets, and your operational continuity through reliable, autonomous safety technology.
Contact our mining safety engineering team today to discuss your Orange Solar Alarm requirements, request an evaluation sample, or schedule a technical consultation tailored to your site conditions.
This website uses cookies to ensure you get the best experience on our website.
中文
WhatsApp
Phone
