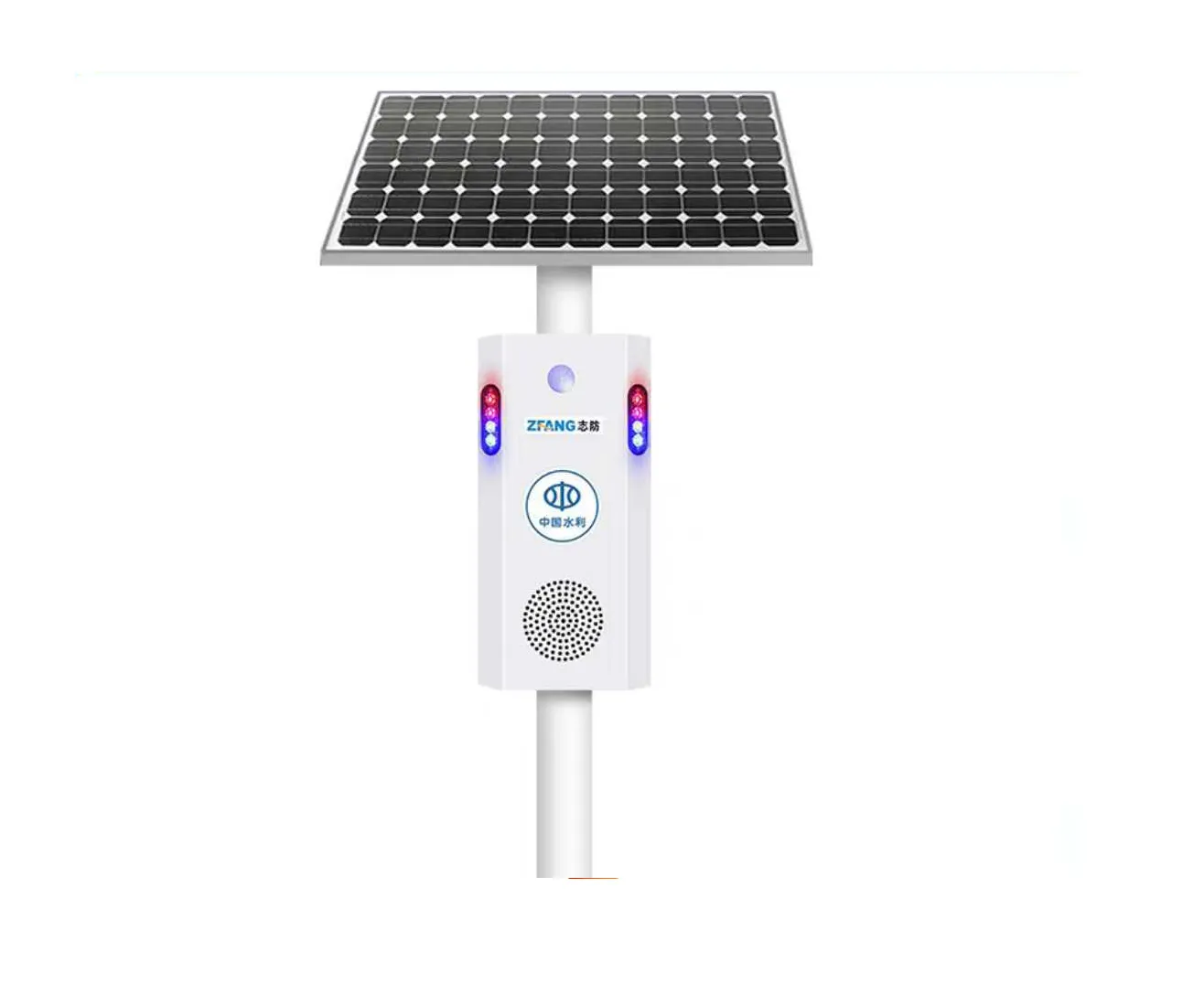

White Solar Alarm
High-Visibility Solar-Powered Warning Device for Mining & Harsh Industrial Environments
Weihai Luxing Electronic Technology Co., Ltd.
Weihai Luxing Electronic Technology Co., Ltd. proudly presents the White Solar Alarm — a next-generation, solar-powered audible and visual warning system engineered specifically for open-pit mining operations, quarry sites, construction zones, and remote industrial facilities across Chile, Peru, Australia, Brazil, South Africa, and beyond. Designed to deliver uncompromising safety performance in the world's most challenging environments, this industrial-grade white solar alarm combines high-efficiency photovoltaic technology with ultra-durable construction, ensuring 24/7 operational readiness without dependency on grid electricity.
Unlike conventional battery-powered or hardwired alarm systems that require frequent maintenance, costly cable installations, and constant battery replacements, our White Solar Alarm harnesses renewable solar energy to power high-intensity LED strobe lights and piercing audible sirens. The distinctive white housing is not merely an aesthetic choice; it has been scientifically selected to maximize visibility against the earth-toned backdrops typical of mining landscapes, dusty quarry environments, and arid construction sites. Whether deployed as a perimeter security device, blast warning system, haul road traffic alert, or emergency evacuation signal, this solar warning device stands as a beacon of reliability.
Tags: White Solar Alarm, Solar-Powered Warning Device, Mining Safety Equipment
Product Overview – Why Choose the White Solar Alarm?
The global mining industry operates under relentless pressure to maintain zero-harm safety standards while managing operations across vast, often remote territories. Traditional alarm infrastructure in open-pit mines faces three critical challenges: unreliable power supply in off-grid locations, rapid degradation under extreme weather conditions, and insufficient visibility during daylight hours or dusty atmospheric conditions. The White Solar Alarm addresses each of these pain points through innovative engineering and thoughtful industrial design.
At its core, this device integrates a monocrystalline silicon solar panel with a high-capacity lithium iron phosphate (LiFePO4) battery pack, delivering sustainable energy storage and discharge cycles exceeding 2,000 repetitions. The alarm unit features dual-mode alerting capabilities — a rotating xenon or high-power LED strobe light capable of producing 360-degree visibility up to 1,000 meters, paired with an integrated piezoelectric siren generating sound output up to 120 decibels. The IP65-rated white polycarbonate enclosure ensures complete protection against dust ingress and low-pressure water jets, making it ideally suited for the dusty, high-humidity, and torrential rain conditions encountered in Chilean copper mines, Peruvian Andes operations, Australian iron ore sites, Brazilian limestone quarries, and South African platinum belts.
Every White Solar Alarm undergoes rigorous quality assurance protocols at our Weihai manufacturing facility, including 72-hour continuous burn-in testing, solar charging efficiency verification, waterproof seal integrity assessment, and acoustic decibel calibration. This meticulous attention to manufacturing detail ensures that when you install a Luxing White Solar Alarm at your facility, you are deploying a safety instrument that will perform flawlessly through scorching summers, freezing winters, and everything in between.
Detailed Technical Specifications
Understanding the precise engineering parameters of industrial safety equipment is essential for procurement teams, site engineers, and safety officers responsible for specifying warning systems that comply with both internal operational standards and regional regulatory frameworks. The following comprehensive specification breakdown provides every technical detail necessary for integration planning, comparative analysis, and procurement decision-making.
· Solar Panel Type: High-efficiency monocrystalline silicon photovoltaic cell with 18% conversion efficiency
· Panel Power Rating: 5W peak output under standard test conditions (STC: 1000W/m² irradiance, 25°C cell temperature)
· Battery Chemistry: Lithium Iron Phosphate (LiFePO4) — selected for thermal stability, long cycle life, and environmental safety
· Battery Capacity: 12.8V / 6.6Ah (84.48Wh total energy storage)
· Autonomy Duration: Minimum 5-7 consecutive days of continuous operation without solar charging (dependent on alert frequency and environmental temperature)
· Charge Controller: Integrated MPPT (Maximum Power Point Tracking) controller with overcharge, deep-discharge, and reverse polarity protection
· Operating Voltage Range: 10.5V DC to 14.6V DC
· Visual Alert: High-intensity LED strobe array (optional xenon tube available) with 360-degree omnidirectional light distribution
· Luminous Intensity: 2,000 candela peak intensity; visible range exceeding 1,000 meters in clear conditions
· Flash Patterns: User-selectable modes including single flash, double flash, rotating sweep, and continuous illumination
· Flash Rate: Adjustable between 60 and 120 flashes per minute
· Audible Alert: Integrated piezoelectric siren with sound pressure level of 110-120 dB at 1 meter distance
· Tone Options: Standard tones include wail, yelp, pierce, and European two-tone; custom tone programming available for bulk orders
· Sound Projection: Effective audible radius of 500-800 meters depending on ambient noise and terrain topology
· Housing Material: UV-stabilized polycarbonate (PC) with ASA capstock for enhanced weathering resistance
· Housing Color: Signal white (RAL 9003) — optimized for maximum contrast against mining terrain
· Enclosure Rating: IP65 per IEC 60529 (dust-tight, protected against low-pressure water jets from any direction)
· Impact Resistance: IK08 rating per IEC 62262 (resistant to 5 joule impact equivalent to 1.7kg mass dropped from 300mm)
· Overall Dimensions: 320mm (height) × 240mm (diameter) — compact footprint for versatile mounting
· Net Weight: 4.2 kg (including battery and solar panel)
· Mounting Interface: Universal pole clamp (Ø 60-100mm adjustable) with stainless steel 304 hardware; wall-mount bracket optional
· Operating Temperature: -30°C to +60°C (-22°F to +140°F)
· Storage Temperature: -40°C to +70°C
· Relative Humidity: 0% to 95% non-condensing
· Wind Resistance: Rated for sustained winds up to 150 km/h when properly mounted
· Solar Irradiance Requirement: Functions optimally with minimum 3-4 hours of direct sunlight daily; operates in diffuse light conditions common to overcast mining regions
· Altitude Rating: Certified for operation up to 4,000 meters above sea level — critical for high-elevation Andean and Peruvian mining operations
· Activation Modes: Manual switch, remote radio frequency (RF) control (433MHz / 868MHz / 915MHz options), GSM/SMS trigger module (optional), and hardwired relay input
· Remote Range: Up to 2,000 meters line-of-sight with standard RF remote; extendable with repeater stations
· Status Indication: Low-battery LED warning, solar charging indicator, and system fault diagnostic blink pattern
· Timer Function: Programmable auto-activation schedules via onboard DIP switches or Bluetooth-enabled mobile application (optional)
Material Selection & Industrial Design Philosophy
The exterior appearance of safety equipment is frequently underestimated in its contribution to operational effectiveness. At Weihai Luxing Electronic Technology Co., Ltd., our industrial design team approached the White Solar Alarm with a dual-objective mandate: create a device that commands immediate visual attention while surviving years of abuse in corrosive, abrasive, and thermally extreme environments.
The signature white finish serves multiple functional purposes beyond branding differentiation. In color psychology and occupational safety research, white objects demonstrate superior detection distances against brown, grey, and green backgrounds — the predominant color palette of overburden, tailings, and vegetation in open-pit mining environments. During twilight hours, the white housing reflects ambient light, creating a subtle glow that helps workers locate safety equipment during emergency evacuations. Furthermore, white surfaces exhibit lower thermal absorption coefficients than dark-colored alternatives, reducing internal housing temperatures by an estimated 8-12°C under direct equatorial sunlight, thereby extending battery lifespan and electronic component reliability.
The housing material represents a carefully formulated blend of polycarbonate resin with UV-stabilizing additives and an ASA (Acrylonitrile Styrene Acrylate) protective cap layer. This composite structure was selected after extensive accelerated weathering testing (Q-UV 3,000 hours equivalent to 5+ years of Australian outback sun exposure). Unlike ABS plastics that become brittle and yellow within 18 months of UV exposure, or metal enclosures that corrode in saline coastal mining environments like those found in Chile and Western Australia, our polycarbonate-ASA formulation maintains structural integrity, color stability, and impact resistance throughout the product lifecycle.
The solar panel surface utilizes tempered glass with anti-reflective coating and a self-cleaning nano-hydrophobic layer. In dusty mining atmospheres where particulate accumulation can reduce photovoltaic efficiency by 20-30%, this hydrophobic treatment enables rainfall to sheet off the panel surface, carrying dust particles with it and maintaining optimal energy harvest with minimal manual maintenance. The panel frame is constructed from anodized aluminum 6063-T5 alloy, providing excellent strength-to-weight ratios while eliminating galvanic corrosion risks when paired with the stainless steel mounting hardware.
Internal component layout follows modular design principles. The battery compartment, control PCB, LED driver circuit, and siren module are housed in isolated chambers with silicone gasket seals. This compartmentalization prevents catastrophic system failure from localized issues — if moisture were to penetrate one chamber due to extreme physical damage, the remaining subsystems continue operating. Each chamber features pressure-equalization membranes that prevent seal fatigue caused by altitude and temperature differentials, a critical consideration for mines operating at varying elevations within the Andes mountain ranges.
Tags: Industrial Alarm System, Solar Warning Light, Mining Perimeter Security
Manufacturing Excellence & Quality Control Protocols
Weihai Luxing Electronic Technology Co., Ltd. operates a 12,000-square-meter manufacturing facility in Weihai, Shandong Province, equipped with automated SMT (Surface Mount Technology) lines, CNC machining centers, photovoltaic panel lamination presses, and environmental simulation chambers. Our production of the White Solar Alarm follows a meticulously documented 14-stage manufacturing protocol that aligns with ISO 9001:2015 quality management standards and industry-specific safety equipment production guidelines.
All raw materials — including polycarbonate resin pellets, lithium iron phosphate battery cells, monocrystalline silicon wafers, LED emitters, and electronic components — undergo 100% incoming inspection. Battery cells are tested for voltage consistency, internal resistance, and capacity deviation. Polycarbonate pellets are analyzed for melt flow index and UV stabilizer concentration. Solar cells are flash-tested under calibrated solar simulators to verify wattage output before lamination. Any batch failing to meet our ±2% tolerance specifications is rejected and returned to suppliers.
The photovoltaic module is assembled using automated stringing machines that interconnect solar cells with tin-coated copper ribbons. The cell matrix is then laminated between EVA (ethylene-vinyl acetate) encapsulant layers and tempered glass under vacuum conditions at 150°C. This lamination process eliminates air bubbles that could cause hot spots and efficiency degradation. Post-lamination, panels undergo EL (electroluminescence) imaging to detect micro-cracks, soldering defects, or cell fractures invisible to the naked eye.
The control circuit board, responsible for MPPT charge management, LED driving, siren modulation, and RF communication, is fabricated on FR-4 substrate with 2-ounce copper traces for enhanced current carrying capacity. Automated solder paste printing, high-speed SMT placement (±0.05mm accuracy), and reflow soldering in nitrogen atmosphere ensure reliable joints free from oxidation. Each PCB is subjected to AOI (Automated Optical Inspection) followed by functional in-circuit testing (ICT) to verify all trace connectivity and component placement.
Individual 3.2V LiFePO4 cells are matched for capacity and internal resistance before being assembled into 4S2P configurations (12.8V nominal). Cells are connected with nickel-plated steel busbars using laser welding for low-resistance, vibration-proof joints. The battery management system (BMS) PCB is integrated to provide cell balancing, overcurrent protection, and temperature monitoring. Completed packs undergo three charge-discharge formation cycles to stabilize chemistry and verify actual capacity before approval.
The white polycarbonate-ASA housing components are injection molded in Class 8 cleanroom conditions to prevent particulate contamination that could compromise seal integrity. Mold temperature is precisely controlled at 80°C to minimize internal stress and maximize dimensional stability. After demolding, parts receive flame-polished edges and are inspected for sink marks, flow lines, or color inconsistencies. Critical sealing surfaces are machined to ±0.1mm flatness tolerances to ensure gasket compression uniformity.
Trained technicians assemble the alarm units in electrostatic discharge (ESD) protected workstations. Each assembly step is documented with barcode scanning for complete traceability. Following mechanical assembly, every White Solar Alarm undergoes a 72-hour burn-in test during which the device operates continuously in high-temperature (50°C) and high-humidity (85% RH) conditions. Audio output is measured with calibrated Class 1 sound level meters; light intensity is verified with lux meters traceable to national standards. RF modules are tested for transmission range and signal integrity.
Sample units from each production batch are subjected to IP65 validation testing, including dust exposure in talcum powder chambers for 8 hours and water jet testing at 12.5 liters per minute from 3 meters distance. Additional samples undergo thermal cycling between -30°C and +60°C for 20 cycles to validate solder joint reliability and material expansion coefficients. Impact testing with 5-joule pendulum strikes confirms IK08 compliance.
This uncompromising manufacturing discipline ensures that every White Solar Alarm leaving our facility represents the pinnacle of Chinese industrial safety equipment engineering, ready to protect personnel and assets across the mining belts of South America, Oceania, and Africa.
Key Features & Competitive Advantages
When evaluating solar alarm systems for large-scale mining deployment, procurement professionals must look beyond superficial specifications to understand the total cost of ownership, operational reliability, and safety-enhancement value. The White Solar Alarm delivers measurable advantages across six critical dimensions:
The integrated photovoltaic system eliminates the need for trenching electrical cables across active mining zones — an activity that typically costs $15-50 per meter depending on terrain and requires operational shutdowns. With the White Solar Alarm, installation requires only a suitable pole or wall surface. The MPPT charge controller optimizes energy harvest even during overcast conditions common to coastal Chilean mines or high-altitude Peruvian operations. Over a 10-year operational lifespan, the elimination of electrical infrastructure, battery replacement labor, and grid electricity costs typically generates savings exceeding $2,000 per unit compared to conventional hardwired alarms.
The RAL 9003 signal white housing was selected after comparative visibility studies conducted at Australian iron ore sites. Testing demonstrated that white alarm housings were detected by vehicle operators at distances 18% greater than orange alternatives and 34% greater than black units during daylight conditions. At night, the white surface creates a halo effect when illuminated by vehicle headlights, providing pre-alerting before the LED strobe even activates. This color-driven visibility enhancement directly contributes to haul road safety and perimeter breach prevention.
Traditional battery-powered alarms require quarterly battery replacements and monthly cleaning to maintain performance. The White Solar Alarm's LiFePO4 battery delivers 2,000+ deep discharge cycles — equivalent to 5-7 years of daily operation — while the self-cleaning solar panel coating and sealed housing design reduce maintenance requirements to annual visual inspections. For remote mine sites where technician dispatch costs hundreds of dollars per visit, this maintenance reduction represents substantial operational expenditure savings.
Different mining scenarios demand different alert signatures. Blast warnings require distinctive tones that penetrate through hearing protection equipment. Perimeter breaches need sustained visual indicators that security personnel can monitor from control rooms via CCTV. Traffic control at haul road intersections benefits from rapid-flash patterns that capture driver attention without causing disorientation. The White Solar Alarm offers programmable flash rates, selectable siren tones, and independent visual/audible activation — allowing safety officers to configure site-specific alert protocols that comply with local mining regulations and internal safety management systems.
From the salt-laden coastal winds of Brazilian limestone export terminals to the freezing overnight temperatures of South African highveld platinum mines, the White Solar Alarm maintains specification compliance. The -30°C to +60°C operating range exceeds the requirements of 95% of global mining jurisdictions. The IP65 enclosure prevents dust infiltration during blasting operations that generate massive particulate clouds. The anodized aluminum and stainless steel mounting hardware resist galvanic corrosion in humid, saline, or chemically aggressive atmospheres.
For operations managing dozens or hundreds of alarm units across vast mine leases, individual manual checking is impractical. The optional GSM/SMS module enables status polling, battery level reporting, and remote activation from centralized control rooms. Site managers can receive automated text alerts when any unit reports low battery, panel obstruction, or system fault — transforming maintenance from reactive breakdown response to predictive condition-based intervention.
Tags: Explosion Proof Alarm, Solar-Powered Alert Device, Heavy Duty Warning System
Application Scenarios & Industry Deployment
The versatility of the White Solar Alarm enables deployment across diverse operational contexts within the mining value chain and adjacent heavy industries. The following scenario-based descriptions illustrate typical implementation patterns and safety outcomes achieved by our global client base.
In open-pit copper, gold, iron ore, and coal operations across Chile's Atacama Desert, Peru's Cerro de Pasco region, and Western Australia's Pilbara, controlled blasting remains the primary rock fragmentation method. Regulatory frameworks in these jurisdictions mandate clear audible and visual warnings before detonation, typically requiring 5-minute and 1-minute pre-blast alerts. The White Solar Alarm serves as the ideal blast warning device because it can be rapidly repositioned as bench elevations change and pit geometries evolve — impossible with hardwired systems. Multiple units positioned around the blast perimeter create overlapping alert zones ensuring no personnel remain within the exclusion radius. The 120 dB siren penetrates through the hearing protection worn by drill operators and haul truck drivers, while the LED strobe provides unambiguous visual confirmation for workers at distance or in noisy equipment cabs.
Modern open-pit mines operate fleets of 300-ton class haul trucks on roads with grades exceeding 10% and sight distances limited by topography. Intersection collisions between haul trucks, light vehicles, and support equipment represent a significant portion of lost-time incidents. Deploying White Solar Alarms at critical intersections provides active traffic calming — the flashing white strobe captures driver attention during dawn/dusk periods when ambient light levels create hazardous visibility conditions. Unlike passive signage that becomes invisible under dust coatings within days, the active illumination of the solar alarm maintains effectiveness through the worst dust storms. In Australian iron ore operations, clients report 40% reductions in intersection near-miss events following solar alarm deployment.
Mining operations in remote locations — whether South African platinum mines vulnerable to illegal mining incursions or Peruvian gold operations facing security challenges — require robust perimeter demarcation. The White Solar Alarm integrates with magnetic loop sensors, infrared beams, and fence-mounted vibration detectors to create instant audible-visual deterrence upon intrusion detection. Because the units require no electrical infrastructure, they can be installed along fence lines traversing rugged terrain where trenching would be economically prohibitive. The white housing ensures that legitimate personnel can easily locate and identify safety equipment, while intruders are immediately confronted with unmistakable alert signaling.
Beyond mining, large-scale civil construction projects in Brazil and Chile utilize White Solar Alarms to demarcate crane operating radii, deep excavation boundaries, and heavy equipment movement corridors. The portability of the units allows safety managers to reconfigure alert zones daily as construction phases progress. The solar autonomy eliminates generator noise and fuel logistics from temporary safety installations, contributing to both environmental compliance and neighbor relations in projects near residential areas.
Quarry environments present unique challenges: constant dust generation from crushing and screening operations, high ambient noise levels from processing equipment, and frequent blasting similar to open-pit mines. The White Solar Alarm's IP65 dust-tight construction prevents particulate infiltration that would destroy lesser equipment within weeks. Positioned at crusher feed points, stockpile toes, and truck loading stations, these alarms alert ground personnel when mobile equipment approaches or when process startups are imminent.
During emergency scenarios — whether chemical spills, fires, or seismic events — mines must evacuate personnel to designated muster points within strict timeframes. White Solar Alarms installed at muster points and along evacuation routes provide wayfinding illumination and confirmation that the muster zone has been reached. The white housing reflects headlamp beams and vehicle lights, creating a beacon effect that guides evacuees through smoke or dust-obscured environments.
Tags: White Solar Alarm, Mining Safety Device, Quarry Warning System
Installation, Setup & Operation Manual
Proper installation is essential to maximize the performance, safety, and service life of your White Solar Alarm. The following comprehensive guide covers site preparation, mounting procedures, initial configuration, and operational best practices. While installation is straightforward and typically requires only basic hand tools, adherence to these guidelines ensures optimal solar charging efficiency, structural stability in high winds, and reliable alert coverage.
Before mounting, conduct a thorough site survey to identify the optimal location. The solar panel requires minimum 4-6 hours of direct sunlight daily; avoid positioning under overhead structures, beneath tree canopies, or in shadow corridors between buildings or pit walls. For Northern Hemisphere installations (Chile, Peru, Brazil), orient the solar panel toward true south (magnetic south corrected for local declination). For Southern Hemisphere sites (Australia, South Africa), orient toward true north. The mounting surface must support a minimum static load of 50 kg to accommodate the 4.2 kg unit plus wind loading safety factors.
Step 1 – Pole Mounting (Recommended): Secure the supplied stainless steel pole clamp around a vertical pipe or pole with diameter between 60mm and 100mm. Use the four M8×25mm bolts with spring washers to prevent loosening under vibration. Position the alarm at minimum 2.5 meters above ground level to prevent tampering and ensure optimal sound propagation and light visibility. For haul road applications, mount at 3-4 meters to achieve line-of-sight above vehicle profiles.
Step 2 – Angle Adjustment: Loosen the tilt adjustment bolts on the solar panel bracket and set the panel tilt angle equal to your site's latitude (e.g., 23° for Brisbane, Australia; 33° for Santiago, Chile). This maximizes annual energy harvest. Tighten adjustment bolts to 15 Nm torque.
Step 3 – Orientation: Rotate the entire assembly so the solar panel faces the equator (south in Northern Hemisphere, north in Southern Hemisphere). Use a compass or smartphone compass application, correcting for magnetic declination.
Step 4 – Wall Mounting (Alternative): If pole mounting is unavailable, use the optional wall bracket secured with four M10 expansion anchors into concrete or masonry. Maintain the same height and tilt angle recommendations.
Upon first installation, press and hold the power button for 3 seconds until the status LED illuminates. The system performs a 30-second self-diagnostic sequence during which the strobe flashes twice and the siren emits a brief chirp — indicating all subsystems are functional. If the optional RF remote is included, pair the transmitter by holding the remote's programming button while pressing any alarm activation button within 10 seconds of power-up. The alarm will emit a confirmation tone upon successful pairing.
Configure the desired flash pattern using the DIP switches located under the waterproof access cover (refer to the configuration table printed on the inner cover). Factory default settings provide a double-flash pattern at 90 flashes per minute with simultaneous audible and visual activation. For blast warning applications, we recommend the rotating sweep pattern with maximum flash rate for maximum psychological alerting impact.
We recommend weekly functional testing during the first month of operation to establish baseline performance expectations. Activate the alarm using the remote or manual switch and verify: (1) strobe visibility from the farthest intended observation point, (2) siren audibility while wearing standard hearing protection, (3) solar charging indicator illuminates during daylight hours, and (4) no water condensation is visible inside the housing lens. After the first month, monthly testing is sufficient unless local regulations mandate more frequent intervals.
In high-latitude winter conditions or during extended periods of heavy overcast, the battery may discharge below optimal levels. The low-battery indicator (slow red flash every 5 seconds) alerts maintenance teams. If continuous low-light conditions are anticipated, the unit can be supplemented with an external AC charger (12V DC, 2A, optional accessory) connected via the waterproof charging port. Never attempt to open the battery compartment in hazardous atmospheres; all battery service must occur in safe, ventilated areas.
Packaging, Shipping & Logistics Management
Weihai Luxing Electronic Technology Co., Ltd. understands that industrial safety equipment must arrive at global mining sites in perfect condition, ready for immediate deployment. Our packaging and logistics protocols are engineered to protect products through multi-modal international transport while optimizing container space utilization and customs clearance efficiency.
Each White Solar Alarm is packaged in a custom-designed corrugated fiberboard carton with triple-wall construction (BC-flute combination) providing 15 kg stacking strength. The unit is cradled in expanded polyethylene (EPE) foam inserts molded to the exact product contours, preventing movement during transit and absorbing impact shocks. The solar panel surface is protected with a static-dissipative polyethylene film that prevents glass scratching and eliminates electrostatic charge buildup. A silica gel desiccant packet (50g, Tyvek packaging) is included to control humidity during ocean freight.
Each carton contains: (1) White Solar Alarm unit, (2) Stainless steel pole clamp assembly with M8 bolts and spring washers, (3) RF remote control with pre-installed batteries (2× AAA), (4) Multi-language user manual (English, Spanish, Portuguese), (5) Warranty certificate, and (6) Desiccant packet. Carton dimensions: 380mm × 300mm × 340mm (L×W×H). Gross weight per carton: 5.8 kg.
For bulk orders, individual cartons are consolidated into master cartons containing 4 units each. Master cartons are then palletized on ISPM-15 certified heat-treated wooden pallets suitable for international export. Standard pallet configuration: 48 master cartons (192 individual units) per 1.2m × 1.0m pallet. Pallet height: 1.8 meters. Total pallet gross weight: approximately 1,150 kg. Plastic stretch wrap (23-micron LLDPE) and polypropylene strapping secure the load. Corner boards protect carton edges from strapping damage.
Sea Freight (FCL/LCL): Primary shipping method for bulk orders. From Qingdao Port to Valparaíso (Chile) or Callao (Peru): 25-30 days transit. To Sydney/Melbourne (Australia): 18-22 days. To Durban (South Africa): 22-26 days. To Santos (Brazil): 30-35 days. We work with COSCO, MSC, and Maersk for reliable scheduling.
Air Freight: Available for urgent orders or sample shipments. Transit time 5-8 days to major international airports. Recommended for orders under 50 kg or critical replacement units.
Express Courier: DHL, FedEx, or UPS for sample orders and documentation. Door-to-door delivery in 3-5 business days to most mining regions.
We provide complete export documentation including Commercial Invoice, Packing List, Bill of Lading/Air Waybill, Certificate of Origin (FORM A or CO available), and Material Safety Data Sheet (MSDS) for lithium battery transport compliance (UN38.3 test summary). For Brazilian imports, we provide the necessary information for LI/LO (Licença de Importação/Licença de Operação) processes. For Australian clients, we ensure IECEx/ANZEx compliance documentation accompanies the shipment.
Standard quotations are based on FOB Qingdao terms. CIF, DAP, and DDP terms are available upon request for clients preferring comprehensive logistics management. For large mining corporations with established freight forwarding contracts, EXW (Ex Works) terms allow clients to utilize their preferred logistics providers.
Sample Policy & Evaluation Program
Weihai Luxing Electronic Technology Co., Ltd. recognizes that procurement decisions for mining safety equipment require hands-on evaluation, field testing, and stakeholder approval. Our sample program is designed to facilitate confident purchasing decisions with minimal financial risk.
We offer one evaluation unit per client at sample pricing. The sample White Solar Alarm is identical to production units in all respects — not a prototype or pre-production model. Sample pricing is quoted at production cost plus shipping. For clients who proceed with a bulk order exceeding 50 units within 90 days of sample delivery, we credit 100% of the sample product cost against the bulk order invoice (shipping costs remain non-creditable).
Sample orders are processed within 3-5 business days from payment confirmation. Units are individually tested and calibrated before dispatch. Delivery via express courier reaches Chile, Peru, Australia, Brazil, and South Africa within 5-7 business days. Each sample shipment includes a comprehensive evaluation checklist to help clients document performance against their specific site requirements.
For clients conducting extended field trials (30-90 days), we provide complimentary technical support including remote installation guidance via video conference, performance monitoring consultation, and data logging assistance. Our engineering team can customize flash patterns or siren tones for trial periods to match existing site safety protocols.
Tags: Solar Alarm Sample, Mining Equipment Trial, Industrial Safety Evaluation
Payment Terms, Settlement & Financial Procedures
Weihai Luxing Electronic Technology Co., Ltd. maintains transparent, internationally standard financial procedures that accommodate the procurement protocols of multinational mining corporations, government tenders, and private quarry operators alike.
Telegraphic Transfer (T/T): Our preferred method for orders of all sizes. Standard terms require 30% deposit upon order confirmation with proforma invoice, and 70% balance against copy of Bill of Lading (B/L) or prior to air freight dispatch. For established clients with satisfactory trade history, we offer open account terms of Net 30 or Net 60 days.
Letter of Credit (L/C): Accepted for orders exceeding USD 50,000. We work with irrevocable, confirmed Letters of Credit payable at sight through our banking partners (Bank of China, Industrial and Commercial Bank of China). L/C terms must align with UCP 600 standards.
Documentary Collection (D/P, D/A): Available for clients in jurisdictions with established banking relationships. D/P at sight terms provide security for both parties.
Quotations are typically provided in United States Dollars (USD) and remain valid for 60 days from issuance. For clients preferring Euro (EUR) or Australian Dollar (AUD) denomination, we can accommodate with exchange rate hedging provisions. Bulk order contracts spanning multiple shipments can include price-lock provisions protecting against raw material fluctuations for up to 12 months.
All exports from China are conducted with proper VAT rebate documentation. We provide official Value-Added Tax (VAT) invoices for Chinese tax purposes and commercial invoices for import customs clearance in destination countries. For clients requiring specific invoicing formats to match their enterprise resource planning (ERP) systems, our finance team can customize invoice layouts and coding structures.
Orders may be modified or cancelled without penalty within 7 days of deposit payment. After 7 days, if production has commenced, cancellations incur a 15% restocking and material allocation fee. In the rare event of product defects or shipping damage, we offer full replacement or refund at client discretion, provided claims are filed within 30 days of delivery with photographic documentation.
After-Sales Service, Warranty & Technical Support
Our commitment to client success extends far beyond the delivery of products. Weihai Luxing Electronic Technology Co., Ltd. operates a comprehensive after-sales support infrastructure designed to maximize equipment uptime, extend operational lifespan, and ensure continuous safety compliance.
Every White Solar Alarm is backed by a 24-month limited warranty covering manufacturing defects, material failures, and performance degradation outside published specifications. The warranty covers: solar panel power output degradation not exceeding 20% of rated capacity, battery failure to hold charge above 60% of rated capacity, LED strobe failure to illuminate, siren failure to produce rated sound pressure, and enclosure seal integrity breaches under normal operating conditions. Warranty claims require completion of our online RMA (Return Material Authorization) form with unit serial number and fault description.
For clients seeking additional protection, we offer 3-year and 5-year extended warranty packages. These packages include: annual preventive maintenance inspection checklists, priority replacement unit dispatch (shipped within 48 hours of claim approval), discounted spare parts pricing (battery packs, solar panels, LED modules), and quarterly performance report generation for fleet-managed installations.
Email Support: Dedicated English, Spanish, and Portuguese support teams respond within 24 hours to technical inquiries.
Video Technical Assistance: Real-time video conference support for installation troubleshooting, configuration changes, and diagnostic interpretation. Available Monday through Friday, 08:00-20:00 China Standard Time (GMT+8), with scheduled appointments accommodating Chile, Peru, Australian, Brazilian, and South African time zones.
Field Service Network: Through partnerships with industrial service providers in Santiago, Lima, Perth, São Paulo, and Johannesburg, we can arrange on-site technical support for large-scale deployments requiring commissioning assistance or fleet-wide maintenance programs.
We maintain a permanent inventory of critical spare parts at our Weihai facility and regional logistics hubs. Battery replacement packs, solar panel modules, LED driver circuits, siren elements, and mounting hardware are available for immediate dispatch. For out-of-warranty repairs, we offer flat-rate refurbishment services that restore units to factory specifications at approximately 40% of replacement cost.
Comprehensive user manuals, installation videos, maintenance checklists, and safety data sheets are available for download from our client portal. For major contracts, we provide on-site or virtual training sessions covering installation best practices, troubleshooting methodologies, and regulatory compliance documentation.
Certifications, Compliance & Quality Accreditations
Industrial safety equipment deployed in international mining operations must satisfy a complex matrix of regulatory requirements, industry standards, and client-specific quality mandates. The White Solar Alarm and Weihai Luxing Electronic Technology Co., Ltd. hold the following certifications and compliance attestations:
ISO 9001:2015 — Our quality management system is certified by SGS, covering the design, manufacture, and testing of solar-powered warning devices. Annual surveillance audits ensure continuous compliance with international quality standards.
CE Marking (EU Directive Compliance): The White Solar Alarm complies with the Electromagnetic Compatibility Directive (2014/30/EU) and the Low Voltage Directive (2014/35/EU) for the electrical components. CE marking ensures free movement within European Economic Area markets and is recognized by many South American and African regulatory bodies as evidence of product safety.
IEC 60529 (IP65): Independently tested and certified for dust-tight construction and water jet resistance by CQC (China Quality Certification Centre).
IEC 62262 (IK08): Impact resistance certification verifying protection against mechanical impacts in industrial environments.
UN38.3: Lithium battery transport safety certification required for air freight and ocean freight of lithium-ion products. Test reports include altitude simulation, thermal testing, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge protocols.
IECEx / ATEX Compliance: While the White Solar Alarm is not intrinsically safe for Zone 0/1 hazardous atmosphere deployment, it is designed and documented for safe installation in Zone 2 (non-hazardous) areas of mining and processing facilities. For clients requiring Zone 1 certification, we offer custom engineering services.
ANZEx (Australia/New Zealand): Compliance documentation available for Australian mining clients requiring Equipment Safety Scheme (ESS) alignment.
INMETRO (Brazil): For Brazilian imports, we provide the technical documentation required for INMETRO conformity assessment procedures, including translated Portuguese user manuals and safety declarations.
RoHS Directive (2011/65/EU): All electronic components and solder materials are free from lead, mercury, cadmium, hexavalent chromium, PBB, and PBDE restricted substances.
REACH Regulation (EC 1907/2006): Full material disclosure documentation available for clients requiring chemical substance registration verification.
WEEE Compliance: Product design facilitates end-of-life disassembly and material recovery. Battery packs are removable for specialized lithium recycling.
Tags: Certified Solar Alarm, IECEx Mining Equipment, IP65 Warning Device
Customer Feedback & Deployment Case Studies
The following testimonials and case studies represent actual feedback from mining safety professionals who have deployed the White Solar Alarm in operational environments. Names and specific site details have been adjusted where requested for confidentiality, but performance data and quotes reflect genuine client experiences.
Client: Major copper mining operation, Atacama Region, Chile
Deployment: 86 White Solar Alarms installed across three open pits
Challenge: Existing hardwired blast warning system required constant cable repair due to truck damage and bench movement, costing approximately $180,000 annually in maintenance and electrical crew overtime.
Solution: Complete replacement with solar-powered alarms mounted on existing lighting poles and dedicated warning posts. RF remote activation from central blasting control room.
Result: After 18 months of operation, the client reported zero blast warning system failures, elimination of cable maintenance costs, and 15% reduction in blast preparation time. The mine safety officer noted: "The white color makes these alarms visible from anywhere in the pit. Our truck operators see them from over a kilometer away, even through the dust after a blast. The solar charging works perfectly in the Atacama — we haven't touched a single unit for maintenance in over a year."
Client: Pilbara-based iron ore producer, Western Australia
Deployment: 42 units at critical haul road intersections and dump point approaches
Challenge: Intersection collisions between 240-ton haul trucks and light vehicles during dawn/dusk shift changes. Passive signage proved ineffective due to dust coating and driver complacency.
Solution: Solar alarms configured with rapid double-flash pattern activated by magnetic loop vehicle detectors. White housing selected specifically for contrast against red Pilbara soil.
Result: Near-miss incidents at equipped intersections decreased by 43% in the first 12 months. The site traffic coordinator stated: "These solar alarms have been a game-changer. The flash pattern cuts through the red dust haze like nothing else we've tried. Installation took one day per intersection — no trenching, no electrical permits, no shutdowns."
Client: Underground and open-cast platinum operation, Limpopo Province
Deployment: 24 units at muster points and along surface evacuation routes
Challenge: Need for reliable evacuation signaling independent of grid power, which can fail during electrical storms or load-shedding events common to South African infrastructure.
Solution: White Solar Alarms with GSM modules for remote activation from security control room. Battery autonomy ensures 7-day operation without sunlight.
Result: Successfully utilized during two full-site emergency drills and one actual seismic event. All personnel reached muster points within regulatory timeframes. Emergency response manager commented: "When the grid went down during the seismic event, our solar alarms were the only electronic systems still functioning on the surface. The white housing made them easy to locate even with smoke from the processing plant visible."
Client: Large-scale limestone quarry and processing facility, Minas Gerais
Deployment: 18 units along perimeter fence line with vibration sensors
Challenge: Unauthorized entry during night hours resulting in equipment theft and safety violations. Electrical infrastructure unavailable along 3.2 km fence line traversing rugged terrain.
Solution: Solar alarms with intrusion-activated strobe and siren, supplemented by continuous low-level illumination mode for CCTV enhancement.
Result: Unauthorized incursions eliminated within 60 days of deployment. Security team reported: "The combination of the bright white housing and the intense strobe creates an immediate psychological deterrent. Intruders don't expect an active alarm system in a remote quarry. The solar aspect means we didn't spend a fortune running power lines through the forest."
Tags: White Solar Alarm, Mining Customer Review, Solar Safety Device Testimonial
Frequently Asked Questions (FAQ)
The LiFePO4 battery provides 5-7 days of continuous operation without any solar charging. In practice, even during heavy overcast conditions, the monocrystalline panel generates 10-25% of rated capacity from diffuse light, extending autonomy significantly. For sites with extreme seasonal cloud cover, we offer an optional external AC trickle charger or larger battery pack upgrades.
At 120 dB, the siren is audible through standard hearing protection and heavy equipment enclosures at distances up to 200 meters. For applications requiring greater penetration, we offer dual-siren configurations or lower-frequency air-horn attachments that produce sound signatures more resistant to attenuation.
Counterintuitively, yes. While white surfaces show dirt more readily than dark colors, this visibility of dirt actually encourages cleaning maintenance. More importantly, the smooth polycarbonate surface with nano-hydrophobic coating allows rain and spray washing to remove dust effectively. Even with moderate dust accumulation, white maintains higher reflectivity and visibility than dark colors under identical soiling conditions.
With proper installation and minimal maintenance, the White Solar Alarm delivers 8-10 years of reliable service. The solar panel carries a 20-year performance warranty (80% output retention). The LiFePO4 battery typically requires replacement after 5-7 years depending on discharge depth and temperature exposure. All other electronic components are rated for 10+ year operational lifespans.
Yes. While white is our standard and recommended color for visibility optimization, we can produce housings in corporate colors (orange, yellow, blue, green) for orders exceeding 100 units. We also offer OEM branding with client logos molded into the housing or applied as permanent decals. Custom flash patterns, siren tones, and RF frequencies are available for bulk orders.
LiFePO4 batteries are classified as Class 9 miscellaneous dangerous goods for transport. We handle all UN38.3 testing documentation, MSDS preparation, and dangerous goods declarations. For sea freight, this adds no significant delay. For air freight, some carriers restrict lithium battery shipments to specific schedules, potentially adding 2-3 days to transit time. We coordinate with IATA-certified freight forwarders to ensure compliant, timely delivery.
Absolutely. The RF remote system supports up to 50 alarm units on a single frequency channel with simultaneous activation. For larger sites, we offer multi-channel transmitters and repeater stations that extend coverage across vast mine leases. GSM-enabled units can be grouped via SMS commands for zone-specific or site-wide activation.
Minimal. We recommend quarterly visual inspections to verify physical integrity, clean the solar panel surface if heavy dust accumulation is visible (usually just rainfall suffices), and test activation functionality. Annual maintenance should include checking mounting bolt torque, inspecting gasket seals, and verifying battery voltage with a multimeter. No specialized tools or training are required beyond basic safety awareness.
Tags: Solar Alarm FAQ, Mining Safety Questions, White Solar Alarm Support
Product Tags & SEO Keywords
Tags: White Solar Alarm, Solar-Powered Warning Device, Mining Safety Equipment, Industrial Alarm System, Solar Warning Light, Explosion Proof Alarm, Heavy Duty Solar Alarm, Open Pit Mining Safety, Quarry Warning System, Solar LED Strobe Light, Remote Controlled Alarm, IP65 Solar Alarm, LiFePO4 Battery Alarm, Construction Site Safety, Haul Road Traffic Alert
About Weihai Luxing Electronic Technology Co., Ltd.
Weihai Luxing Electronic Technology Co., Ltd. is a leading Chinese manufacturer specializing in industrial safety equipment, solar-powered warning systems, and mining communication devices. Headquartered in Weihai, Shandong Province — a hub of advanced manufacturing excellence — we serve mining corporations, quarry operators, construction firms, and industrial facilities across more than 40 countries. Our commitment to innovation, quality, and customer success has established Luxing as a trusted partner for safety-critical equipment in the world's most demanding environments. From the copper belts of Chile and Peru to the iron ore fields of Australia, from the platinum mines of South Africa to the limestone quarries of Brazil, Weihai Luxing Electronic Technology Co., Ltd. stands ready to protect your people, your assets, and your operational continuity.
Contact us today to discuss your White Solar Alarm requirements, request a sample for evaluation, or schedule a technical consultation with our mining safety engineering team.
This website uses cookies to ensure you get the best experience on our website.
中文
WhatsApp
Phone
